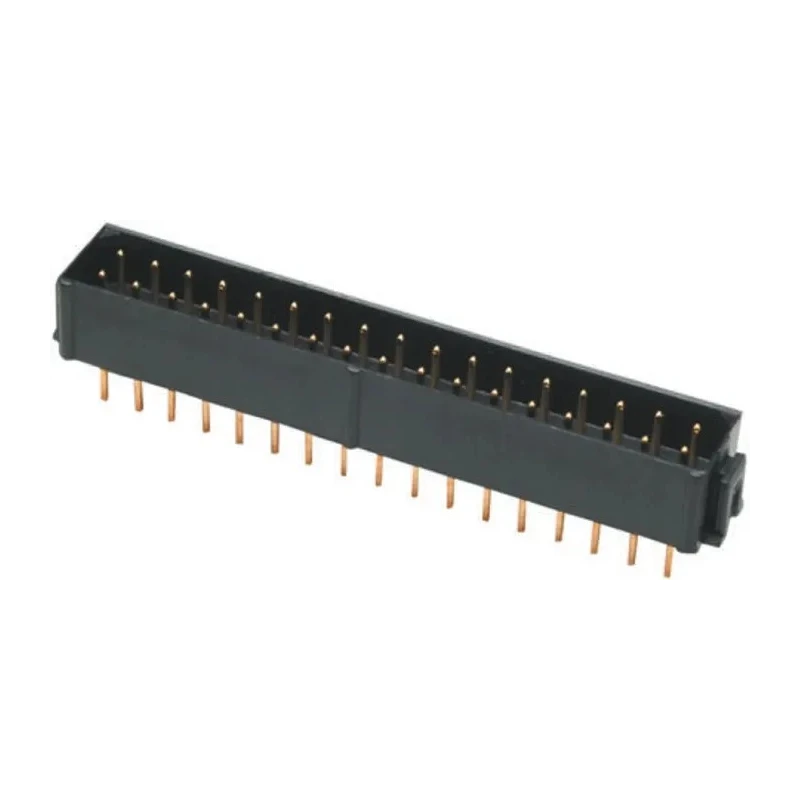

HARWIN Datamate L-Tek Series Straight Through Hole PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded M80-8542042
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M80-8542042 |
| Mount Type | Through Hole |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | Datamate L-Tek |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
Key Features
- The connector supports a current rating of 3 amperes for reliable power delivery.
- Housing is made from robust Polyphenylene Sulphide material ensuring durability.
- Features gold-plated phosphor bronze male contacts for excellent conductivity and corrosion resistance.
- Designed for through-hole mount with solder termination and a 3 mm tail pin length.
- Operates reliably within temperature ranges from -55°C up to 125°C.
- Ideal for board-to-board and wire-to-board applications requiring high mechanical stability.
- The shrouded design provides polarization and protection against damage and misalignment.
- Meets high reliability standards suitable for harsh industrial and electronic environments.
Product Description
HARWIN M80-8542042 Datamate L-Tek Series Straight Through Hole PCB Header is a high-quality board-to-board and wire-to-board connector designed for demanding electronic applications. It features 20 male contacts arranged in 2 rows with a 2 mm pitch to facilitate compact yet reliable connections. The housing is manufactured from Polyphenylene Sulphide, offering excellent mechanical strength and chemical resistance, suitable for harsh operating conditions.
The connector utilizes gold-plated phosphor bronze contacts for superior electrical performance and corrosion resistance. Its shrouded design offers polarization to prevent incorrect mating, enhancing system reliability. The through-hole mounting and solder termination provide a secure and stable installation on PCBs. With a 3 mm tail pin length, it ensures ease of assembly and robust mechanical fixing.
Rated for 3 amperes current and operational temperatures from -55°C to 125°C, this connector is particularly suitable for industrial, manufacturing, automotive, and telecommunications equipment where reliability under vibration, shock, and environmental stress is critical. The M80-8542042 model is part of the broader Datamate series, known for durability and extended mating cycles due to the innovative four-finger Beryllium Copper contact design.
The connector system offers high reliability for critical applications in electronics and industrial domains. Shrouded and polarized housing prevents incorrect mating and physical damage during assembly. Gold plating on contacts enhances conductivity and longevity.
Supports solder termination for secure PCB mounting. Suitable for demanding environments including harsh industrial conditions. Complies with relevant military and electronic standards, ensuring quality assurance. Manufactured in the United Kingdom ensuring high quality and traceability.
This HARWIN Datamate L-Tek Series PCB Header is recommended for designers and engineers seeking robust and dependable connectors for board-level interconnections. Explore more electronic components in EnvMart’s Electronics Components catalog for your design and production needs.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HARWIN Datamate L-Tek Series PCB header has a current rating of 3 amperes, ensuring reliable power delivery in various applications.
This model operates reliably within a temperature range of -55°C to 125°C, making it suitable for demanding environments.
The housing is made from Polyphenylene Sulphide, while the contacts are gold-plated phosphor bronze, providing excellent conductivity and corrosion resistance.
This connector features 20 male contacts arranged in 2 rows with a 2 mm pitch, facilitating compact and reliable connections.
It utilizes solder termination, which provides a secure and stable installation on printed circuit boards (PCBs).
Yes, the connector is designed for both board-to-board and wire-to-board applications, offering high mechanical stability.
The tail pin length of this model is 3 mm, ensuring ease of assembly and robust mechanical fixing.
The connector has a straight orientation, which is typical for through-hole mounting applications.
This connector is manufactured in the United Kingdom, ensuring high quality and traceability.
The contacts are gold-plated, which enhances conductivity and provides longevity against corrosion.
The M80-8542042 is part of the Datamate L-Tek series, known for its durability and extended mating cycles.
