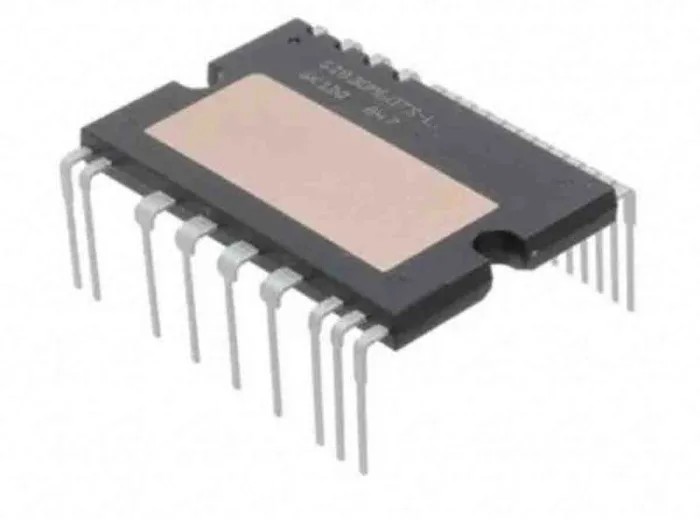

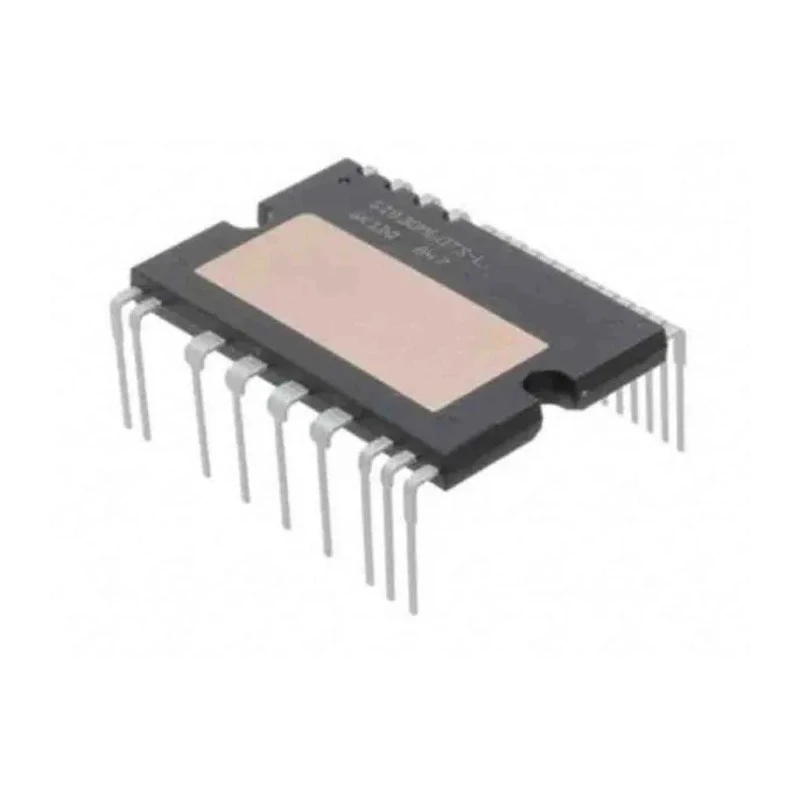

STMicroelectronics MOSFET Gate Driver 10 A 26-Pin 400 V SDIP STIB1060DM2T-L

The STMicroelectronics STIB1060DM2T-L MOSFET Gate Driver is a high-performance power management integrated circuit designed to deliver 10 amperes of output current in a robust 26-pin SDIP package. Operating up to a maximum supply voltage of 400 volts and supporting a broad temperature range from -40°C to 125°C, this component ensures reliable performance in harsh industrial and commercial environments.

Its fast switching characteristics include a rise time of 560 nanoseconds and a fall time of 1.04 milliseconds, enabling efficient control of MOSFET devices in power conversion and motor drive circuits. The device employs a single MOSFET driver configuration mounted through hole for easy installation and durability.

Measuring 38.5 mm in length, 24.5 mm in width, and 14.5 mm in height, the compact SDIP package supports dense PCB layouts while maintaining excellent thermal management.

This gate driver is ideal for applications in power management ICs, semiconductor devices, and electronic components where controlled MOSFET driving is essential. It is widely used in industrial power supplies, inverter circuits, and HVAC motor controls.

Delivers a 10 ampere output current suitable for demanding applications. Encased in a 26-pin Small Dual Inline Package (SDIP) for through-hole mounting. Supports a maximum supply voltage of 400 volts ensuring robust performance.

Features fast rise time of 560 nanoseconds and fall time of 1.04 milliseconds. Operates reliably from a minimum supply voltage of -0.3 volts with temperature tolerance from -40°C to 125°C. Designed with a single MOSFET driver maximizing integration and compact size.

Package dimensions are 38.5 mm length, 24.5 mm width, and 14.5 mm height. Suitable for industrial power management and motor control applications. Mount type is through hole, enabling secure PCB assembly. Explore the STMicroelectronics range of MOSFET drivers at EnvMart for high-quality semiconductor components suitable for your industrial and electronic design needs.
