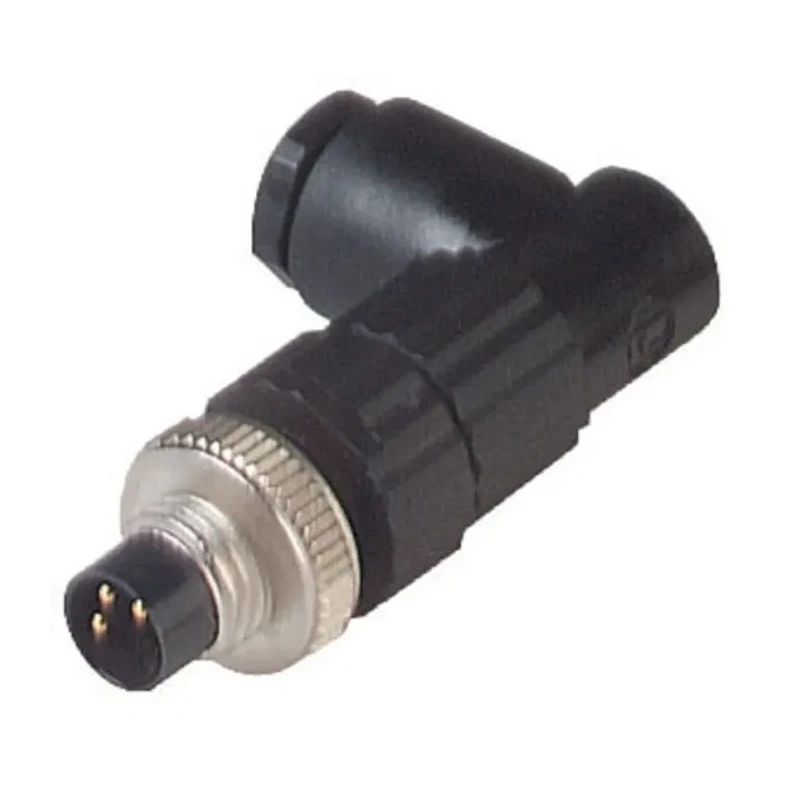

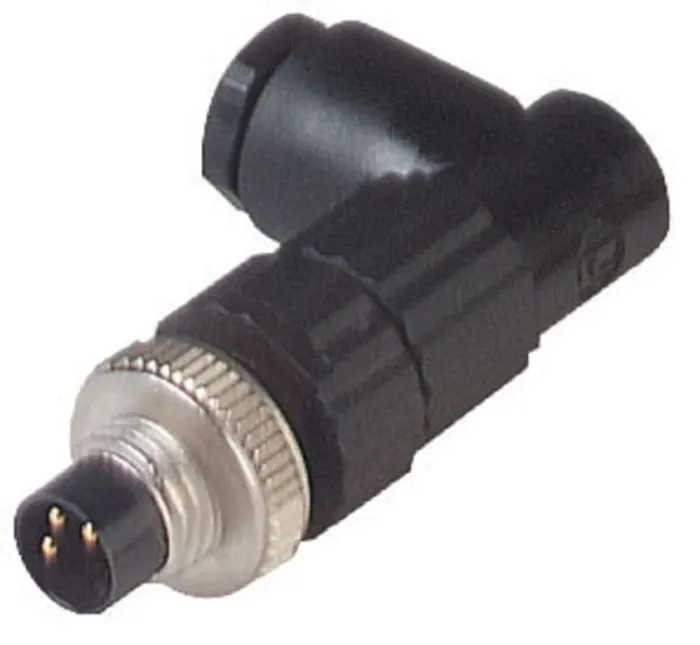

Hirschmann Circular Connector, 3 Contacts, Cable Mount, M8 Size, Plug, Male, IP67, E Series, 60V, 3A 933408100 ELWIST 3008 V
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | Hirschmann |
| Orientation | Right Angle |
| Current | 3A |
| Model | 933408100 ELWIST 3008 V |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | E |
| Termination Type | IDC |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Pole Format | 3 |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | M8 |
| Mating Type | Threaded |
| Connector Size | M8 |
| Plug/Socket | Plug |
Key Features
- Designed for industrial environments requiring reliable multi-circuit connections.
- Gold-plated brass contacts ensure corrosion resistance and long-lasting electrical performance.
- Polymer housing provides durable insulation and mechanical protection.
- Rated for 60V voltage and 3A current, suitable for low-voltage automation applications.
- Incorporates integrated clamping cage providing strain relief to avoid cable twisting.
- Right-angle orientation with threaded mating for secure connector locking.
- Operates reliably in temperature range from -25°C to 70°C.
- Termination uses insulation displacement contact (IDC) technology for easy cable connection without stripping.
Product Description
Hirschmann 933408100 ELWIST 3008 V is an industrial-grade circular connector designed for robust and reliable electrical connections in automation and control systems. Featuring a cable mount with an M8 sized plug and male gold-plated brass contacts, this connector delivers superior corrosion resistance and electrical conductivity. It is IP67 rated, ensuring dust-tight and waterproof protection suitable for harsh industrial environments.
The connector supports a 3-contact configuration with a 60V operating voltage and a 3A current rating, ideal for multi-circuit control wiring. Its innovative integrated clamping cage offers strain relief to prevent damage from cable bending and twisting.
The housing is made of durable polymer materials providing mechanical robustness while offering protection against electric shocks due to PVC and PETP insulation. This connector employs IDC termination technology, allowing quick and secure cable termination without stripping the wire insulation, simplifying installation and maintenance tasks.
Operating temperature range from -25°C to 70°C makes the ELWIST 3008 V suitable for demanding industrial applications including automotive, material handling equipment, and medical facility wiring systems. The right-angle orientation and threaded mating type ensure a stable and secure connection, preventing loosening under vibration or mechanical stress.
Additionally, the flame-resistant construction meets safety requirements by limiting fire spread in case of ignition, enhancing workplace safety. Designed for industrial automation and control circuit wiring. Gold-plated brass contacts enhance durability and contact reliability.
Durable polymer housing with strain relief clamp reduces cable damage. Rated IP67 for protection against dust and water ingress. 60V, 3A electrical ratings support low voltage applications. Right-angle, threaded mating connector ensures robust assembly.
Wide temperature range operation from -25°C to 70°C. IDC termination type simplifies cable installation. Flame-resistant design enhances safety in industrial environments. Manufactured in Germany to high industrial standards.
This Hirschmann circular connector fits Industrial Circular Connector applications requiring reliable multi-contact cable plugs with robust environmental protection. It is well-suited for automotive wiring, material handling devices, medical equipment cabling, and other industrial automation systems.
Explore more options and related Hirschmann circular connectors at EnvMart to find quality connectors tailored to your application needs.
