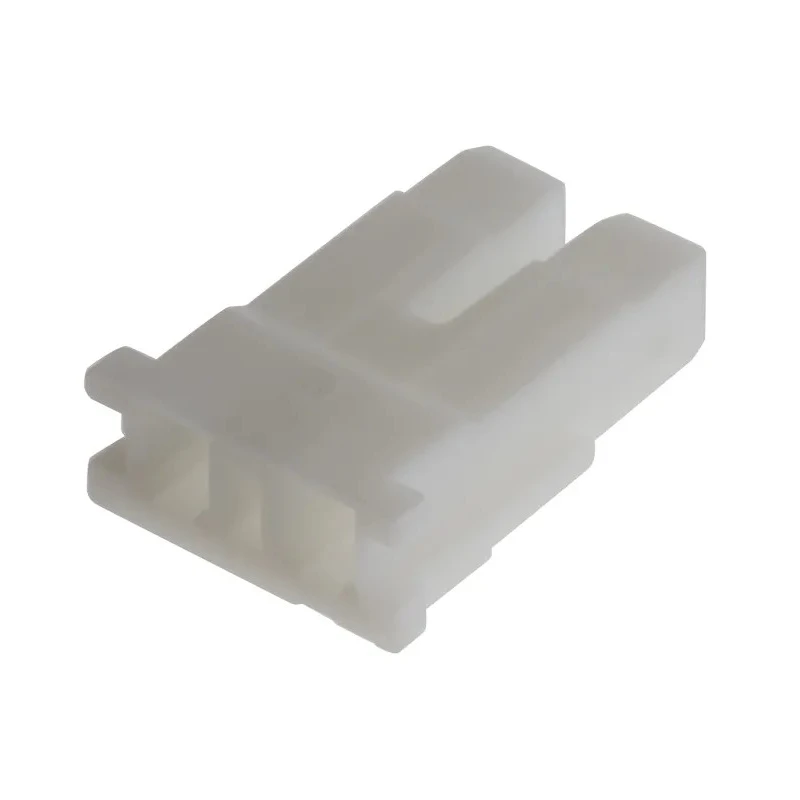

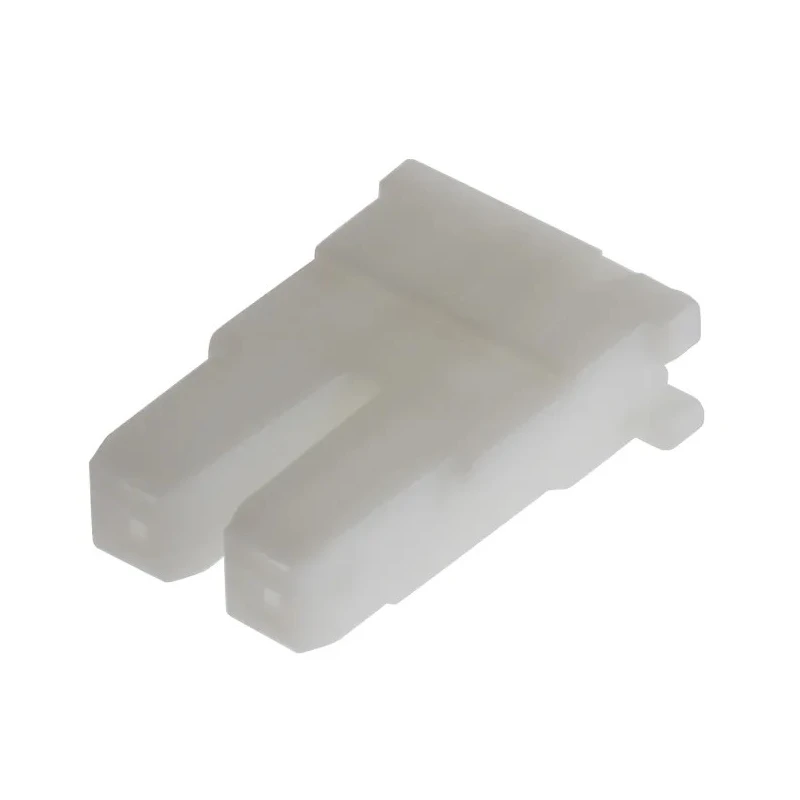

JST BHSR Female Connector Housing 3.5 mm Pitch 2 Way 1 Row Straight BHSR-02VS-1(N)(P)



Category Connector Housing Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Orientation	Straight
Length	7.5mm
Model	BHSR-02VS-1(N)(P)
Width	3.2mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	BHSR
Number of Rows	1
Pitch	3.5mm
For Use With	BHS Connectors
Number of Contacts	2
Connector Gender	Female

Key Features

Connector housing designed for use with BHS connectors.
Constructed from durable polybutylene terephthalate material.
Low profile design enables space-saving installations.
Housing lock functions as a polarizing device to ensure correct mating.
Crimp style contacts allow easy insertion with minimal force.
Suitable for flexible wires insulated with silicone rubber.
Connector dimensions are 7.5 mm length and 3.2 mm width.
Offers high withstanding voltage for stable performance.

Product Description

JST BHSR-02VS-1(N)(P) Female Connector Housing is a robust electronics component designed for cable mount applications, featuring 2 contacts with a precise 3.5 mm pitch and a single row straight orientation. Made from polybutylene terephthalate, this connector housing offers a low profile solution ideal for compact assemblies, particularly for connecting liquid crystal display backlight lamps to starters.

The housing's locking mechanism also serves as a polarizing device, providing secure connections with proper orientation. Its crimp-style contacts can be inserted with minimal force, making it well suited for flexible wires insulated with silicone rubber. Although no formal standards or approvals are specified, the connector ensures reliable performance with a high withstanding voltage rating.

Key dimensions include a length of 7.5 mm and width of 3.2 mm, making it compatible with JST BHS connectors. This electronic component is widely used in electronics manufacturing, assembly lines, and specialized wiring applications where precise, durable connectors are required.

Connector housing built for cable mount applications to mate with BHS connectors. Durable polybutylene terephthalate construction supports reliable electrical contacts. Low profile design suits compact electronic assemblies.

Housing lock doubles as a polarizing feature to prevent misconnection. Crimp style contact insertion simplifies wiring with flexible silicone-insulated cables. Precise 3.5 mm pitch with 2 contacts in a single row for standardized connections.

Dimensions of 7.5 mm length and 3.2 mm width ensure compatibility. High voltage withstand capability enhances connector reliability.

This JST connector housing is essential for various electronics, electrical, manufacturing, and industrial applications requiring precise, secure wire connections. It is suitable for assembly in laboratory equipment, consumer electronics, and industrial control systems.
