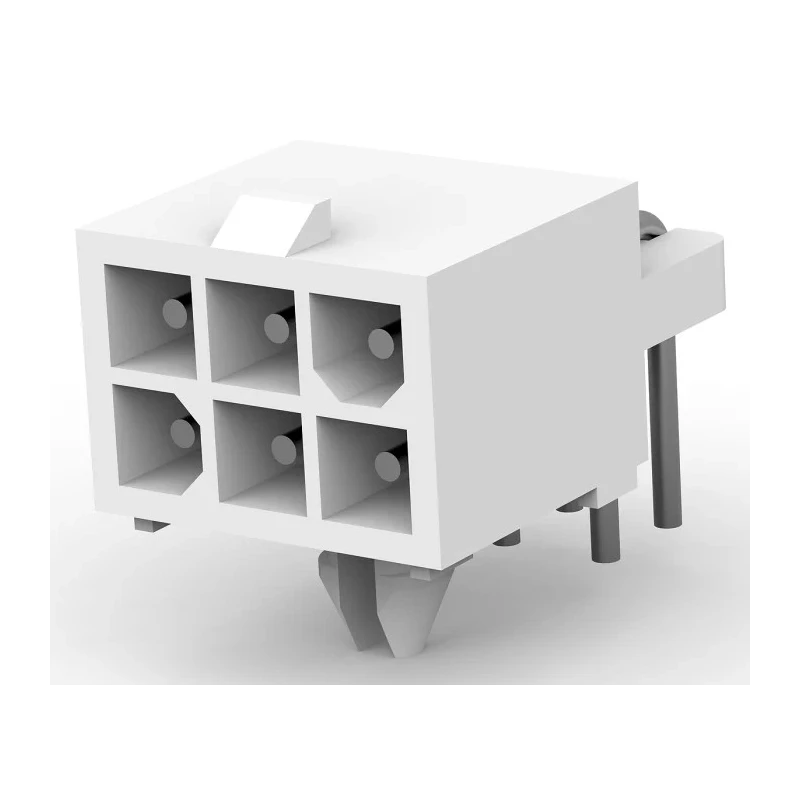

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Constructed with nylon housing providing a shrouded design for secure connections.
- Designed with a right angle orientation suitable for wire-to-board applications.
- Features brass contacts plated with tin for reliable conductivity.
- Offers operating temperature range from -55°C to 105°C for versatile environment use.
- Utilizes a solder termination type with tail pin length of 3.69 mm for robust board mounting.
- Incorporates positive locking latch mechanism and board locks ensuring secure fitment.
- Compatible with Mini-Universal MATE-N-LOK plug housings for mating connectors.
Product Description
TE Connectivity 1-770969-0 Mini-Universal MATE-N-LOK Series right angle through hole PCB header features 6 male contacts arranged in 2 rows with a pitch of 4.14 mm. Designed for wire-to-board connector systems, this PCB header is constructed with a white UL94V-0 nylon housing that is shrouded to protect contacts and provide secure mating. The brass contacts are tin plated to ensure reliable electrical performance and solder termination allows strong mounting on printed circuit boards.
This right angle connector supports a wide operating temperature range from -55°C to 105°C, making it suitable for diverse industrial, electronic, HVAC, and manufacturing applications. The series includes positive locking latch mechanisms and integrated board locks to facilitate secure connections and PCB retention. Compatible Mini-Universal MATE-N-LOK plug housings (using socket contacts) complement this header for full wire-to-board interconnection solutions.
With a current rating of 9.5 amps and voltage rated up to 600 volts, this connector meets robust power and signal transmission requirements without additional approvals or certifications. Its 3.69 mm tail pin length and through hole mount type enable ease of assembly and durability in industrial environments.
Constructed with nylon housing providing a shrouded design for secure connections. Designed with a right angle orientation suitable for wire-to-board applications. Features brass contacts plated with tin for reliable conductivity.
Offers operating temperature range from -55°C to 105°C for versatile environment use. Utilizes a solder termination type with tail pin length of 3.69 mm for robust board mounting. Incorporates positive locking latch mechanism and board locks ensuring secure fitment.
Compatible with Mini-Universal MATE-N-LOK plug housings for mating connectors. Rated voltage capacity of 600 volts and current rating of 9.5 amps.
This product is ideal for use in industrial electronics, manufacturing equipment, power distribution, and HVAC systems requiring reliable wire-to-board interconnections. Explore the Mini-Universal MATE-N-LOK series for comprehensive connector solutions on EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 600 volts and a current rating of 9.5 amps, suitable for robust power and signal transmission applications.
It features a pitch of 4.14 mm and includes 6 male contacts arranged in 2 rows.
This connector utilizes a solder termination type, which facilitates strong mounting on printed circuit boards.
The housing is made of nylon, and the contacts are made of brass with a tin plating for reliable conductivity.
It incorporates a positive locking latch mechanism and board locks to ensure secure fitment and retention on the PCB.
The tail pin length is 3.69 mm, designed for robust board mounting.
This model has a right angle orientation, making it suitable for wire-to-board applications.
The country of origin for this PCB header is India.
The shrouded design protects the contacts and provides secure mating, enhancing connection reliability.
It is ideal for use in industrial electronics, manufacturing equipment, power distribution, and HVAC systems requiring reliable wire-to-board interconnections.
