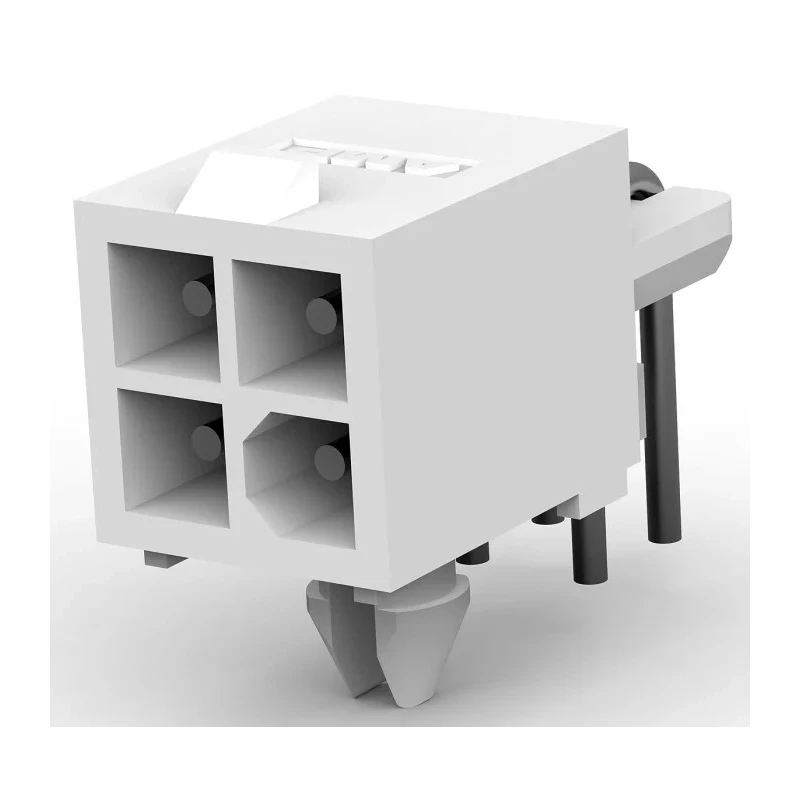

TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 4 Contacts, 4.14 mm Pitch 1-770968-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.14mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.69mm |
Key Features
- Shrouded design for enhanced connector protection.
- Constructed with durable nylon housing ensuring UL94V-0 flammability rating.
- Supports current up to 9.5A and voltage rating of 600V.
- Male brass contacts plated with tin for reliable conductivity.
- Operates reliably from -55°C to 105°C temperature ranges.
- Features positive locking latch and board locks for secure PCB retention.
- Through hole mount type suitable for PCB assembly.
- Tail pin length of 3.69 mm to facilitate solder termination.
Product Description
TE Connectivity 1-770968-0 Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header is designed for reliable wire-to-board electrical connections in industrial, commercial, and electronic component manufacturing applications. This PCB header features 4 male contacts arranged in two rows with a 4.14 mm pitch, enabling compact and secure interfacing on circuit boards.
The connector utilizes a UL94V-0 rated nylon housing ensuring impressive resistance to heat and flammability, making it suitable for demanding environments. Brass contact material with tin plating ensures low contact resistance and corrosion resistance. This component supports a maximum current of 9.5A and voltage up to 600V, accommodating a wide range of electronic circuits.
Its right angle orientation and through hole mounting style facilitate easy PCB assembly and robust mechanical stability. The positive locking latch mechanism and integrated board locks ensure secure mating and retention on the PCB, minimizing disconnect risks during operation or vibration.
Operating temperature ranges from -55°C to 105°C, providing durability in various climatic conditions. The tail pin length of 3.69 mm enables effective soldering for permanent installation.
Shrouded connector for added protection and safety. Wire-to-board connector system with secure latching mechanism. Reliable electrical performance with tin-plated brass contacts. Suitable for industrial electronics, manufacturing, and PCB assembly uses.
Designed for compliance with industrial environment demands. Compact right angle form factor for space-saving PCB layouts. Durable nylon housing ensures long operational life.
This Mini-Universal MATE-N-LOK connector by TE Connectivity is ideal for applications requiring dependable PCB connections with robust mechanical and electrical reliability. Explore more electronic components and connectors at EnvMart to enhance your manufacturing and assembly projects.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 9.5A.
It has a voltage rating of 600V.
The operating temperature range is from -55°C to 105°C.
This model features 4 male contacts arranged in two rows.
The pitch size of the contacts is 4.14 mm.
It uses a through hole mounting type suitable for PCB assembly.
The housing is constructed from durable nylon material.
The tail pin length is 3.69 mm, facilitating solder termination.
It utilizes solder termination for secure connections.
Yes, it features a positive locking latch and integrated board locks for secure retention.
The contacts are made of brass and are plated with tin for reliable conductivity.
The country of origin for this model is India.
