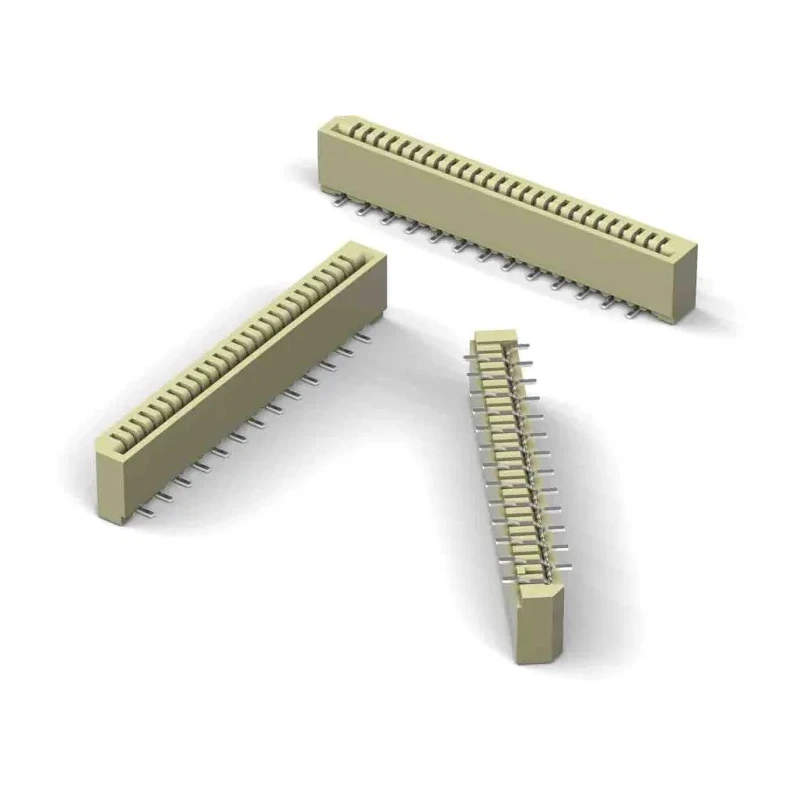

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 22 Contacts, 1 mm Pitch, 1 Row, Shrouded 686122188822

Wurth Elektronik 686122188822 Vertical Surface PCB Header is engineered for high-reliability wire-to-board electrical connections in electronics assemblies. It features a single row of 22 contacts with a 1 mm pitch and a shrouded design to ensure secure mating and prevent damage to pins during handling or assembly.

The connector housing is made of Liquid Crystal Polymer, providing excellent mechanical strength and chemical resistance, suitable for demanding industrial and commercial environments. Contacts are fabricated from Phosphor Bronze, a highly conductive and resilient material, finished with 2.032 μm of Tin over 1.27 μm Nickel plating to optimize corrosion resistance and electrical conductivity.

This PCB header supports a current rating of 1 Ampere and can operate safely at voltages up to 125 Volts AC. It is designed for vertical orientation and surface mount technology (SMT) mounting style, facilitating compact PCB layouts and ease of assembly. The operating temperature range extends from -25°C to 85°C, accommodating applications in various environmental conditions including industrial, commercial electronics, and laboratory equipment.

The contact type is stamped, ensuring consistent and precise electrical contact points for enhanced performance. Termination is by solder, providing reliable mechanical and electrical connection to the printed circuit board.

The product fully complies with RoHS environmental regulations, eliminating hazardous substances and supporting eco-friendly manufacturing practices.

This PCB header is ideally suited for electronics manufacturing, industrial automation systems, communication devices, and other applications requiring dependable wire-to-board connectors with precise pitch and high contact counts.

Constructed with Liquid Crystal Polymer housing for durability. Phosphor Bronze contacts plated with Tin over Nickel for corrosion resistance. Designed for vertical orientation and surface mount installation. Rated for 1A current carrying capacity and 125V operating voltage.

Operating temperature range from -25°C to 85°C for versatile applications. Connector system is wire-to-board with stamped contact type for reliable performance. Complies with RoHS standards ensuring environmental safety.

Termination type is solder for secure PCB connections. Browse the Electronics Components section on EnvMart for more Wurth Elektronik PCB connectors and related products to support your electronics and industrial needs.
