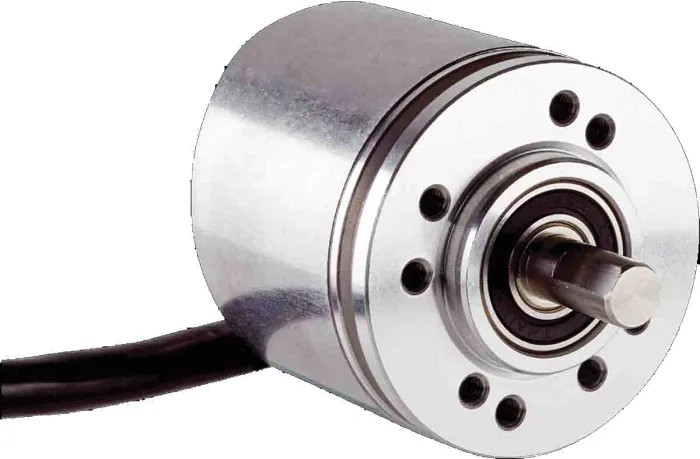

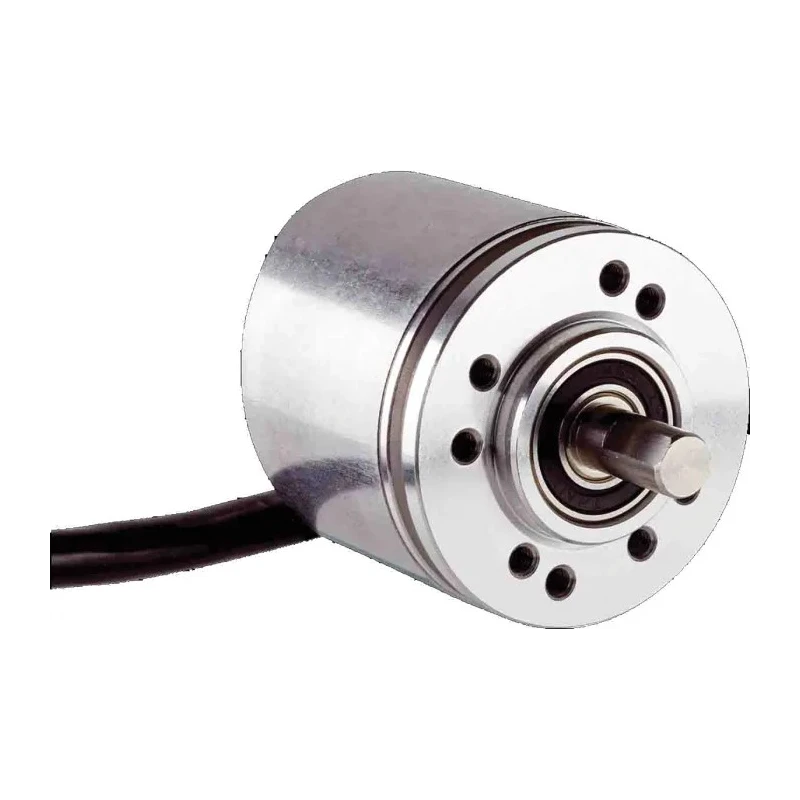

SICK DBS36 Core Series Incremental Encoder 30V DC, 1024 PPR, HTL Signal, Solid Shaft 6mm DBS36

Free Delivery in India | Lowest Global Shipping Charges

SICK DBS36 Core Series Incremental Encoder 30V DC, 1024 PPR, HTL Signal, Solid Shaft 6mm DBS36

Name: SICK DBS36 Core Series Incremental Encoder 30V DC, 1024 PPR, HTL Signal, Solid Shaft 6mm DBS36
Brand: SICK
SKU: 163758
Price: 207.06 USD
Availability: InStock



Category Incremental Encoder Brand SICK Condition New

Specifications

Country of Origin	Malaysia
Brand	SICK
Model	DBS36
IP Rating	IP65
Mount Type	Shaft, Flange
Series	DBS36 Core
Overall Width	36mm
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Shaft Diameter	6mm
Overall height	37mm
Shaft Type	Solid
Interface Type	Incremental
Pulses per Revolution	1024ppr
Standards/Approvals	EN 61000-6-2 and EN 61000-6-3 (class A)
Maximum Supply Voltage	30V dc
Overall Depth	35.5mm
Encoder Technology	Incremental
Maximum Revolutions	6000rpm
Output Signal Type	HTL

Key Features

Operates within a temperature range of -20°C to 85°C.
Features a solid 6 mm shaft with flange mount for easy installation.
Delivers HTL output signal type for high noise immunity.
Supports maximum speed of 6000 rpm with maximum supply voltage of 30V DC.
Designed with IP65-rated housing for protection against dust and water ingress.
Includes a 1.5 m cable allowing axial or radial routing as per installation requirements.
Conforms to EN 61000-6-2 and EN 61000-6-3 standards for electromagnetic compatibility.
Manufactured in Malaysia ensuring high quality and durability.

Product Description

The SICK DBS36 Core Series Incremental Encoder model DBS36 is designed for precise speed and position measurement in industrial and automation applications. It operates at 30V DC supply voltage, providing a high resolution of 1024 pulses per revolution (PPR) with an HTL output signal for reliable signal transmission in noisy environments.

Its robust solid shaft of 6 mm diameter and flange mount allows easy replacement or retrofit of existing encoder systems. The encoder supports a wide operating temperature range from -20°C to 85°C, making it suitable for harsh industrial environments. Additionally, the protective IP65 rated housing ensures protection against dust, water jets, and external contaminants, ensuring long-term reliability.

The device can handle up to 6000 revolutions per minute, making it ideal for fast moving machinery. EMI and EMC compliance per EN 61000-6-2 and EN 61000-6-3 Class A standards support operation without interference with surrounding equipment.

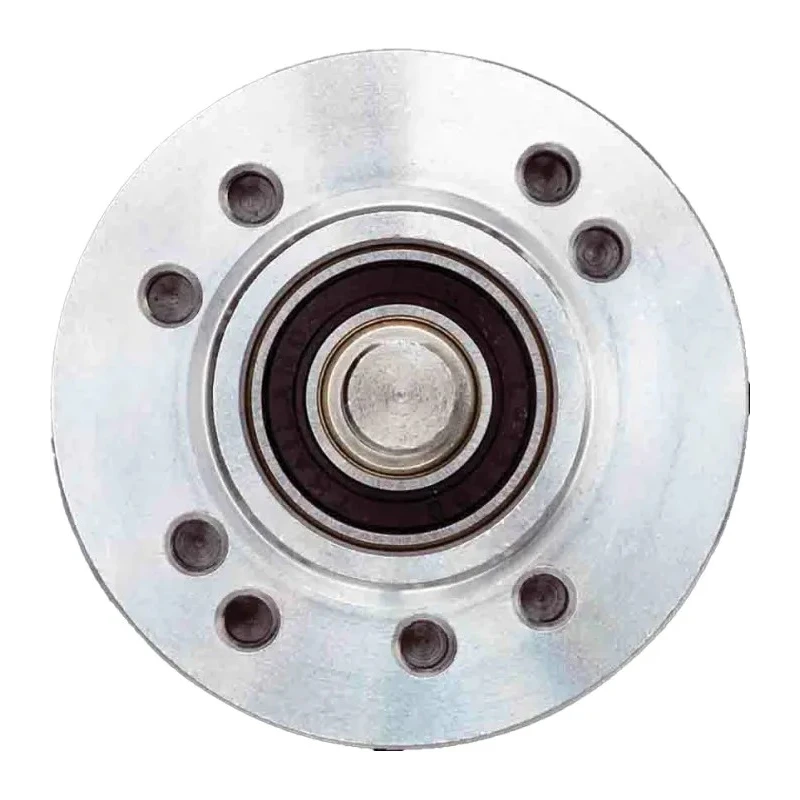

The unit comes with a 1.5 meter cable, which can be routed axially or radially, adapting to installation constraints. Its compact dimensions (Depth: 35.5 mm, Height: 37 mm, Width: 36 mm) and multiple fixing hole patterns offer versatility in mounting options.

Operates between -20°C to 85°C temperature range. IP65 protection rating ensures dust and water resistance. Solid 6 mm shaft diameter with flange mount design. Max speed of 6000 rpm with 1024 pulses per revolution. HTL signal output type for enhanced noise immunity.

Compliance with EN 61000-6-2 and EN 61000-6-3 standards. Supply voltage range from 7 to 30 V DC with operating current approx. 50 mA.

This encoder is widely used in industrial automation, motion control, manufacturing equipment, and robotics, providing accurate rotational position feedback for improved process control and efficiency.
