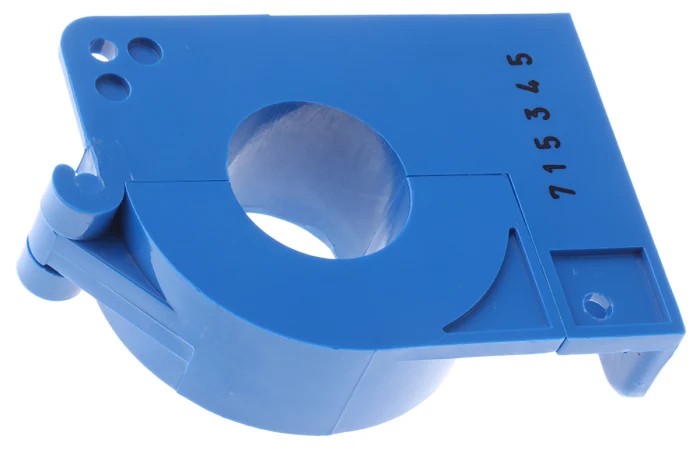

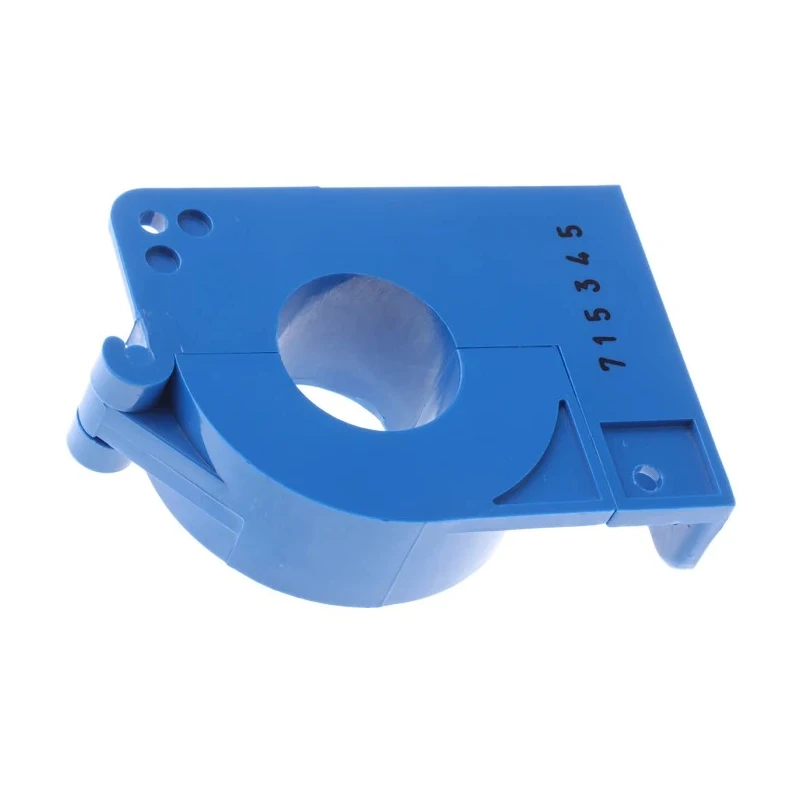

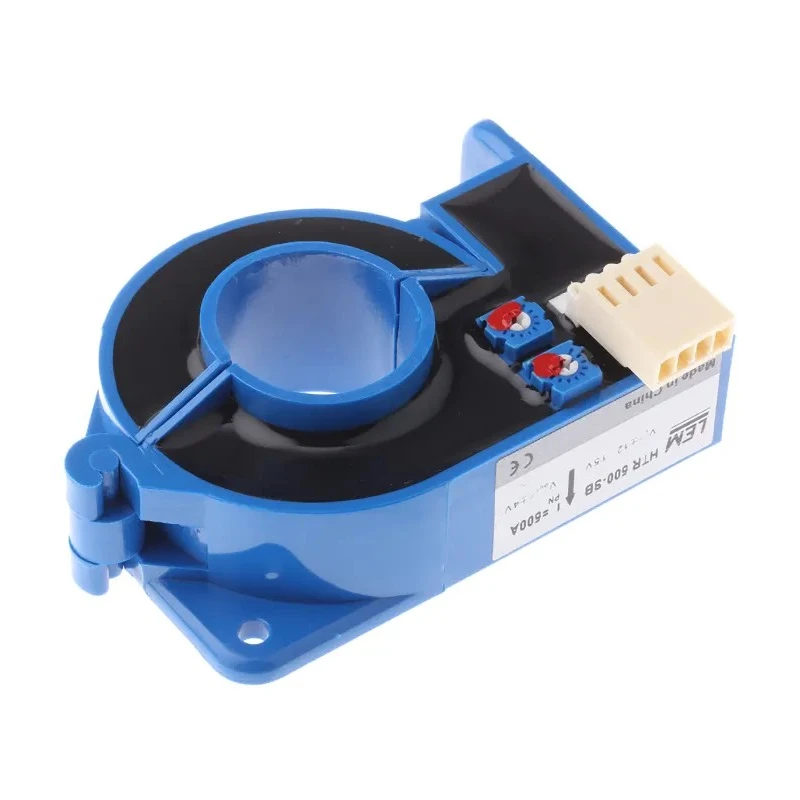

LEM HTR 500-SB Current Transformer 500A 12V, 15V 21mm Bore

LEM HTR 500-SB Current Transformer is engineered to provide high-precision measurement of currents up to 500 A with galvanic isolation through a compact circular split core design. It supports supply voltages of 12 V and 15 V and features a 21 mm bore diameter, making it adaptable for a wide range of electrical and industrial applications.

The device connects securely using the Molex 5045-04/AG connector, ensuring stable and reliable signal transmission. It is designed for panel mounting, suitable for compact and efficient installation in control panels and process control systems.

Operating within a temperature range of -10°C to 70°C, this current transformer maintains performance and durability in diverse environments. Its compliance with UL 94-V0, EN 50178, and IEC 61010-1 standards guarantees safety, quality, and international regulatory compliance.

With a maximum operating frequency of 10 kHz, the HTR 500-SB is capable of accurately measuring direct, alternating, and pulse currents, supporting complex monitoring and control tasks in industrial, automation, laboratory, and electrical engineering sectors.

Weighing 80 grams and manufactured in China, this transformer combines lightweight design with robust performance. It is ideal for use in high-precision measurement in industrial and automation systems where reliable current sensing is essential.

Compact circular split core design with galvanic insulation for accurate current measurement. Connects via Molex 5045-04/AG terminal for secure and reliable electrical connection. Operational temperature range from -10°C to 70°C ensuring durability.

Panel mount type suitable for various installation setups. Compliant with UL 94-V0, EN 50178, and IEC 61010-1 safety standards. Maximum operating frequency of 10 kHz for versatile current measurement. Lightweight at 80 grams for easy handling and installation.

Manufactured in China maintaining high manufacturing standards.
