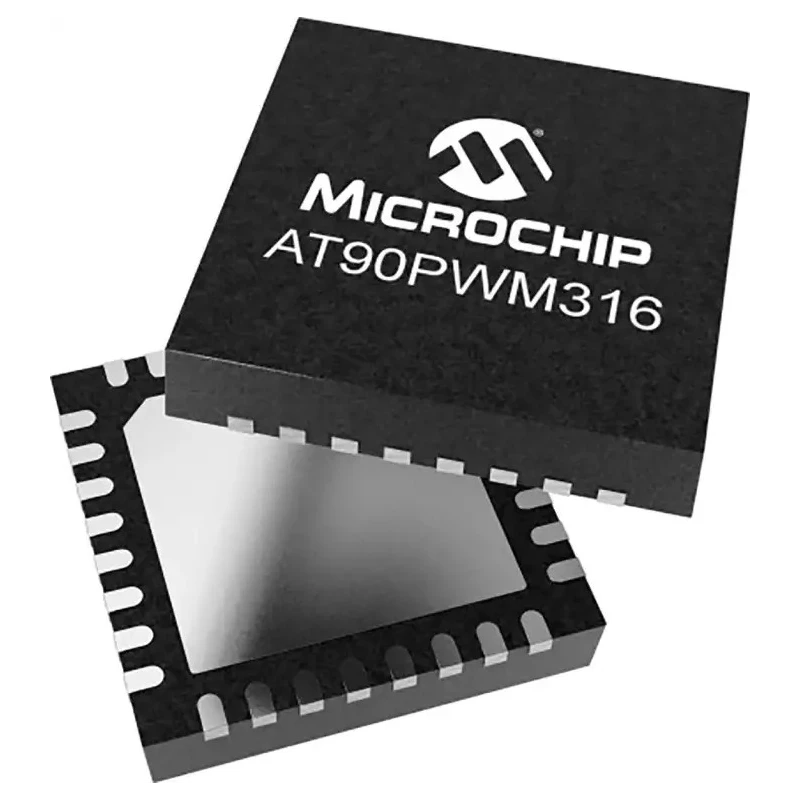

Microchip 8 bit AVR Microcontroller 20 MHz 8kB FLASH 32-Pin VQFN AT90PWM316-16MU

Microchip AT90PWM316-16MU is an 8 bit AVR microcontroller featuring a 20 MHz maximum clock frequency and 8kB FLASH memory housed in a 32-Pin VQFN surface-mount package. It is designed for a wide range of industrial and embedded applications requiring efficient RISC processing architecture with low power consumption.

The device operates within a supply voltage range of 2.7V to 5.5V and provides 1kB SRAM and 512 bytes EEPROM to support complex embedded systems. Its 27 programmable I/O pins offer flexible interfacing options. The microcontroller incorporates multiple timers, including one 8-bit and one 16-bit timer with prescaler, compare, and capture modes for precise control tasks.

High-resolution peripherals include an 11-channel 10-bit ADC with programmable gain differential inputs and a 10-bit DAC, facilitating analog signal processing. Communication interfaces consist of SPI and UART with DALI mode, enabling robust serial communications in embedded systems.

Advanced power management includes four selectable power saving modes - Idle, Power-down, ADC Noise Reduction, and Standby - to optimize energy efficiency in battery-powered or energy-conscious environments. On-chip debug support and a programmable watchdog timer with internal oscillator contribute to reliable system operation.

The compact 7mm by 7mm by 1mm VQFN package suits space-constrained applications in automotive, industrial control, consumer electronics, and communication devices. Operating temperature ranges from -40°C to 85°C ensure suitability for harsh environments.

The AVR enhanced RISC architecture delivers efficient processing with 32 general-purpose working registers. Operates on a voltage range from 2.7V to 5.5V suitable for various low voltage applications. Includes 1kB RAM, 512 bytes EEPROM, and 27 programmable I/O ports for versatile peripheral control.

Features comprehensive peripherals including 11-channel 10-bit ADC, two 8-bit and 16-bit timers, and a 10-bit DAC. Provides multiple power-saving modes including Idle, Power-down, ADC Noise Reduction, and Standby for energy efficiency.

Embedded SPI and UART interfaces ensure effective communication and control capabilities. Robust operating temperature range from -40°C to 85°C supports industrial and automotive applications. Compact 7mm x 7mm x 1mm VQFN surface-mount package enables space-saving PCB designs.
