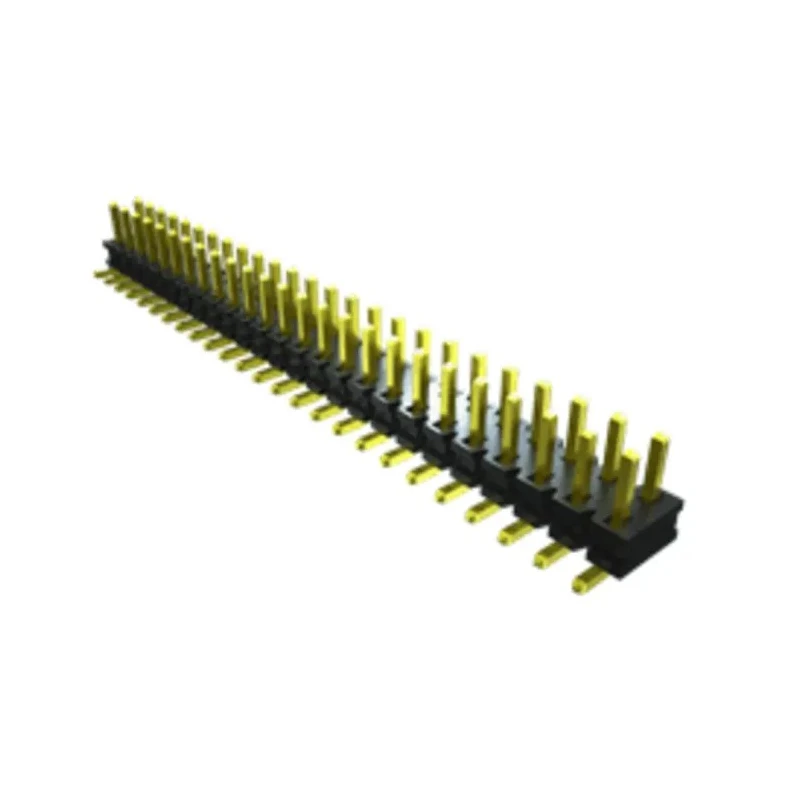

Samtec TMMH Series Straight Through Hole Pin Header 20 Contact 2 mm Pitch 2 Row Unshrouded TMMH-110-01-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.1A |
| Model | TMMH-110-01-F-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMMH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
Key Features
- The pin header features 20 gold-plated phosphor bronze contacts for reliable electrical performance.
- Housing is made from black liquid crystal polymer ensuring durability and high-temperature resistance.
- Supports a maximum current of 5.1 A with a voltage rating of 281 V.
- Designed for through hole mounting with male contact gender and solder termination.
- Operating temperature range spans from -55°C to 125°C, suitable for demanding environments.
- Unshrouded style makes it versatile for various PCB connector applications.
- Compliant with RoHS requirements, ensuring environmental safety.
- The TMMH series is known for flexible and reliable mechanical and electrical connections.
Product Description
Samtec TMMH-110-01-F-D is a high-quality straight through hole pin header designed for board-to-board connector systems. Featuring 20 male contacts arranged in 2 rows with a 2 mm pitch, this unshrouded pin header is ideal for electronic assembly applications requiring robust and reliable connections.
The housing is constructed using black liquid crystal polymer, providing excellent insulation and mechanical integrity even under elevated temperatures and mechanical stress. Each contact is crafted from phosphor bronze and plated with gold, assuring superior conductivity and corrosion resistance.
This pin header supports a continuous current of up to 5.1 amperes and has a voltage rating of 281 volts, making it suitable for a wide range of electronic equipment and power supply circuits. Mounting is via through hole, allowing a secure and permanent installation on printed circuit boards.
The termination type is solder, ensuring firm electrical and mechanical bonds with the PCB pads. Its operating temperature range of -55°C to 125°C allows usage in harsh operating environments, including industrial and commercial electronics.
The pin header features 20 gold-plated phosphor bronze contacts for reliable electrical performance. Housing is made from black liquid crystal polymer ensuring durability and high-temperature resistance. Supports a maximum current of 5.1 A with a voltage rating of 281 V.
Designed for through hole mounting with male contact gender and solder termination. Operating temperature range spans from -55°C to 125°C, suitable for demanding environments. Unshrouded style makes it versatile for various PCB connector applications.
Compliant with RoHS requirements, ensuring environmental safety. The TMMH series is known for flexible and reliable mechanical and electrical connections.
This product is widely used in industrial electronics, telecommunications, computing, and consumer electronics for establishing compact and dependable board-level connections. It meets industry standards and provides a cost-effective yet high-performance solution for PCB assembly.
Explore more from the Samtec TMMH series and related PCB Headers in the Electronics Components category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header supports a maximum current of 5.1 A.
The voltage rating for this model is 281 V.
It operates within a temperature range of -55°C to 125°C.
This pin header uses solder termination for secure connections.
It features 20 contacts arranged in 2 rows.
The housing is made from black liquid crystal polymer, providing excellent insulation and mechanical integrity.
The contacts have a pitch of 2 mm.
Yes, it is compliant with RoHS requirements, ensuring environmental safety.
The contacts are made from phosphor bronze and plated with gold for superior conductivity.
It supports a board-to-board connector system.
The contacts are male gender.
The country of origin for this product is India.
