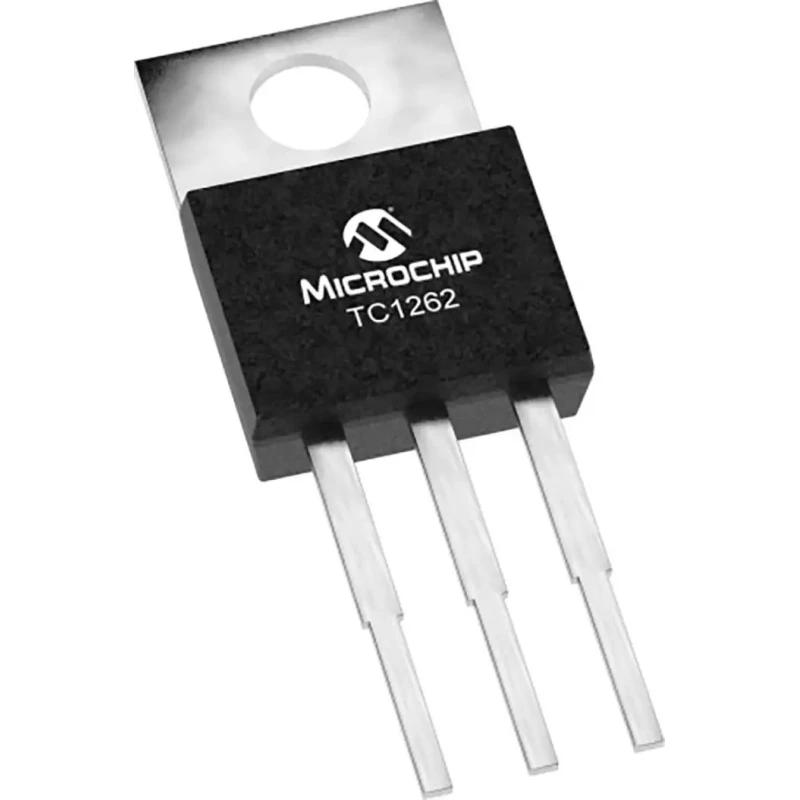

Microchip 1-Channel Low Dropout Voltage Regulator 3.3V 500mA TO-220 3-Pin TC1262-3.3VAB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | TC1262-3.3VAB |
| Mount Type | Through Hole |
| Output type | Fixed |
| Output Current | 500mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 1 |
| Maximum Input Voltage | 6.5V |
| Output Voltage | 3.3V |
| Line Regulation | 0.35 %/V |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- Operates with a low dropout voltage for efficient power regulation.
- Delivers a maximum output current of 500mA suitable for battery-operated systems.
- Features ultra low noise operation for sensitive applications.
- Includes over temperature and over current protection for enhanced safety.
- Wide operating temperature range from -40°C to 125°C.
- Compact 3-pin TO-220 through-hole mounting package.
- High output voltage accuracy with ±0.5% tolerance.
- Typical dropout voltage of 350mV at full load to extend battery life.
Product Description
Microchip TC1262-3.3VAB is a fixed output, high accuracy (±0.5%) CMOS low dropout voltage regulator designed specifically for battery-operated and power-sensitive applications. Offering a fixed 3.3V output voltage and a maximum current of 500mA, this 1-channel regulator ensures efficient and stable power delivery in electronic circuits.
Its CMOS construction minimizes wasted ground current to approximately 80μA at full load, significantly improving battery life in portable devices. The very low dropout voltage of typically 350mV at maximum current enables efficient regulation even when the input voltage is close to the output voltage.
The regulator provides ultra low noise operation and rapid response to sudden load changes, making it suitable for sensitive electronic components. Incorporating both over temperature and over current protection, it enhances system reliability and safeguards downstream components.
Operating over a temperature range of -40°C to 125°C and supporting input voltages from 2.7V up to 6.5V, it offers versatility across various environments. The TO-220 3-pin through-hole package facilitates easy mounting and cooling in industrial, consumer electronics, and embedded systems.
Common applications include power management in portable instrumentation, communication devices, and embedded system designs requiring stable and efficient 3.3V power rails. Operates with a low dropout voltage for efficient power regulation.
Delivers a maximum output current of 500mA suitable for battery-operated systems. Features ultra low noise operation for sensitive applications. Includes over temperature and over current protection for enhanced safety. Wide operating temperature range from -40°C to 125°C.
Compact 3-pin TO-220 through-hole mounting package. High output voltage accuracy with ±0.5% tolerance. Typical dropout voltage of 350mV at full load to extend battery life. Explore Microchip's range of power management ICs and Voltage Regulators on EnvMart for robust and reliable solutions tailored to electronics manufacturing and development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is fixed at 3.3V.
It delivers a maximum output current of 500mA.
The typical dropout voltage at full load is 350mV.
It operates over a wide temperature range from -40°C to 125°C.
This model comes in a compact TO-220 3-pin through-hole package.
It supports input voltages ranging from 2.7V to 6.5V.
It includes over temperature and over current protection for enhanced safety.
The output voltage accuracy is ±0.5%.
The line regulation is specified at 0.35 %/V.
It is a CMOS low dropout voltage regulator.
Common applications include power management in portable instrumentation, communication devices, and embedded systems requiring stable 3.3V power rails.
The country of origin for this model is India.
