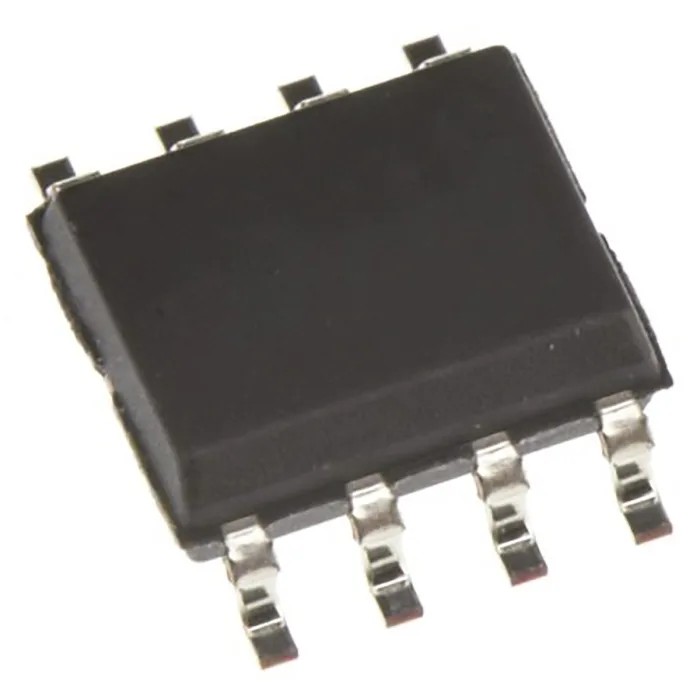

STMicroelectronics Voltage Regulator 24V SO 8-Pin L78L15ACD13TR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Regulators STMicroelectronics L78L15ACD13TR, Voltage Regulator 24V SO 8-Pin RS S |
| Brand | STMicroelectronics |
| Height | 1.5mm |
| Length | 5mm |
| Model | L78L15ACD13TR |
| Width | 4mm |
| Mount Type | Surface |
| Series | L78 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Polarity | Positive |
| Maximum Input Voltage | 24V |
| Quiescent Current | 6mA |
| Minimum Input Voltage | 3.3V |
| Pin Count | 8 |
Key Features
- This voltage regulator operates with a maximum input voltage of 24V.
- It has a quiescent current of 6mA ensuring low power consumption.
- The device includes internal current limiting and thermal shutdown for protection.
- No external components are required for operation, simplifying circuit design.
- Suitable for fixed voltage regulation in electronic circuits, including power management ICs.
- The package dimensions are 5mm length, 4mm width, and 1.5mm height.
- The device supports a continuous output current up to 100mA with proper heatsinking.
- It operates reliably up to a maximum temperature of 125°C.
Product Description
STMicroelectronics L78L15ACD13TR is a three-terminal positive voltage regulator designed for fixed voltage regulation applications. Packaged in a small outline (SO) 8-pin surface mount package, it delivers a stable 24V output voltage with low quiescent current of 6mA. It incorporates internal current limiting and thermal shutdown capabilities, protecting the device from overload and overheating conditions, thus enhancing reliability in electronic circuits.
This device can supply up to 100mA of output current when used with an adequate heat sink, making it well suited for local or on-card voltage regulation to minimize noise and distribution problems in power management systems. Its compact size of 5mm length, 4mm width, and 1.5mm height facilitates integration in space-constrained designs. The L78L15ACD13TR supports a wide input voltage range from 3.3V to a maximum of 24V and operates effectively up to 125°C ambient temperature.
Its positive polarity and surface mount design allow easy assembly on printed circuit boards. The absence of required external components simplifies the overall system design. Typical applications include use in power management ICs, consumer electronics, and industrial control equipment. The device is manufactured in China and adheres to industrial quality standards but does not declare specific certifications or approvals.
This voltage regulator has a maximum input voltage of 24V ensuring wide application coverage. Internal thermal shutdown protects the device from overheating. Current limiting feature enhances device and circuit protection.
Compact SO 8-pin surface mount package fits small PCB footprints. Low quiescent current guarantees energy-efficient operation. Maximum operating temperature rating of 125°C supports harsh environments. Output current capability up to 100mA with appropriate heatsink.
Surface mount mount type facilitates automated PCB assembly. Positive polarity design matches standard circuit requirements. Manufactured in China with consistent quality assurance. Explore more Voltage Regulators and power management ICs at EnvMart to support your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this voltage regulator is 24V.
This model can supply up to 100mA of output current when used with an adequate heat sink.
The package dimensions are 5mm in length, 4mm in width, and 1.5mm in height.
The quiescent current of this voltage regulator is 6mA, ensuring low power consumption.
It operates reliably up to a maximum temperature of 125°C.
No, it does not require external components for operation, simplifying circuit design.
It comes in a small outline (SO) 8-pin surface mount package.
The minimum input voltage for this voltage regulator is 3.3V.
It is suitable for fixed voltage regulation in electronic circuits, including power management ICs and consumer electronics.
It includes internal current limiting and thermal shutdown capabilities to protect against overload and overheating.
The polarity of this voltage regulator is positive, matching standard circuit requirements.
This voltage regulator is manufactured in China.
