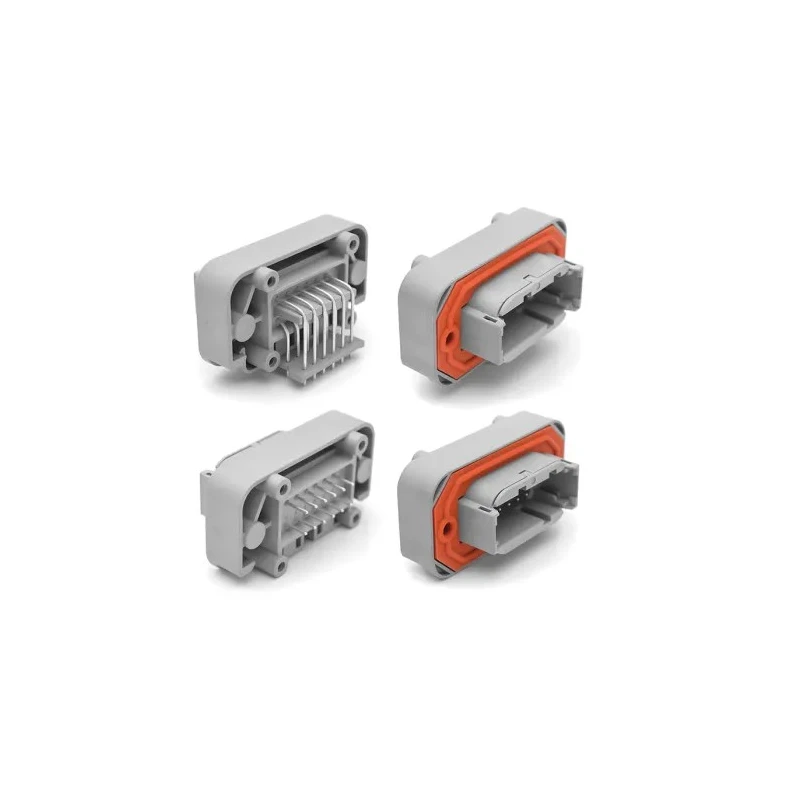

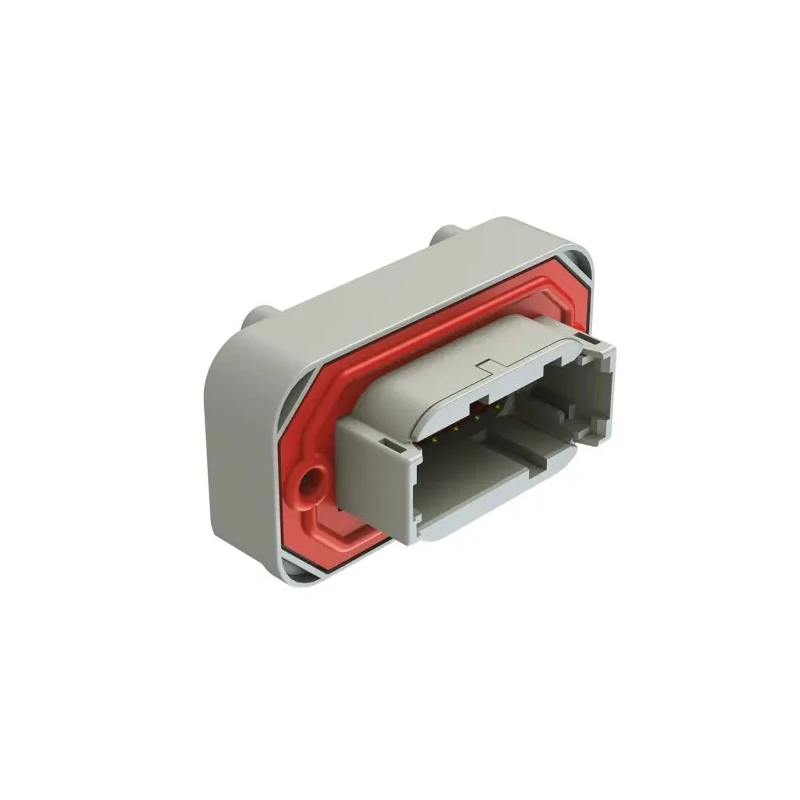

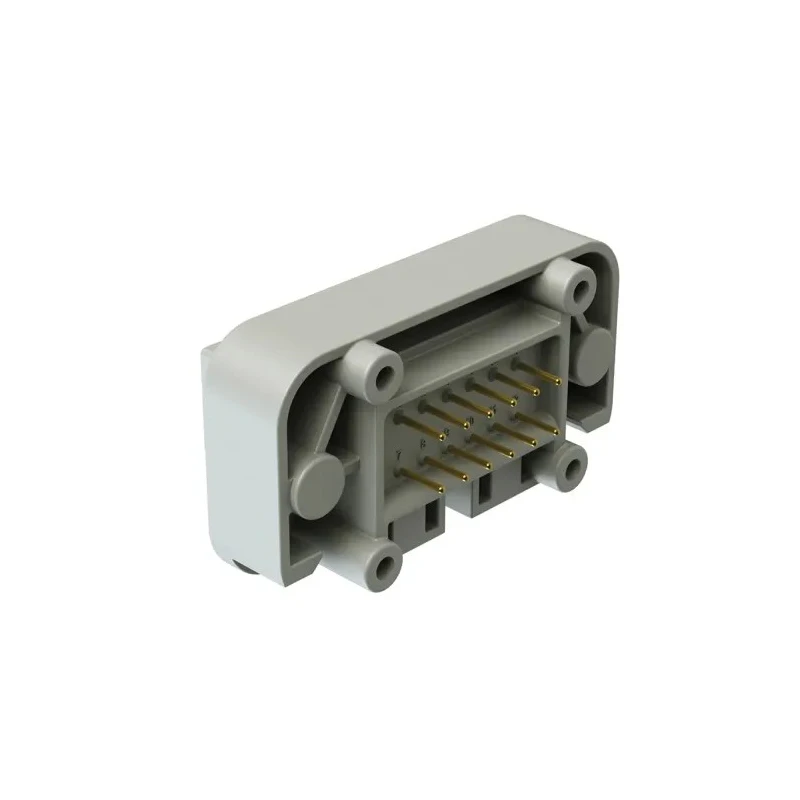

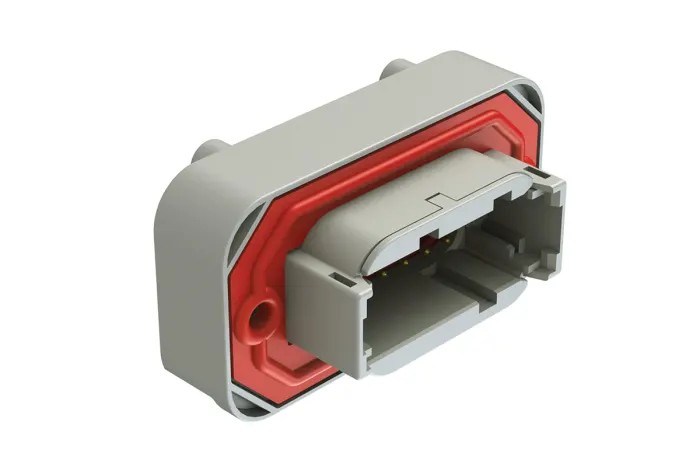

Amphenol Industrial Automotive Connector Male Grey Flange 12 Way Solder Termination ATM15-12PA-BM01

Amphenol Industrial ATM15-12PA-BM01 automotive connector is a high-quality, male gender connector designed with a grey thermoplastic flange housing and gold plated copper alloy contacts. It features 12 contacts arranged in two rows, terminated with solder for robust and secure electrical connections. The flange mount type permits stable fastening in assemblies.

This connector is rated at 7.5A current capacity and offers an IP67 ingress protection rating, ensuring reliability in sealed environments exposed to dust and moisture. The operating temperature range from -55°C to 125°C suits usage in automotive, heavy equipment, industrial, and off-road applications where rugged durability is required.

The compact design with dimensions of 61 x 33.1 x 30.2 mm enables integration into limited spaces while maintaining performance. As part of the Amphenol AT series, this connector supports power and signal connectivity and is compatible with other industry-standard mating connectors.

Typical applications include automotive electrical systems, HVAC, data acquisition, farming implementation, boating, and other harsh environment uses where sealed, reliable wire-to-board connections are essential.

This connector features a grey thermoplastic housing with gold plated copper alloy contacts. It provides 12 contacts arranged in 2 rows with a flange mount type for secure installation. The connector has a current rating of 7.5A and offers IP67 protection against dust and water ingress.

Suitable for harsh environments, it withstands temperatures from -55°C to 125°C making it ideal for automotive and industrial applications. The contact design uses solder termination and the connector is male gender type.

Compact dimensions measure 61mm width, 33.1mm height, and 30.2mm depth for low-profile integration. This component is part of the AT series and does not include a cord. Explore additional Amphenol Industrial Automotive Connectors and components in the EnvMart catalog for diverse industrial and transportation applications.
