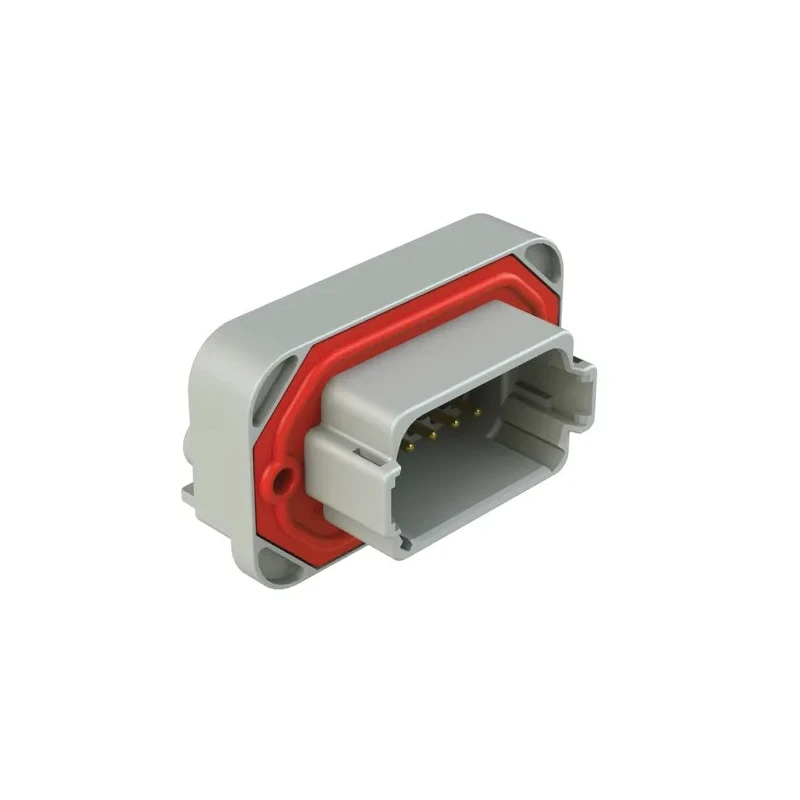

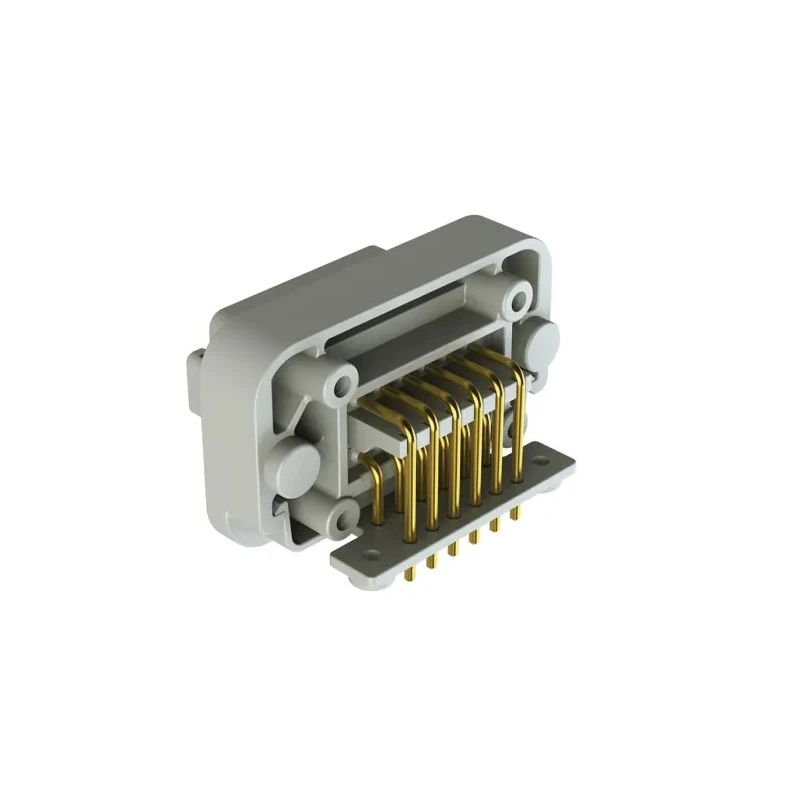

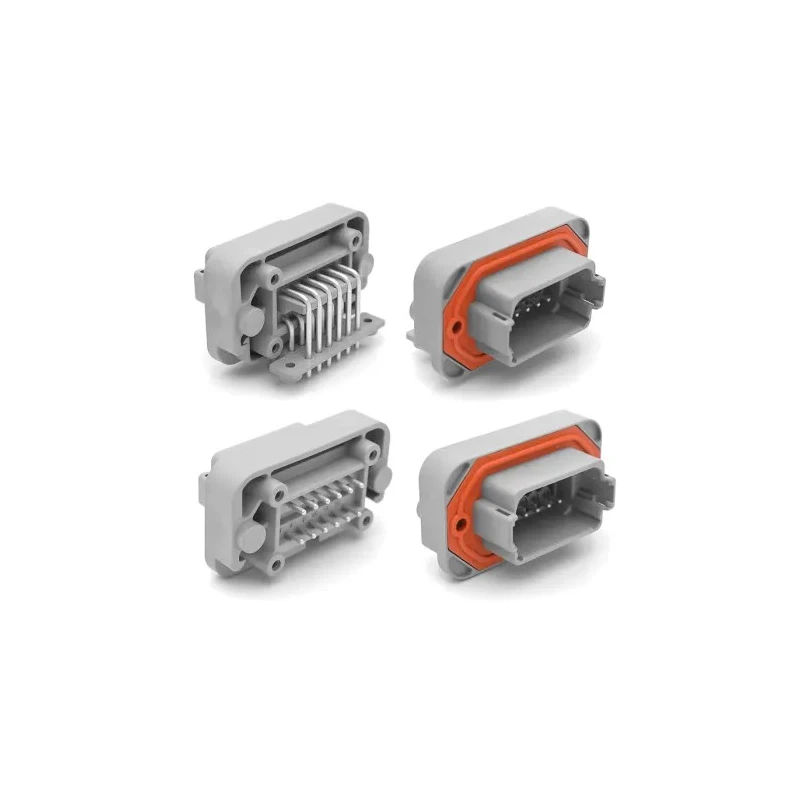

Amphenol Industrial AT Automotive Connector Male Grey Flange 12 Way Solder Termination AT13-12PA-BM01
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13A |
| Height | 35.3mm |
| Model | AT13-12PA-BM01 |
| Depth | 39.5mm |
| IP Rating | IP67 |
| Width | 59.2mm |
| Gender | Male |
| Mount Type | Flange |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Contact Plating | Gold Plated |
| Number of Contacts | 12 |
Key Features
- Features 12 contacts with gold plated copper alloy contacts for superior conductivity.
- Flange mount type with grey thermoplastic housing ensuring secure installation.
- Rated for 13A current with IP67 protection against dust and water ingress.
- Operates reliably in temperatures from -55°C to 125°C.
- Male gender with 2 rows of contacts compatible with AT series connectors.
- Designed for use in harsh environments including heavy equipment, transportation, and industrial applications.
- Gold plating on contacts enhances corrosion resistance and longevity.
Product Description
Amphenol Industrial AT13-12PA-BM01 is a male automotive connector featuring a grey thermoplastic flange housing and 12 gold plated copper alloy contacts. This connector is designed for reliable solder termination and flange mounting in rugged industrial environments.
With a current rating of 13A and IP67 ingress protection, it is suited for use in heavy equipment, transportation systems, off-road vehicles, HVAC systems, data acquisition, and farming implementations. The compact dimensions (59.2mm width, 35.3mm height, 39.5mm depth) and robust construction enable it to withstand temperatures ranging from -55°C up to 125°C.
The AT13-12PA-BM01 connector is part of the BoardLock™ AT13/15 series, known for its compact, durable design and compatibility with other industry standard mating connectors. Available in a flanged design with a 90° right angle or 180° straight pin orientation, this connector provides dependable power and signal connectivity in sealed and harsh environments.
12 gold plated copper alloy contacts for excellent conductivity. Thermoplastic housing offering durability and environmental resistance. Rated IP67 for dust-tight and waterproof protection. Wide operating temperature range from -55°C to 125°C ensuring performance under extreme conditions.
Flange mount type for secure attachment. Suitable for automotive, industrial, and heavy equipment applications. Compatible with A Series components and BoardLock™ system parts.
This connector supports robust connections in harsh and demanding applications including power and signal transmission, HVAC systems, farming equipment, and transportation. It is an ideal choice for industrial professionals seeking a reliable, high-performance automotive connector with proven environmental sealing and mechanical stability.
Explore more high-quality Automotive Connectors and related industrial-grade components at EnvMart to meet your precision connectivity requirements.
