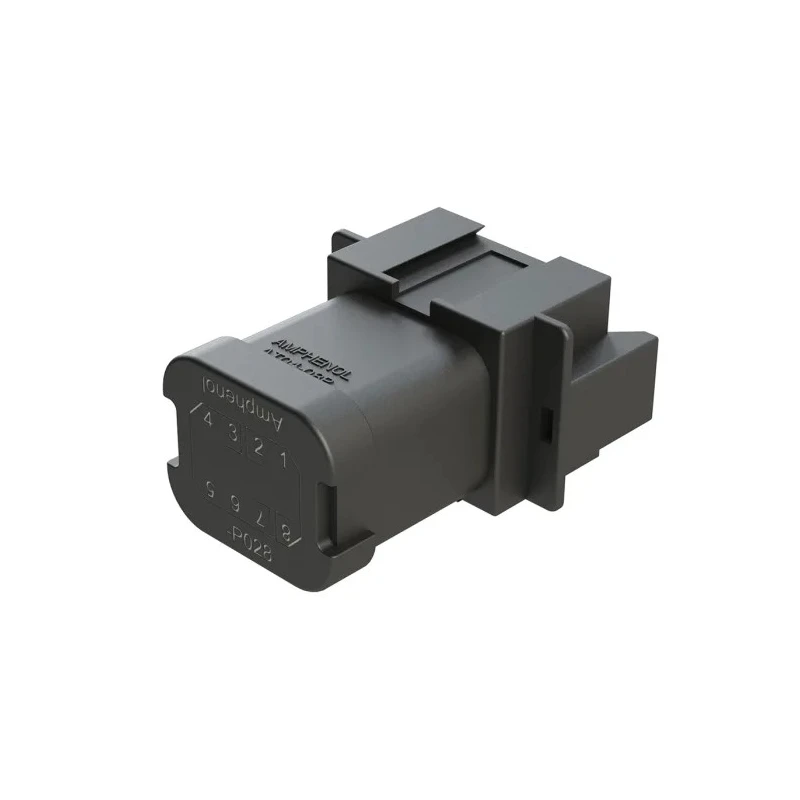

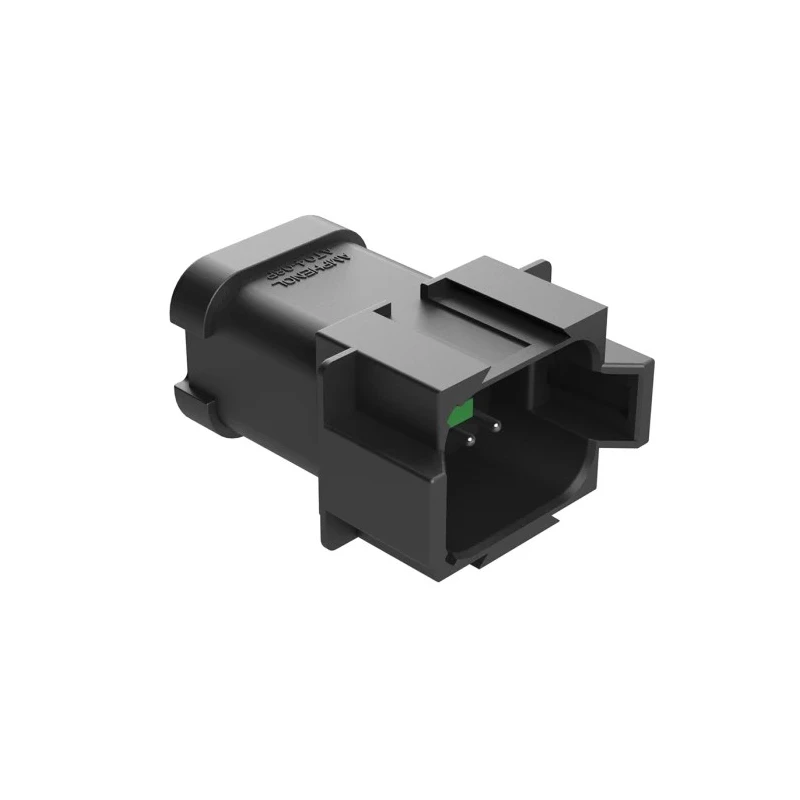

Amphenol Industrial AT Automotive Connector Male Black Cable 8 Way Crimp Termination AT04-08PB-P028

Amphenol Industrial AT04-08PB-P028 is a male automotive connector featuring bussed electrical connections and an 8-way crimp termination designed for black cables. This connector is part of the AT Series and provides a robust, high-performance solution suitable for heavy-duty and harsh environment applications.

The connector consists of 8 contacts arranged in 2 rows, with current ratings of 13 amps for the 3-pin busbar and 26 amps for the 5-pin busbar. Its thermoplastic housing and nickel-plated copper alloy contacts ensure longevity and reliable electrical performance. The connector is IP67 rated, providing complete dust ingress protection and resistance to water immersion.

Designed with an integrated latch and wedgelock, it guarantees proper contact alignment, retention, and secure mating with corresponding standard AT Series plugs. The male connector is keyed B to prevent incorrect connections, making it ideal for automotive, transportation, marine, military, diagnostic, agricultural, and alternative energy installation requirements.

The operating temperature range spans from -55°C to 125°C, making the connector suited for extreme environmental conditions. Its sealed integrated bussed feedback assembly allows use as a splice or tap block in automotive electrical systems.

The connector features 8 contacts arranged in 2 rows. It is designed for crimp termination on black cables. Current ratings are 13A for a 3-pin busbar and 26A for a 5-pin busbar. Constructed with a thermoplastic housing and nickel-plated copper alloy contacts for durability.

Sealed to IP67 standard, ensuring protection against dust and water ingress. Operates effectively within a wide temperature range of -55°C to 125°C. Includes an integrated latch and wedge lock for secure mating and contact retention.

The male connector is keyed B for proper alignment and intermateability with standard AT Series plugs. Suitable for heavy-duty, transportation, marine, military, and alternative energy applications. This connector is manufactured in China, adhering to No specific standards or approvals.
