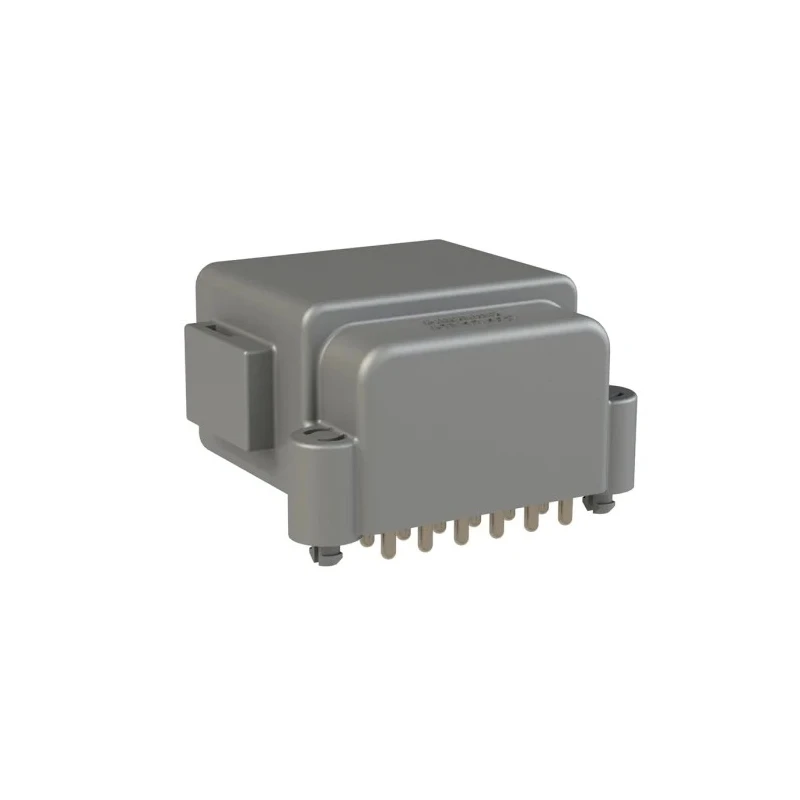

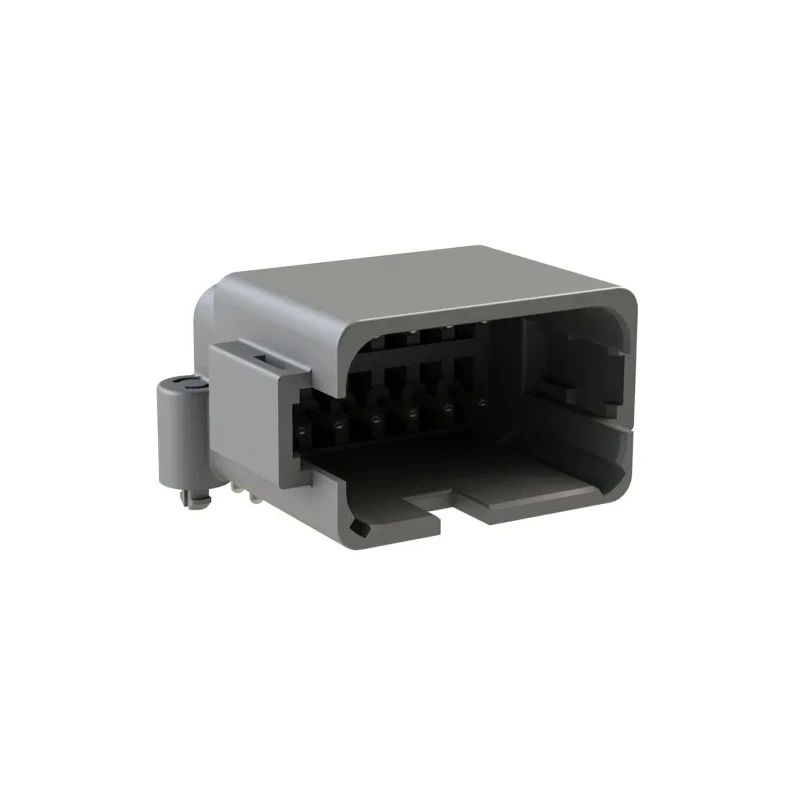

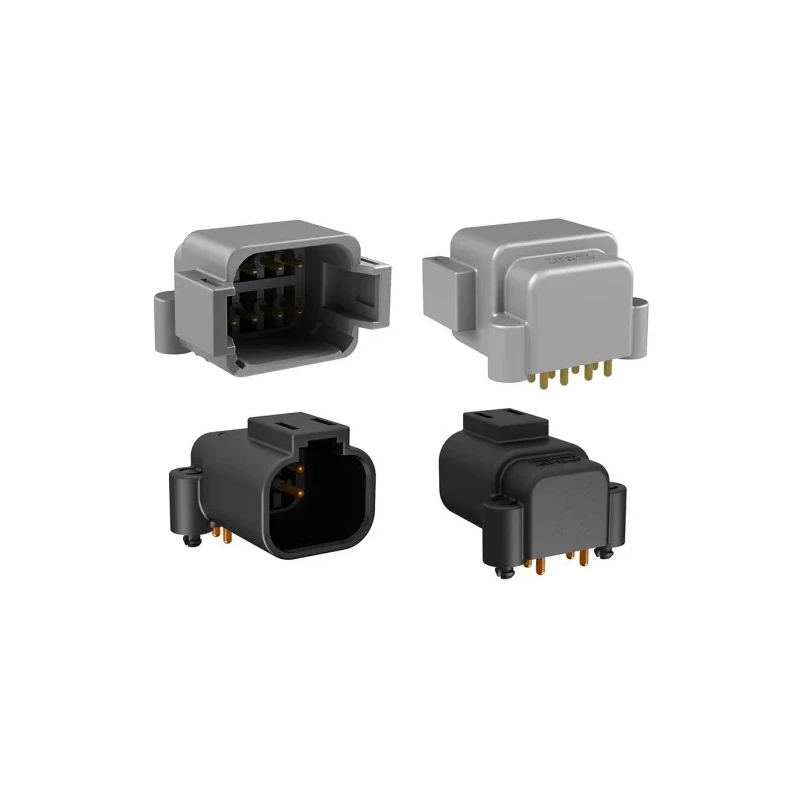

Amphenol Industrial AT BoardLock Automotive Connector Male Grey PCB 12 Way Crimp Termination ATF13-12PA-BM03
Specifications
| Country of Origin | India |
|---|---|
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13A |
| Height | 22.94mm |
| Model | ATF13-12PA-BM03 |
| Depth | 34.9mm |
| IP Rating | IP67 |
| Width | 41.95mm |
| Gender | Male |
| Mount Type | PCB |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AT BoardLock |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- Designed for reliable power and signal connectivity in harsh environments.
- Features a durable thermoplastic housing with IP67 rating for sealed applications.
- Supports a maximum current of 13A and operates from -55°C to 125°C.
- Includes 12 contacts arranged in 2 rows with snap-lock or screw-lock mounting options.
- Ideal for heavy equipment, transportation, industrial, off-road, and automotive use.
- Constructed with copper alloy contacts plated with tin for corrosion resistance.
- Compatible with A Series female connectors and industry standard mating connectors.
- Compact and lightweight design ensures ease of installation on PCBs.
Product Description
Amphenol Industrial ATF13-12PA-BM03 automotive connector is a male PCB mounted connector designed for robust power and signal transmission in demanding applications. This grey connector features 12 crimp termination contacts arranged in two rows, engineered for snap-lock or screw-lock mounting on printed circuit boards.
Constructed with a thermoplastic housing and copper alloy contacts plated with tin, this connector meets IP67 ingress protection standards, ensuring resistance to dust and water for sealed environments.
The product can operate effectively in extreme temperatures ranging from -55°C to 125°C, making it suitable for harsh industrial, automotive, heavy equipment, off-road, agricultural, and HVAC systems.
The connector belongs to the AT BoardLock series known for environmentally sealed thermoplastic connections with a maximum current rating of 25A, though this model supports up to 13A current. Its compact and durable design accommodates both power and data signal applications and is compatible with other A Series components and common mating connectors.
Reliable power and signal connectivity in harsh and sealed environments. Durable thermoplastic housing rated IP67 for protection against dust and water. 12 contacts arranged in 2 rows with crimp termination for secure electrical connection.
Current rating of 13A and temperature range from -55°C to 125°C for versatility. Contact material made of copper alloy with tin plating for durability and corrosion resistance. Snap-lock or screw-lock mount options provide secure PCB attachment.
Compact design compatible with various heavy equipment and automotive systems. Suitable for industrial, transportation, off-road, agricultural, HVAC, and automotive applications. This product is ideal for professionals requiring reliable automotive connectors with high durability and environmental sealing.
Explore more automotive connectors and related components in the Electronics & Electricals > Electronics Components > Automotive Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 13A.
It operates effectively within a temperature range of -55°C to 125°C.
The connector features snap-lock or screw-lock mounting options for secure attachment to printed circuit boards.
It has a total of 12 contacts arranged in 2 rows.
The connector has an IP67 rating, providing protection against dust and water.
The housing is made of thermoplastic, and the contacts are constructed from copper alloy with tin plating for corrosion resistance.
Yes, it is compatible with A Series female connectors and other industry standard mating connectors.
The dimensions are 41.95mm in width, 34.9mm in depth, and 22.94mm in height.
It is ideal for heavy equipment, transportation, industrial, off-road, agricultural, and HVAC applications.
This model uses crimp termination for secure electrical connections.
It complies with RoHS standards, ensuring it meets environmental safety requirements.
The connector is manufactured in India.
