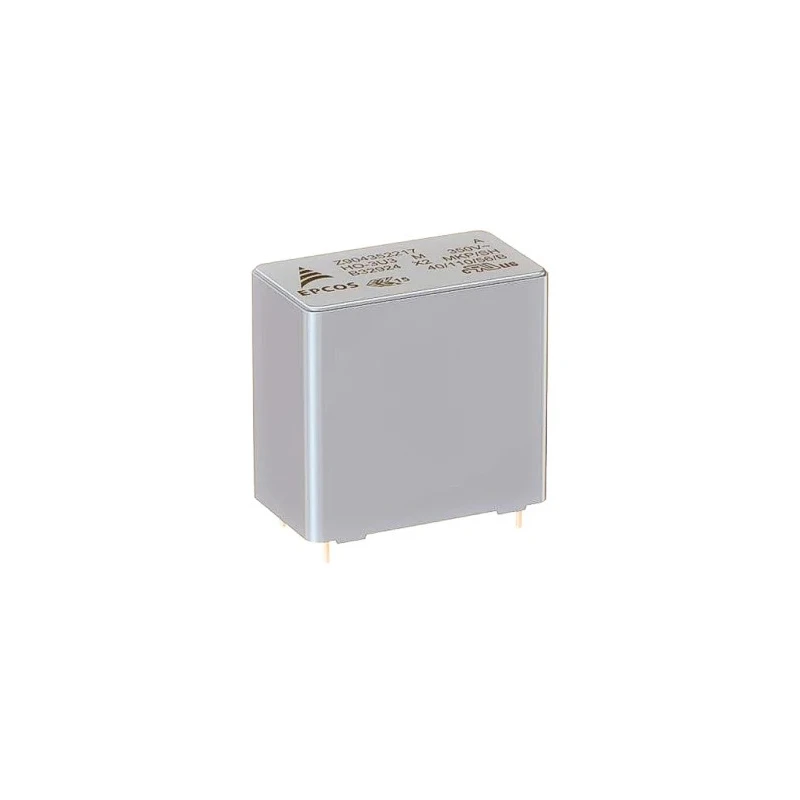

TDK Film Capacitor Through Hole 820 nF 305V AC 305 V DC Self-Healing X2 Suppression Class B32923H3824M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole 820 nF 305V AC 305 V DC Self-Healing X2 Suppression Class B32923H3824M000



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	20.5mm
Length	26.5mm
Model	B32923H3824M000
Width	11mm
Mount Type	Through Hole
Series	B32923
Maximum Operating Temperature	110°C
Capacitance	820nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D
Suppression Class	X2

Key Features

Features a 22.5 mm lead pitch for easy PCB mounting.
Designed with self-healing properties ensuring long-term reliability.
Rated maximum operating temperature is 110°C for durability in harsh environments.
Complies with RoHS and UL standards for safety and environmental compliance.
Suppresses interference according to X2 class suitable for across-the-line applications.
Pin count is 2 with 0.8 mm lead diameter, suitable for through hole mounting.
Application includes capacitive power supply, energy meters, and severe ambient conditions.
Constructed to meet automotive standard AEC-Q200 Rev D for quality assurance.

Product Description

TDK B32923H3824M000 Film Capacitor is a high-quality, through hole mounted capacitor designed for demanding electronic applications requiring 820 nF capacitance and rated at 305V AC and 305V DC.

This capacitor features a sturdy construction with a lead pitch of 22.5 mm and dimensions of 26.5 mm length, 11 mm width, and 20.5 mm height, facilitating reliable PCB installations. It incorporates self-healing technology that enhances reliability by repairing micro-damages during operation.

With a maximum operating temperature of 110°C, this capacitor is suitable for severe ambient conditions commonly found in industrial and automotive environments. It complies with international standards including RoHS and UL, assuring environmental and safety compliance.

The device complies with the automotive industry standard AEC-Q200 Rev D, making it suitable for automotive and other demanding electronic system applications. The X2 suppression class certification indicates it is ideal for interference suppression in across-the-line applications such as capacitive power supplies and energy meters.

This two-pin capacitor has a lead diameter of 0.8 mm and is designed specifically for through-hole mounting, ensuring easy and secure PCB integration. It is manufactured in China. Self-healing properties improve long-term capacitor lifespan.

High stability of capacitance value ensures consistent circuit performance. X2 suppression class for effective EMI/RFI noise reduction. Suitable for industrial, automotive, energy metering, and power supply applications.

Compliance with RoHS and UL certifications for safety and environmental standards. Meets automotive AEC-Q200 standard for high reliability in harsh conditions. Physical dimensions and lead pitch optimized for standard PCB layouts.

Overall, the TDK B32923H3824M000 Film Capacitor provides a reliable and stable solution for interference suppression and power electronics applications in industrial, automotive, and manufacturing sectors. Browse the Electronics Components category for more Film Capacitors and related products at EnvMart.
