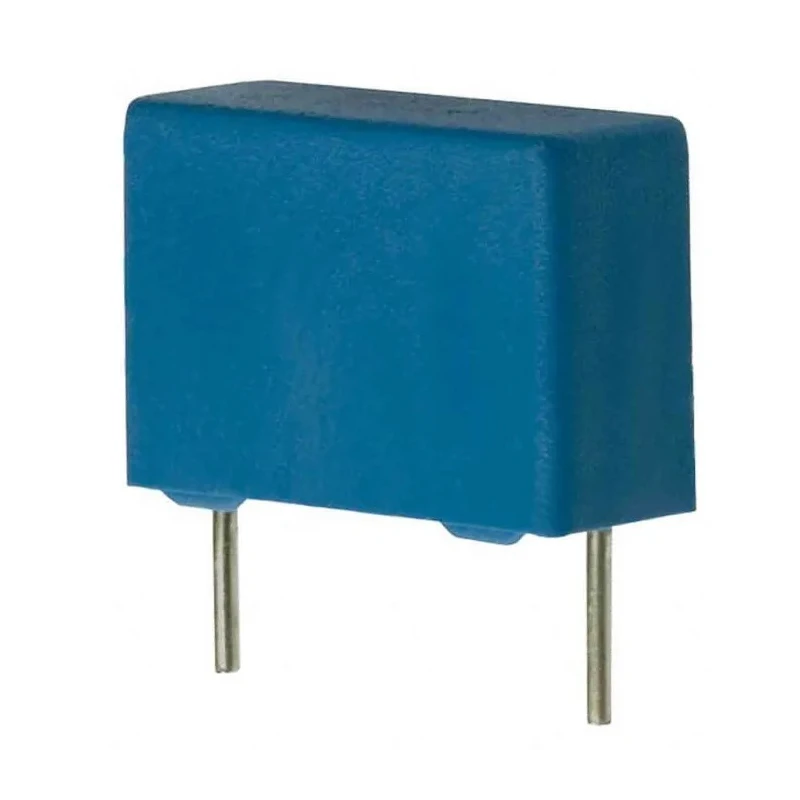

TDK Film Capacitor 22 nF 2 kV AC 2 kV DC Through Hole Mount B32654A2223J000

TDK B32654A2223J000 Film Capacitor is a high-quality passive electronic component designed for robust performance in demanding industrial and automotive applications. Featuring a capacitance of 22 nanofarads, it withstands rated voltages of 2 kV AC and 2 kV DC, making it suitable for high voltage circuits including electronic ballasts and switch-mode power supplies.

This capacitor utilizes a through hole mount, facilitating reliable and secure PCB assembly. With a lead pitch of 27.5 mm and lead diameter of 0.8 mm, it ensures stable electrical and mechanical connections. The maximum operating temperature of 110°C allows it to perform reliably under elevated thermal conditions common in industrial environments.

Its compliance with the AEC-Q200 Rev D automotive standard affirms its suitability for automotive systems requiring high reliability and strict quality requirements. The low inductance construction aids in minimizing interference and boosts efficiency in high frequency applications.

Physical dimensions of 31.5 mm length, 11 mm width, and 21 mm height make it a compact component for diverse circuit designs. Safety and environmental standards are met with UL and RoHS approvals, guaranteeing use in green and certified manufacturing setups.

High pulse strength ensures reliable performance in electronic circuits. Mount type is through hole for easy PCB insertion. Rated AC voltage of 2 kV and DC voltage of 2 kV provides versatile application potential. Compliant with AEC-Q200 Rev D automotive standard for durability.

Maximum operating temperature of 110°C suitable for demanding conditions. Low inductance design for improved electrical characteristics. Leads feature 27.5 mm pitch and 0.8 mm diameter for secure mounting. Dimensions: length 31.5 mm, width 11 mm, height 21 mm.

UL and RoHS approvals ensure quality and environmental compliance.

This film capacitor is ideal for use in industrial electronics, automotive electronics, power supplies, and other applications requiring high voltage, reliable capacitors. It supports manufacturing, electronics assembly, and maintenance sectors by providing a robust capacitor solution with global quality certifications.
