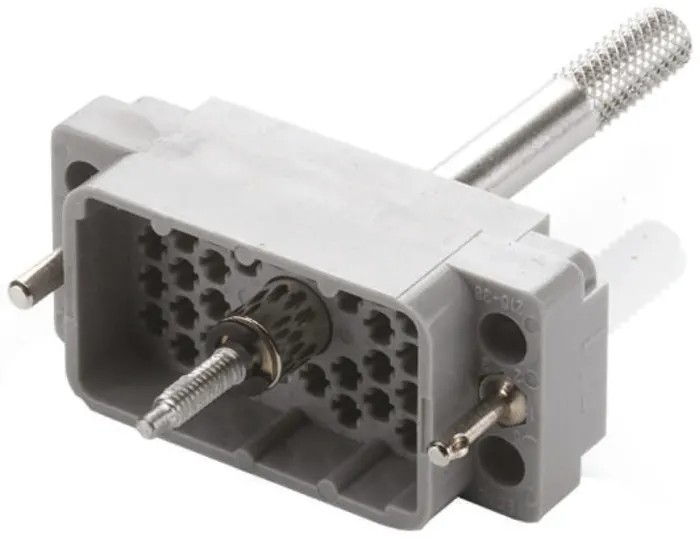

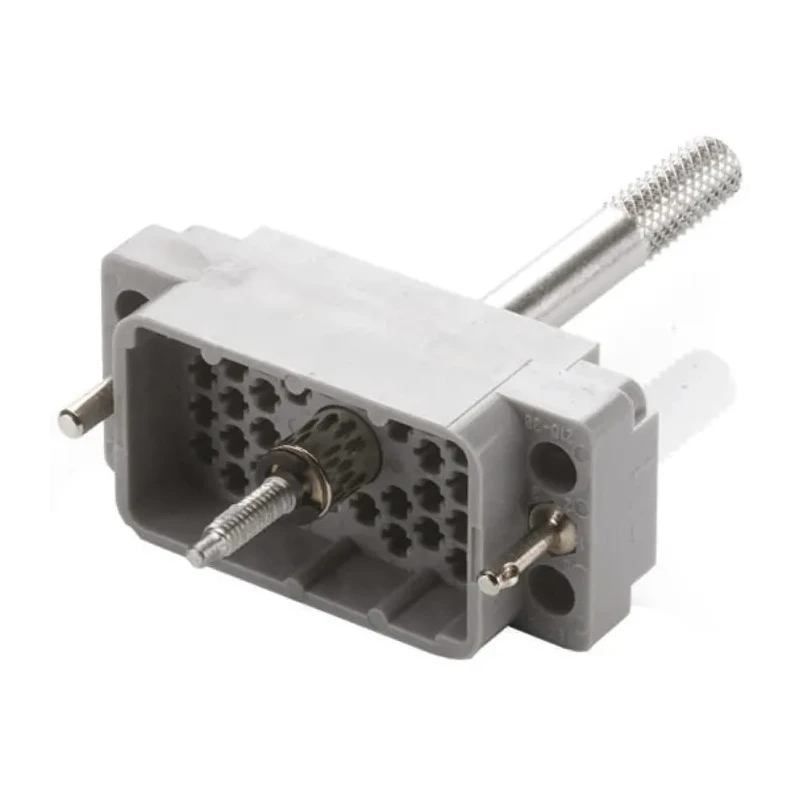

EDAC Heavy Duty 38 Way Straight D-Sub Connector Male, 8.5A Current, Phosphor Bronze Contacts, Gold Plating 516-038-000-301

The EDAC 516-038-000-301 heavy duty 38 way straight D-Sub connector male is engineered for applications demanding safety and high reliability, operating at a robust 8.5A current rating. It incorporates 38 phosphor bronze contacts with gold plating, ensuring excellent electrical conductivity and corrosion resistance. The connector housing is crafted from phthalate, polycarbonate, and thermoplastic polyester materials, combining durability and environmental resistance.

This connector sustains a wide operating temperature range from -65°C to 105°C, making it suitable for extreme industrial environments such as audio broadcast systems, railway signalling, oil and gas industry controls, automotive controls, and various industrial and test systems.

The connector features crimp termination providing secure and reliable contact connections, with a straight male orientation that facilitates straightforward integration into electrical assemblies. The hermaphroditic metal-to-metal contact design allows versatility in forming fixed or free halves of the connector.

The high insulation resistance rating of 5000mOhm helps maintain signal integrity by minimizing leakage. Although it does not carry specific certifications, it is recognized in key standards like ANSI/ESD S20.20 (2014) and BS EN 61340-5-1 (2007), underscoring its suitability for electrostatic discharge sensitive applications.

The connector features 38 gold plated phosphor bronze contacts to ensure optimal conductivity. It supports a current rating of 8.5A suitable for power applications. The housing is constructed from durable phthalate, polycarbonate, and thermoplastic polyester materials.

The operating temperature ranges from -65°C to 105°C for harsh environment use. Termination is via crimp type pins providing secure contact connection. The male connector has a straight orientation for easy mating in assemblies.

Designed with heavy duty standards ensuring industrial grade performance and safety. It is ideal for audio broadcast, railway signalling, oil and gas control, automotive, and general industrial systems. The high insulation resistance of 5000mOhm guarantees signal integrity and prevents leakage.

This product is well-suited for industrial, manufacturing, laboratory, and specialized control system applications requiring durable and reliable power connectors. It complements other electrical components in heavy duty and high-reliability equipment setups.
