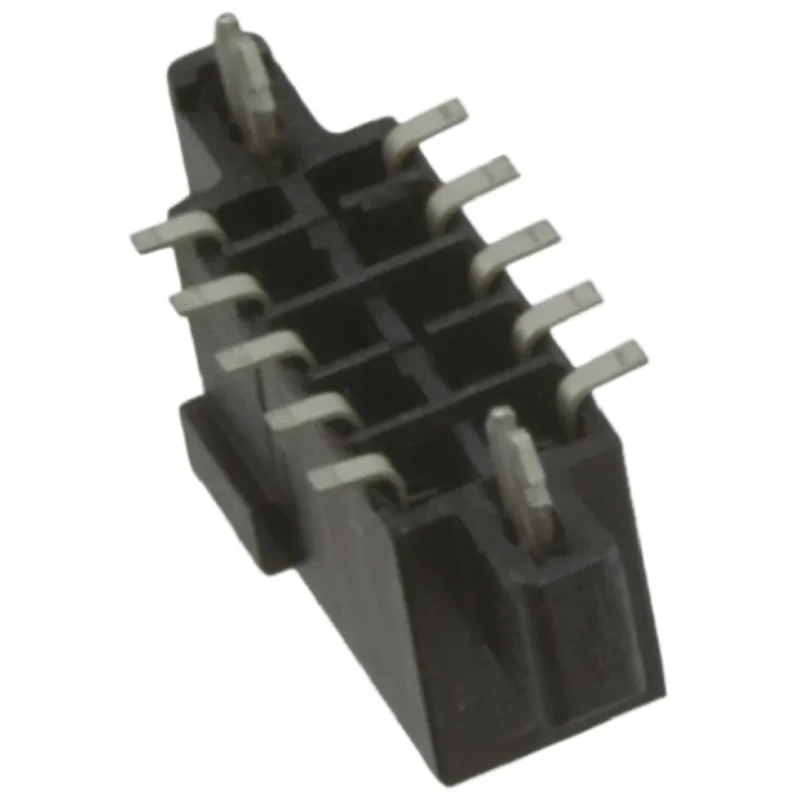

TE Connectivity AMPMODU System 50 Series Straight Surface PCB Socket 10-Contact 2 Row 1.27mm Pitch Solder 5-104652-1

TE Connectivity 5-104652-1 AMPMODU System 50 Series Straight Surface PCB Socket is a high performance connector designed for dense electronic applications requiring reliable board-to-board connections. This PCB socket features a 1.27 mm pitch across 10 female contacts arranged in 2 rows, providing a compact and efficient interface for electronic assemblies.

The housing is constructed from liquid crystal polymer material that meets UL 94V-0 standards for flame retardancy, ensuring safety and durability in industrial environments. The contacts are copper with gold plating to guarantee excellent electrical conductivity and resistance to corrosion.

Engineered to operate in temperatures ranging from -40°C to 105°C, this connector supports a nominal current rating of 12A and a voltage rating of 30V, making it suitable for demanding electrical systems. Its straight orientation and surface mounting termination type allow for smooth integration into printed circuit boards using infrared or vapor phase reflow soldering techniques.

The AMPMODU System 50 series offers a high-density solution with a 2.54 mm row pitch, supporting compact and vertical board stacking applications. Various header options accommodate different stacking heights, enhancing flexibility in system designs.

This connector is widely used in industrial electronics, power connectors, and PCB assembly processes requiring high precision and reliable electrical performance. Its robust materials and design ensure longevity and consistent operation in varied manufacturing and operational conditions.

Features a straight orientation with surface mount termination for efficient PCB assembly. Gold-plated copper female contacts for superior electrical conductivity and corrosion resistance. Liquid crystal polymer housing compliant with UL 94V-0 flame retardance standards.

Supports operating temperatures from -40°C to 105°C for thermal reliability. Rated for 12A current and 30V voltage suitable for various electronic applications. Compact 2-row design with 1.27 mm pitch for high-density PCB configurations.

Compatible with SMT assembly and multiple reflow soldering processes. Ideal for vertical board stacking solutions with alternate header heights. Uses board-to-board connector system enhancing modular electronic designs. Explore more high quality and reliable PCB connectors from EnvMart’s portfolio, perfect for industrial, electronic, and manufacturing needs.
