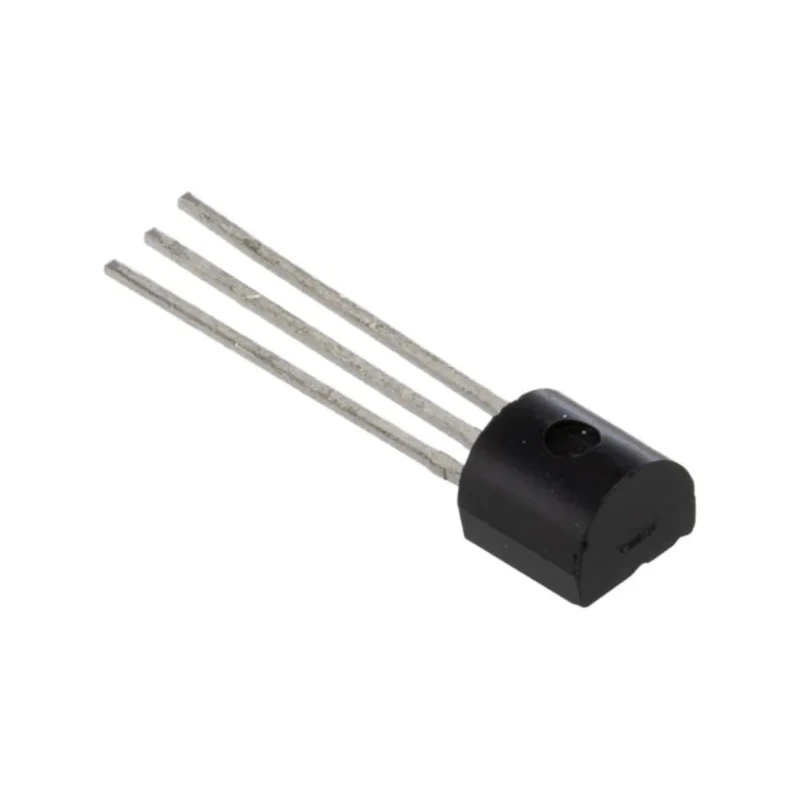

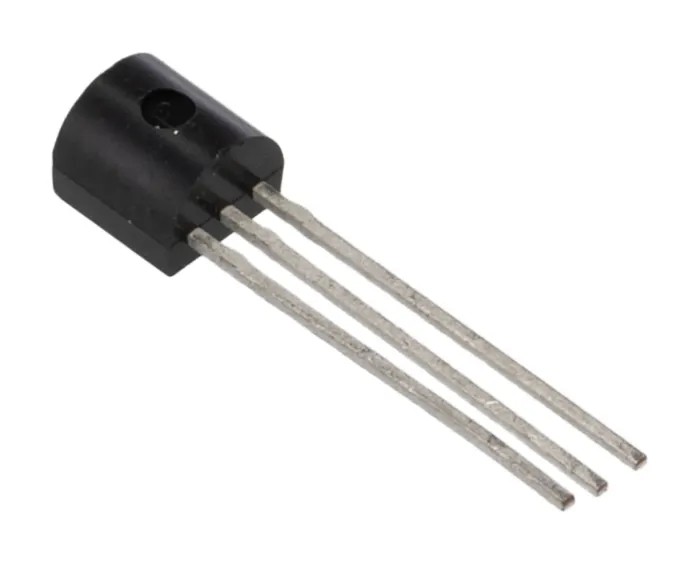

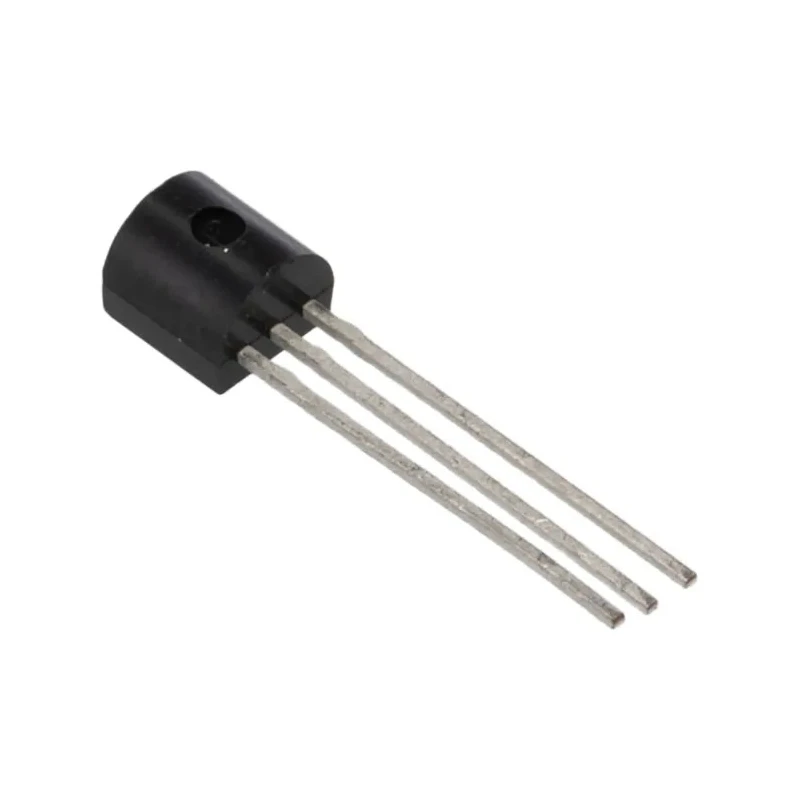

Microchip 5-Channel Low Dropout Voltage Regulator 250 mA 5V TO-92 3-Pin MCP1702-5002E/TO

Microchip MCP1702-5002E/TO is a low dropout (LDO) linear voltage regulator designed to provide 5V output with a maximum output current of 250 mA. The regulator is housed in a compact TO-92 3-pin through-hole package measuring approximately 4.71 mm in length, 3.62 mm in width, and 4.62 mm in height. This device supports a minimum input voltage of 2.7V and a maximum input voltage of 13.2V, allowing for flexible power supply configurations in various electronic circuits.

The low dropout voltage characteristic of the MCP1702 series allows efficient operation close to the input supply voltage, making it suitable for battery-powered and low-voltage applications. It features a positive polarity output and excellent line regulation of 0.1% per volt, along with load regulation of 1%, ensuring stable voltage output even under varying load current conditions. The typical quiescent current is only 2 microamperes, contributing to low power consumption and improved energy efficiency.

This voltage regulator is rated to operate reliably within a temperature range of -40°C to 125°C, making it suitable for industrial, commercial, and consumer electronics environments requiring robust temperature performance. The MCP1702-5002E/TO complies with RoHS standards, ensuring adherence to environmental regulations and sustainability efforts.

Applications for this voltage regulator include power supply stabilization in embedded systems, portable electronics, instrumentation, and control circuitry. Its through-hole mounting configuration facilitates easy incorporation into PCB designs with standard assembly processes.

Low dropout voltage design for efficient voltage regulation. Fixed 5V output voltage suitable for many electronic devices. 250 mA maximum output current providing sufficient power for various loads. Compact TO-92 3-pin package for easy through-hole mounting.

Extremely low quiescent current reduces power consumption in standby conditions. Wide operating temperature range from -40°C to 125°C for reliability in harsh environments. Input voltage range of 2.7V to 13.2V for broad application compatibility.

Excellent line regulation and load regulation for voltage stability. Positive polarity output type for common power supply requirements. RoHS compliant for environmental safety.

Microchip voltage regulators such as the MCP1702-5002E/TO are widely used in industrial automation, consumer electronics, communication equipment, and laboratory instruments. Their reliable performance ensures stable power delivery critical for sensitive electronic components. For those seeking precision voltage regulation with minimal power loss, this regulator is an ideal choice. Browse EnvMart's comprehensive catalog of Voltage Regulators and power management ICs to find the perfect solution for your electronic design needs.
