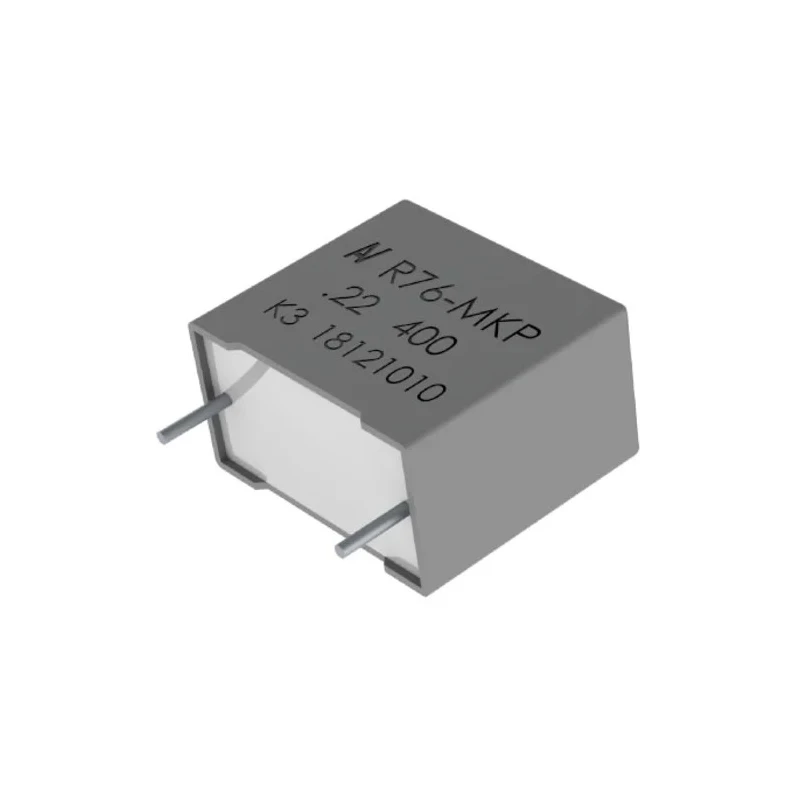

KEMET R76_125C Film Capacitor, 220 nF ±5 %, 2 kV DC 700 V AC Through Hole R76UR322050H3J

KEMET R76UR322050H3J Film Capacitor is a high-quality component designed for demanding industrial and electronic applications requiring stable capacitance and high voltage endurance. It features 220 nF capacitance with a precise ±5% tolerance ensuring dependable performance in power electronics circuits.

The capacitor is constructed using polypropylene films and double metallized polyester electrodes with radial leads made of tinned wire, which are electrically welded to the metallized layers. Encapsulation in a self-extinguishing, solvent-resistant plastic case guarantees durability and safety during operation. It exhibits a rated DC voltage of 2 kV and an AC voltage rating of 700 V, suitable for circuits with high voltage requirements.

Operating temperatures range broadly from -55°C to +125°C, making it reliable for use in environments with extreme temperature fluctuations. Its electrical specifications include a low equivalent series resistance (ESR) of 14 mΩ and a minimal dissipation factor of 0.06%, contributing to efficiency in continuous operation. The 27.5 mm lead pitch and solder-type terminals facilitate easy and secure through-hole mounting on PCBs.

Fully compliant with international standards RoHS and IEC 60286-2, and automotive standard AEC-Q200, this capacitor ensures compatibility in automotive and high-reliability industrial applications. Typical use cases include resonant circuits, snubber and commutation circuits for SCRs (Silicon Controlled Rectifiers), IGBTs, and SiC MOSFETs where high frequency and high current capabilities are essential.

Packaging in trays provides organized transport and handling for bulk installation. The R76 series encapsulates a wide capacitance range from 100 pF up to 15 µF with varying lead spacing and tolerances, allowing designers flexibility when choosing components.

Constructed with polypropylene and metallized polyester electrodes for electrical reliability. Self-extinguishing case with thermosetting resin for enhanced safety. Wide operating temperature range from -55°C to +125°C. Low equivalent series resistance ensuring efficiency.

Compliant with RoHS, IEC 60286-2, and AEC-Q200 automotive standards. Ideal for high frequency, high voltage, and high current applications. Suitable for resonant circuits, snubbers, and power electronics commutation circuits.

Tray packaging optimizes handling and assembly workflow.
