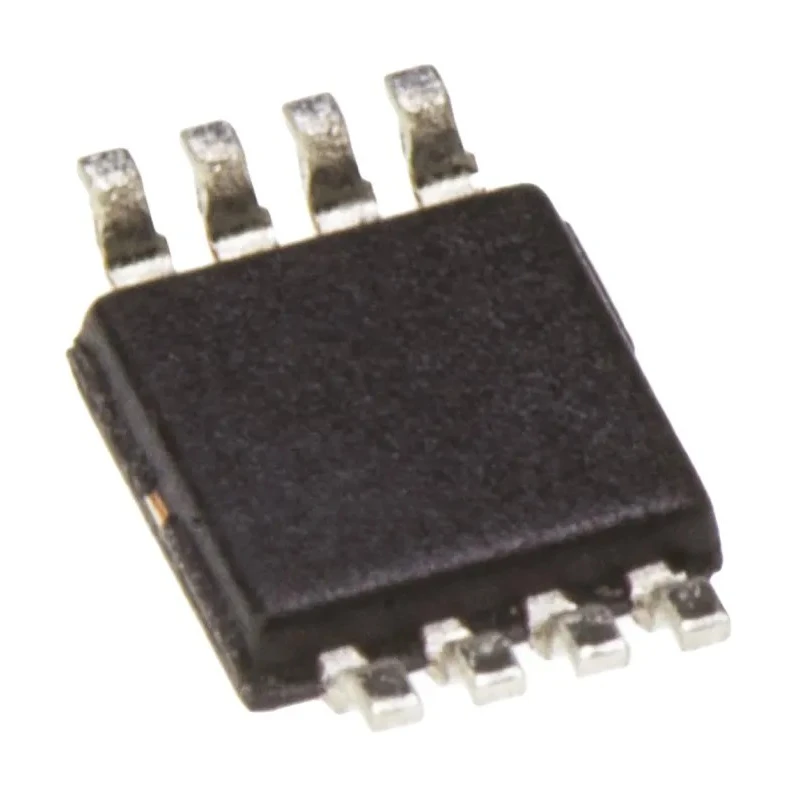

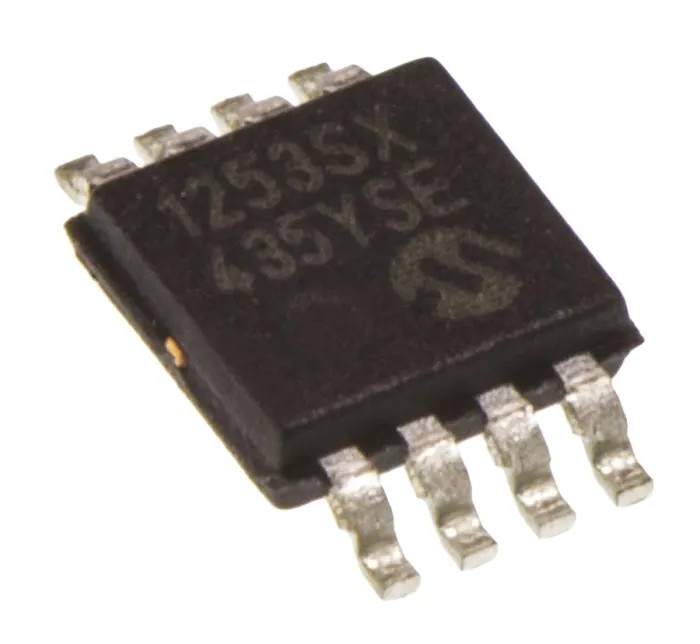

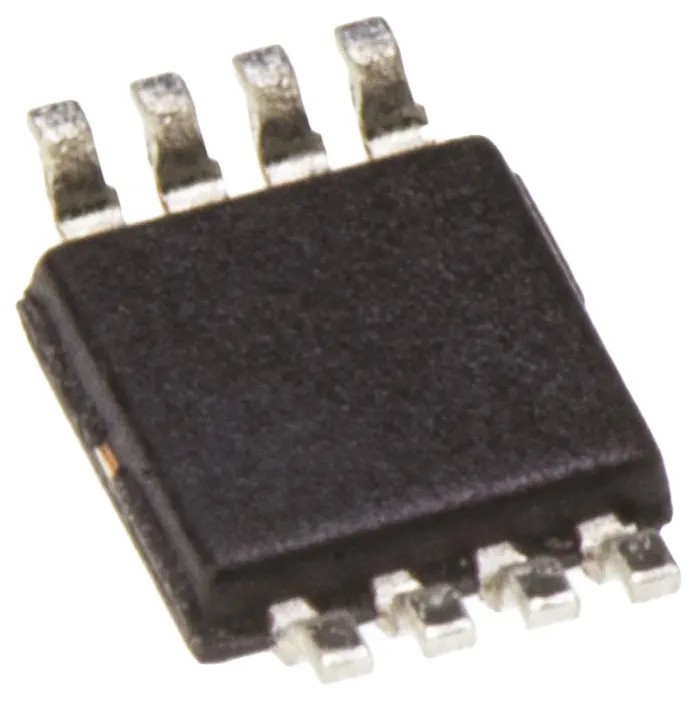

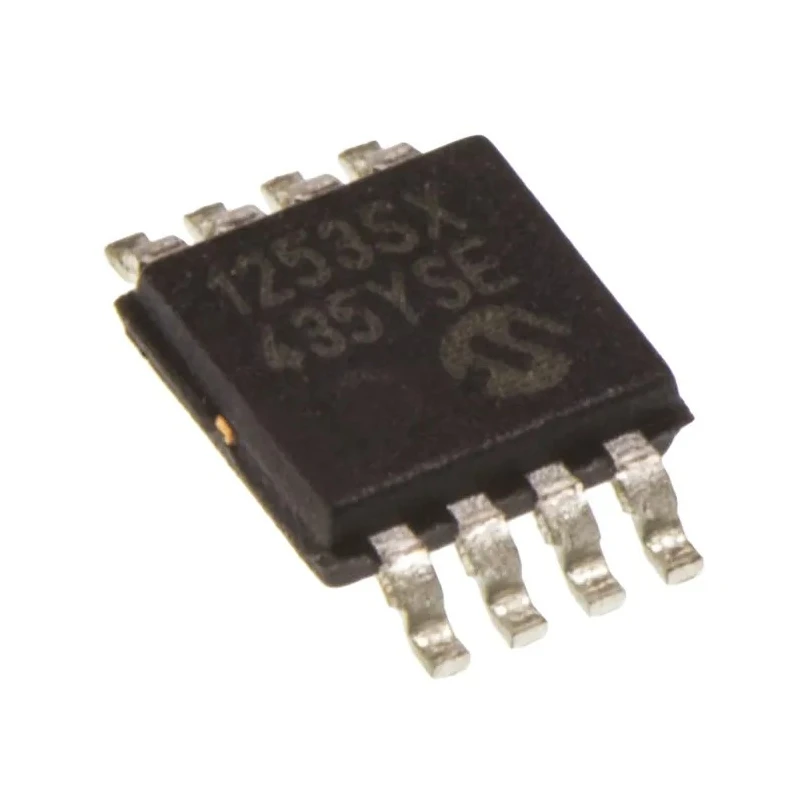

Microchip 5-Channel Charge Pump Regulator 5V 120mA 1MHz MSOP 8-Pin MCP1253-33X50I/MS

Name: Microchip 5-Channel Charge Pump Regulator 5V 120mA 1MHz MSOP 8-Pin MCP1253-33X50I/MS
Brand: Microchip
SKU: 160347



Category Voltage Regulators Brand Microchip Condition New

Specifications

Country of Origin	India
Voltage	Regulators Microchip, 5-Channel Charge Pump, Regulator, 120 mA, 5V 1 MHz, MSOP 8
Brand	Microchip
Height	850μm
Length	3mm
Model	MCP1253-33X50I/MS
Width	3mm
Mount Type	Surface
Output type	Fixed
Series	MCP1253
Output Current	120mA
Maximum Operating Temperature	85°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
Polarity	Positive
Regulator Type	Charge Pump
Switching Frequency	1MHz
Number of outputs	5
Maximum Input Voltage	5.5V
Output Voltage	5V
Quiescent Current	120μA
Standards/Approvals	RoHS
Minimum Input Voltage	2.1V
Pin Count	8
Automotive Standard	AEC-Q100

Key Features

This regulator features a 1MHz switching frequency for efficient power conversion.
It comprises 5 positive polarity outputs suitable for multiple charge pump applications.
The device is packaged in an 8-pin MSOP surface mount form factor measuring 3mm x 3mm x 0.85mm.
It operates over a wide input voltage range from 2.1V to 5.5V and supports automotive AEC-Q100 standards.
The low quiescent current of 120μA allows for energy-efficient operation in battery-powered systems.
Operating temperature ranges from -40°C to 85°C ensuring robustness in harsh conditions.

Product Description

Microchip MCP1253-33X50I/MS is a high-performance 5-channel charge pump regulator designed for efficient DC-to-DC conversion with fixed 5V output and 120mA current drive capability. It operates at a 1MHz switching frequency enabling compact applications within constrained layouts.

Equipped with 8-pin MSOP surface mount packaging, the regulator has compact dimensions of 3mm length, 3mm width, and 850μm height making it ideal for modern electronics manufacturing and assembly processes.

The device supports an input voltage ranging from 2.1 to 5.5 volts and outputs a stable positive voltage, suitable for powering various analog and digital circuits with tight voltage tolerances.

Low quiescent current of 120μA reduces power consumption, preserving battery life in portable designs. It meets automotive-grade AEC-Q100 qualification ensuring reliability in automotive and industrial environments.

Typical operating temperature of -40°C to 85°C allows deployment across demanding industrial, automotive, and commercial electronics applications. This regulator features a 1MHz switching frequency for efficient power conversion.

It comprises 5 positive polarity outputs suitable for multiple charge pump applications. The device is packaged in an 8-pin MSOP surface mount form factor measuring 3mm x 3mm x 0.85mm. It operates over a wide input voltage range from 2.1V to 5.5V and supports automotive AEC-Q100 standards.

The low quiescent current of 120μA allows for energy-efficient operation in battery-powered systems. Operating temperature ranges from -40°C to 85°C ensuring robustness in harsh conditions.

This regulator is widely used in electronic components involving power management, voltage regulation, and in embedded systems within industrial, automotive, and commercial product designs.
