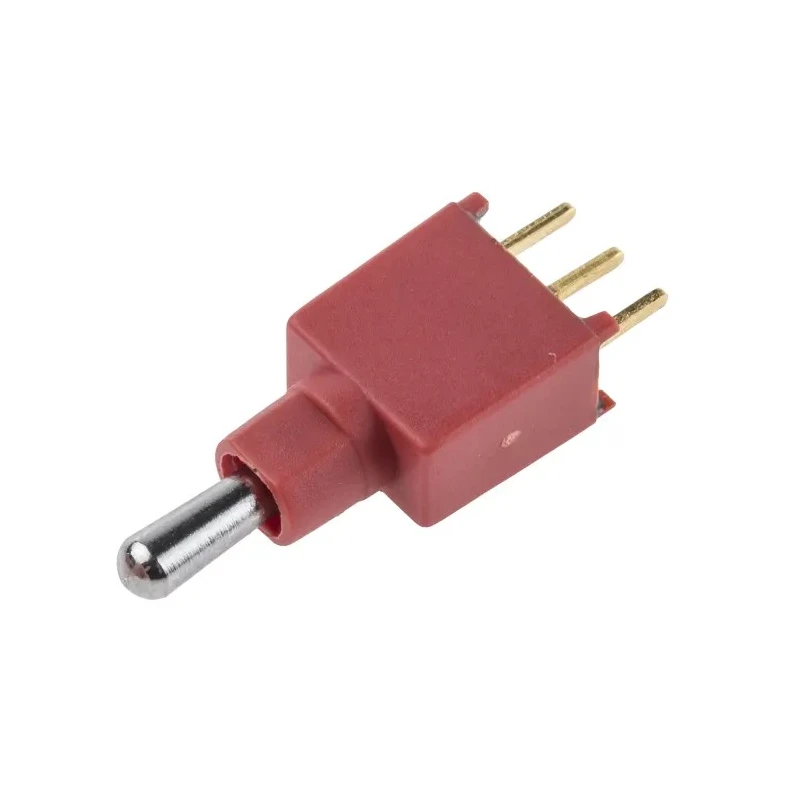

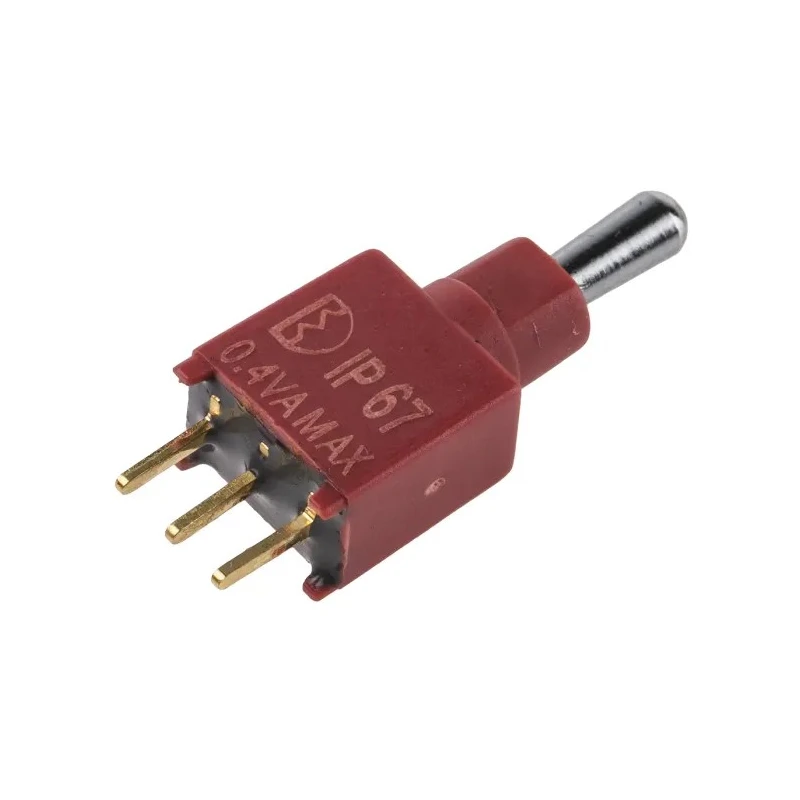

RS PRO PCB Mount Toggle Switch, SPDT On-Off-On, Through Hole Terminal, 15 V DC, 240 V AC, Brass Actuator, IP67, Model 401-696

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Mount Toggle Switch, SPDT On-Off-On, Through Hole Terminal, 15 V DC, 240 V AC, Brass Actuator, IP67, Model 401-696

Name: RS PRO PCB Mount Toggle Switch, SPDT On-Off-On, Through Hole Terminal, 15 V DC, 240 V AC, Brass Actuator, IP67, Model 401-696
Brand: RS PRO
SKU: 160224
Price: 588.24 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	401-696
IP Rating	IP67
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-Off-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	RoHS & Lead Free
Switch Operation	On-Off-On
Actuator Length	6.1mm
Contact DC Voltage	15V dc
Switch Contact Current	400mA
Mechanical Life	30000Cycles
Contact AC Voltage	240V ac
Actuator Material	Brass
RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Through Hole TerminalBrand	RS PRO
Straight mount on-off-on toggle switchBrand	C & K

Key Features

Rated for 15 V DC and 240 V AC operation ensuring versatility.
Through hole terminal type enables secure PCB mounting.
IP67 rated actuator with O-ring seal provides excellent protection against dust and moisture.
Mechanical life of 30,000 cycles for long-lasting durability.
Operating temperature range from -30°C to 85°C suits various industrial conditions.
Constructed with glass filled nylon 6/6 case and gold contacts for enhanced performance.
Non-illuminated switch designed for low-level signal switching.
Switch contact current rating of 400mA.

Product Description

RS PRO 401-696 PCB Mount Toggle Switch is a high-quality SPDT On-Off-On switch engineered for reliable performance in electrical and automation applications. Featuring a brass actuator sealed with an O-ring, it achieves an IP67 rating, protecting against dust ingress and water exposure. This toggle switch supports a contact voltage of 15 V DC and 240 V AC, and a contact current of 400mA, suitable for low-level signal switching in demanding industrial environments.

The switch is designed for mounting on PCBs using through hole terminals, assuring secure solder joints. The case is fabricated from glass filled nylon 6/6 rated UL94V-0, providing high mechanical strength and flame resistance. Gold contacts ensure low contact resistance and stable electrical connectivity over its mechanical life of 30,000 cycles.

Operating reliably across a wide temperature range from -30°C to 85°C, the switch suits a variety of applications including industrial control panels, automation systems, and electronic devices requiring robust switching components. Its non-illuminated design makes it ideal for environments where indication lights are unnecessary.

SPDT On-Off-On contact configuration for versatile circuit control. Brass actuator material with O-ring seal for IP67 ingress protection. Glass filled nylon 6/6 casing with UL94V-0 flame retardant rating. Gold contact pins for excellent conductivity and corrosion resistance.

Designed for printed circuit board mounting via through hole terminals. Suitable for use in automation, electronics manufacturing, and industrial controls. Mechanical durability rated at 30,000 cycles ensuring longevity.

Non-illuminated, low-level signal switch ideal for various switching needs. Wide operating temperature range supports diverse environmental conditions.

This RS PRO Toggle Switch provides an optimal balance of performance and durability for industrial and electrical applications requiring precision switching. Available as part of the RS PRO series, it ensures compliance with RoHS and lead-free standards. Browse the full RS PRO range on EnvMart for quality assured switch components.
