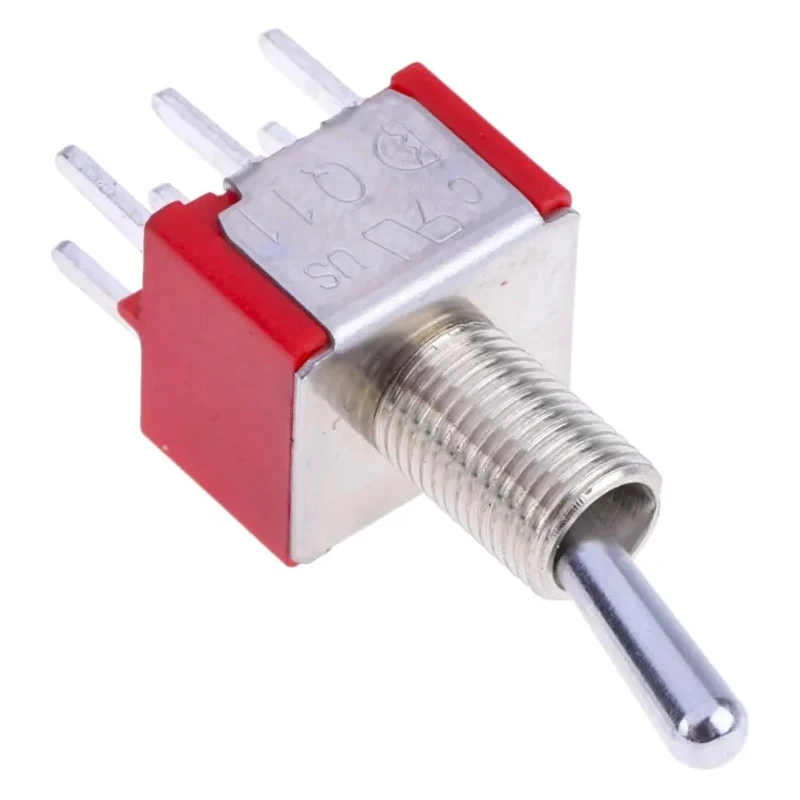

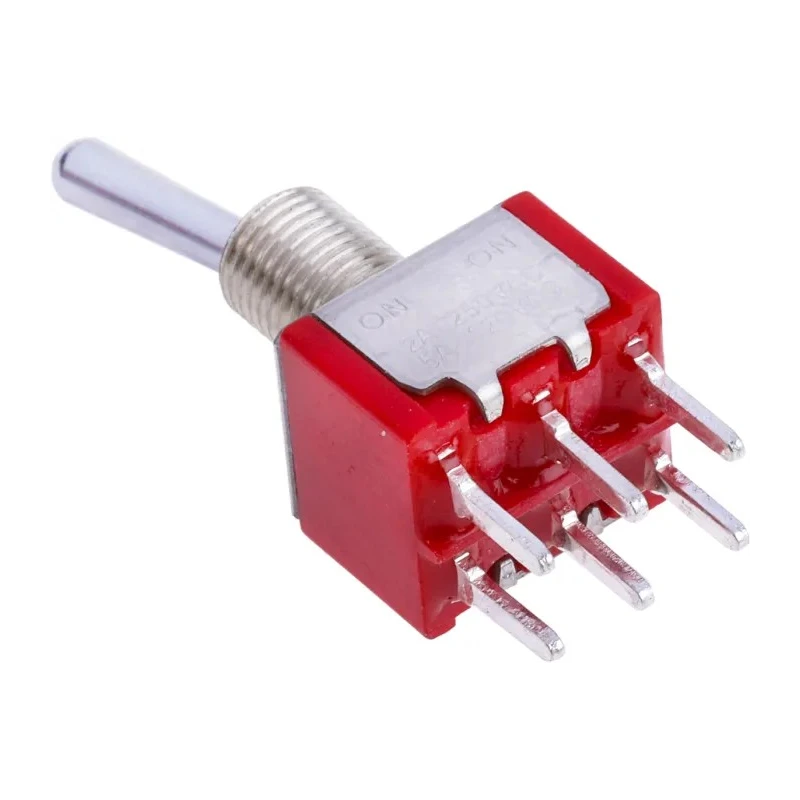

RS PRO DPDT Toggle Switch, PCB Mount, On-On, Through Hole Terminal, 28 V dc, 250 V ac 401-680

Free Delivery in India | Lowest Global Shipping Charges

RS PRO DPDT Toggle Switch, PCB Mount, On-On, Through Hole Terminal, 28 V dc, 250 V ac 401-680

Name: RS PRO DPDT Toggle Switch, PCB Mount, On-On, Through Hole Terminal, 28 V dc, 250 V ac 401-680
Brand: RS PRO
SKU: 160223
Price: 264.23 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	401-680
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	UL, RoHS, CSA, CE
Switch Operation	On-On
Actuator Length	10.41mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	250V ac
Actuator Material	Brass
APEM Toggle Switch, PCB Mount, On-On, DPST, Through Hole TerminalBrand	APEM
2P on-on PCB pin toggle switch,2ABrand	C & K

Key Features

DPDT contact configuration allows control of two circuits simultaneously.
On-On switch operation with a mechanical life of 40,000 cycles.
Rated for 5 A contact current at 28 V dc and 250 V ac voltages.
Brass actuator with a 10.41 mm length provides durable and corrosion-resistant operation.
Through-hole terminals enable secure PCB mounting.
Wide operating temperature range from -30°C to +85°C ensures reliability in harsh environments.
Copper alloy contacts assure rapid and reliable electrical connections.
Chrome-plated brass actuator latches firmly to prevent accidental switching.

Product Description

RS PRO 401-680 DPDT Toggle Switch, designed for PCB mounting with through-hole terminals, features a robust latching On-On double pole double throw configuration suitable for controlling dual circuits in industrial and electronic equipment.

This switch supports a contact current of 5 A at 28 V dc and 250 V ac, with copper alloy contacts ensuring swift and dependable connections. The actuator is made from chrome-plated brass, providing corrosion resistance and durability, with a length of 10.41 mm for convenient operation.

Engineered for reliability, it offers a mechanical life expectancy of 40,000 cycles and operates across a wide temperature range of -30°C to +85°C, making it suitable for a variety of industrial, manufacturing, and automation applications.

The through-hole terminal design facilitates secure soldering onto printed circuit boards while epoxy sealing protects against contamination during soldering processes, enhancing longevity.

This switch complies with RoHS, UL, CSA, and CE standards, ensuring adherence to safety and environmental requirements. DPDT contact configuration allows simultaneous control of two circuits. Latching On-On operation prevents accidental switching.

Brass actuator with chrome plating for durability and corrosion resistance. Copper alloy contacts for rapid and reliable connectivity. Rated for 5 A at 28 V dc and 250 V ac. Mechanical life of 40,000 cycles guarantees longevity.

Wide operating temperature range from -30°C to +85°C. PCB mounting with through-hole terminals for easy installation. Epoxy sealing to reduce soldering damage risk. Complies with UL, CSA, CE and RoHS standards.

This RS PRO toggle switch is ideal for industrial automation, electrical controls, manufacturing machinery, and other applications requiring dependable switching solutions. EnvMart offers this product for clients seeking high-quality PCB-mounted DPDT Toggle Switches with robust materials and certification compliance.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a DPDT (Double Pole Double Throw) contact configuration, allowing control of two circuits simultaneously.

It is rated for a contact current of 5 A at 28 V dc and 250 V ac.

The mechanical life expectancy is rated at 40,000 cycles, ensuring longevity in operation.

It operates effectively within a temperature range of -30°C to +85°C.

This switch is designed for PCB mounting and features through-hole terminals for secure installation.

The actuator is made of brass with chrome plating, while the contacts are made of copper alloy for reliable electrical connections.

It complies with UL, CSA, CE, and RoHS standards, ensuring adherence to safety and environmental requirements.

The actuator has a length of 10.41 mm, providing convenient operation.

This toggle switch features an On-On operation, which prevents accidental switching due to its latching mechanism.

It is suitable for use in industrial automation, electrical controls, and manufacturing machinery, among other applications requiring reliable switching.
