Maxim Integrated 8-Bit 4-Channel SPI Digital to Analogue Converter DAC QSOP 16-Pin MAX534BCEE+

Free Delivery in India | Lowest Global Shipping Charges

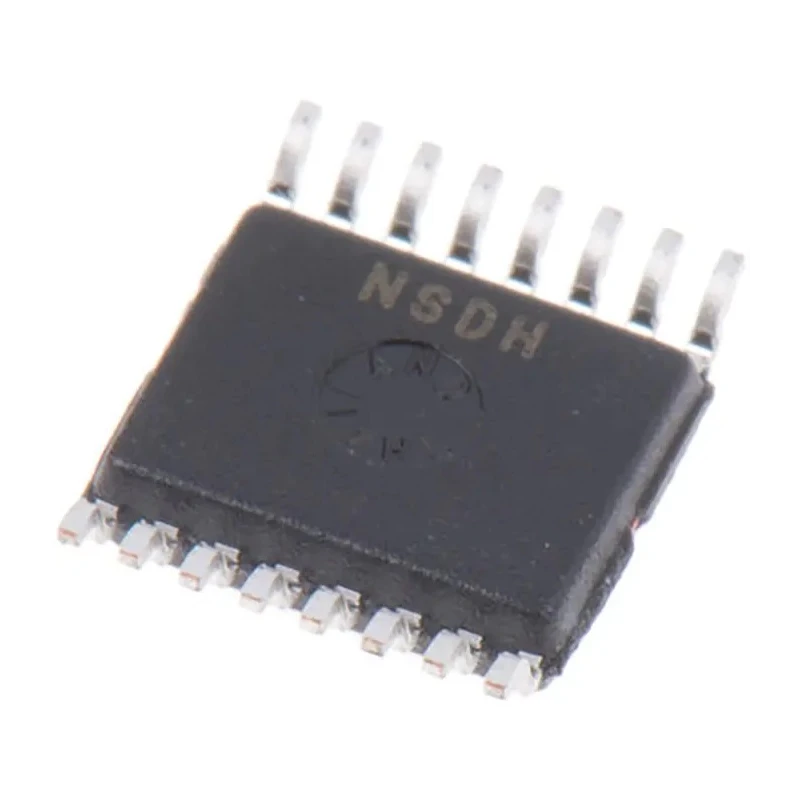

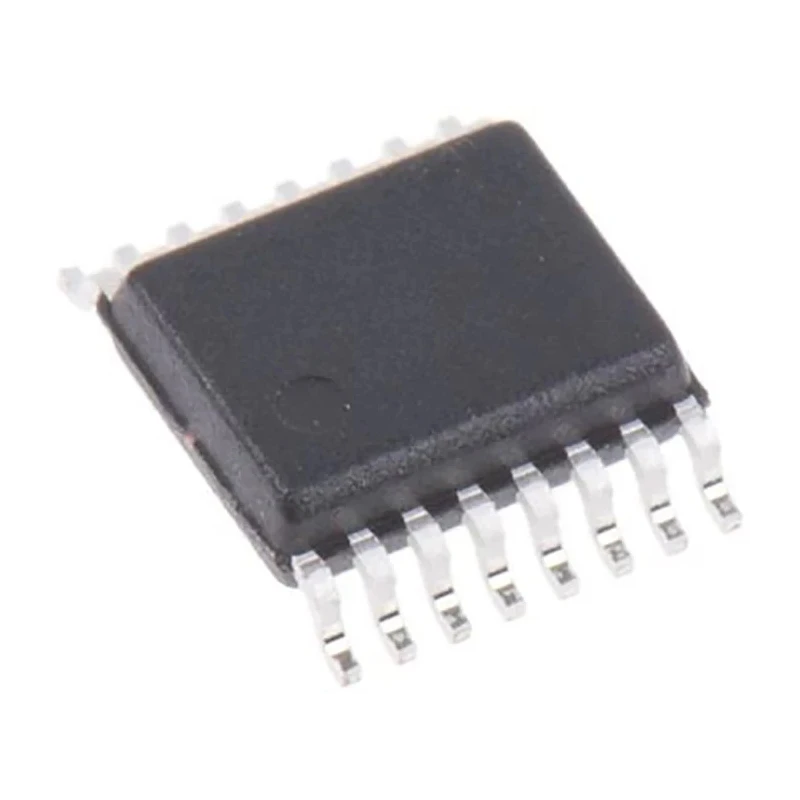

Maxim Integrated 8-Bit 4-Channel SPI Digital to Analogue Converter DAC QSOP 16-Pin MAX534BCEE+

Name: Maxim Integrated 8-Bit 4-Channel SPI Digital to Analogue Converter DAC QSOP 16-Pin MAX534BCEE+
Brand: Maxim Integrated
SKU: 159918
Price: 9.09 USD
Availability: InStock



Category Digital to Analogue Converter Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Resolution	8 bit
Brand	Maxim Integrated
Height	1.7mm
Length	4.9mm
Model	MAX534BCEE+
Width	3.9mm
Mount Type	Surface
Settling Time	8μs
Output type	Analogue Voltage
Maximum Operating Temperature	70°C
Package Type	QSOP
Minimum Operating Temperature	0°C
Number Of Channels	4
Interface Type	SPI
Architecture	Resistor String
Pin Count	16
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V

Key Features

Features 8-bit resolution for accurate analogue voltage generation.
Supports 4 independent output channels for multi-signal applications.
Operates with a supply voltage range of 5V to 5.5V.
Compact 16-pin QSOP surface mount package with 4.9mm length and 3.9mm width.
Fast settling time of 8 microseconds for rapid signal response.
Operating temperature range from 0°C to 70°C for reliable industrial use.
Uses SPI interface for efficient serial communication with controllers.
No automotive certification, designed for general industrial and electronic applications.

Product Description

Maxim Integrated MAX534BCEE+ is a high-performance 8-bit digital to analogue converter (DAC) featuring four independent output channels and an SPI interface, housed in a 16-pin QSOP surface mount package. Its resistor string architecture delivers reliable and precise analogue voltage outputs ideal for industrial, laboratory, and electronic circuit applications where multiple DAC outputs are required simultaneously.

This DAC operates at standard 5V supply with a maximum voltage of 5.5V, ensuring compatibility with a wide range of electronic systems. The device’s fast settling time of 8 microseconds allows for quick and accurate signal updates, enhancing system responsiveness.

Designed for surface mounting, the compact QSOP package (4.9mm length, 3.9mm width, and 1.7mm height) helps conserve PCB real estate without compromising functionality. Operating over a temperature range of 0°C to 70°C, it is suited for typical commercial and industrial environments.

The use of an external voltage reference allows for flexible system design and better precision scaling. The SPI communication interface facilitates efficient digital control of analogue output signals, making MAX534BCEE+ well suited for embedded systems, data acquisition, industrial control, and instrumentation.

This product has no specific automotive approvals but meets general semiconductor standards. It is designed to output analogue voltage signals in advanced electronic circuits. Features 8-bit resolution with a resistor string architecture for precise DAC output.

Includes four output channels, enabling control of multiple analogue signals. Surface mount QSOP 16-pin packaging optimizes PCB layout and footprint. Fast settling time of 8μs improves signal transition performance. Supports SPI interface for flexible digital communication.

External voltage reference inputs for scalable voltage output customization. Operates reliably at temperatures between 0°C and 70°C with voltage supply from 5V to 5.5V. Compact dimensions: 4.9mm length, 3.9mm width, and 1.7mm height onboard module.

Applicable for industrial, laboratory, HVAC, and electronic instrumentation systems. Explore the range of Maxim Integrated Digital to Analogue Converters at EnvMart for your precise analogue output requirements.
