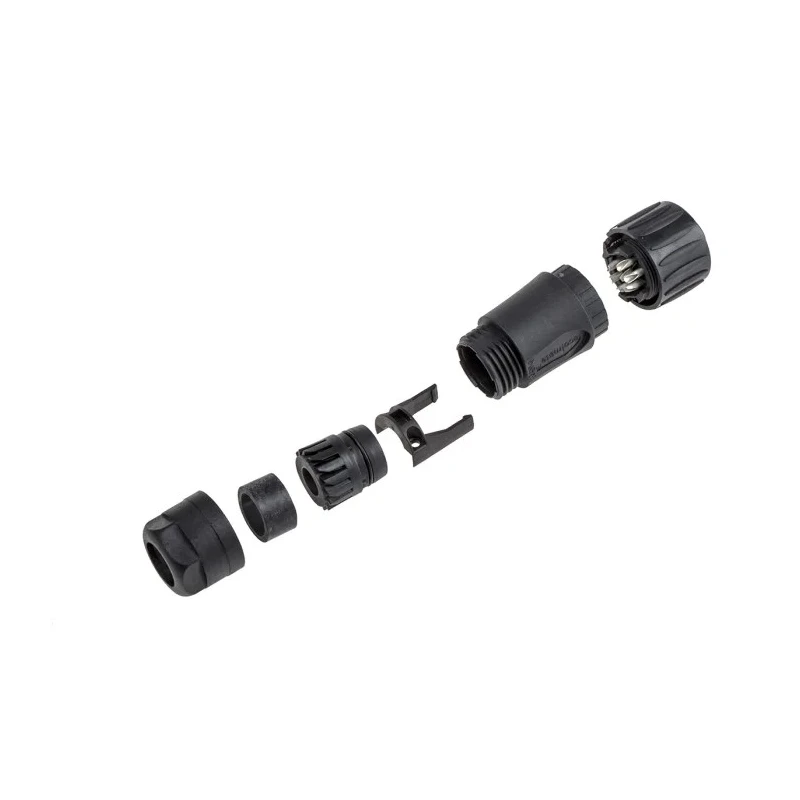

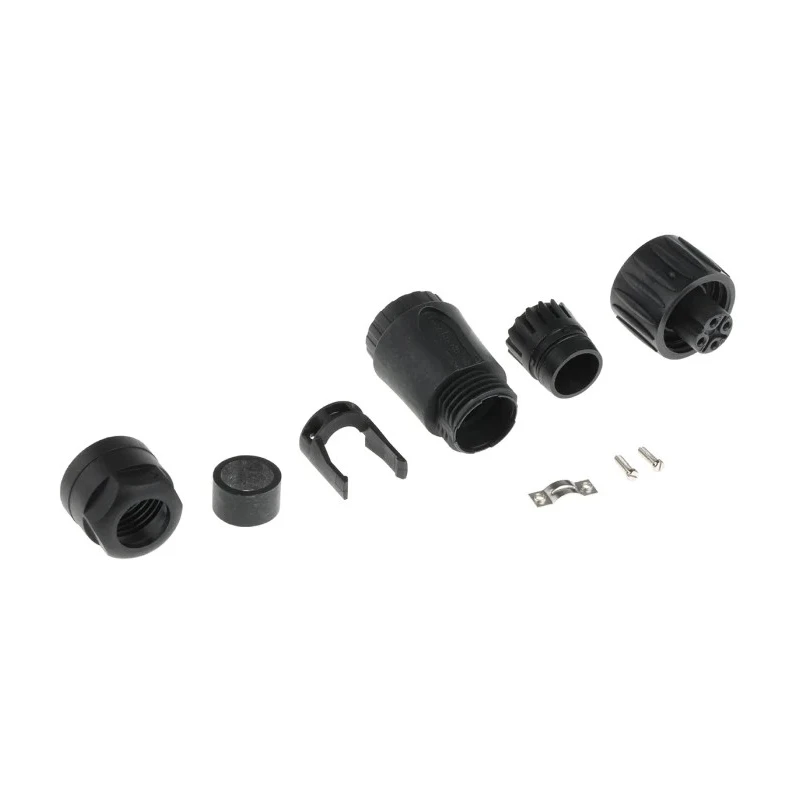

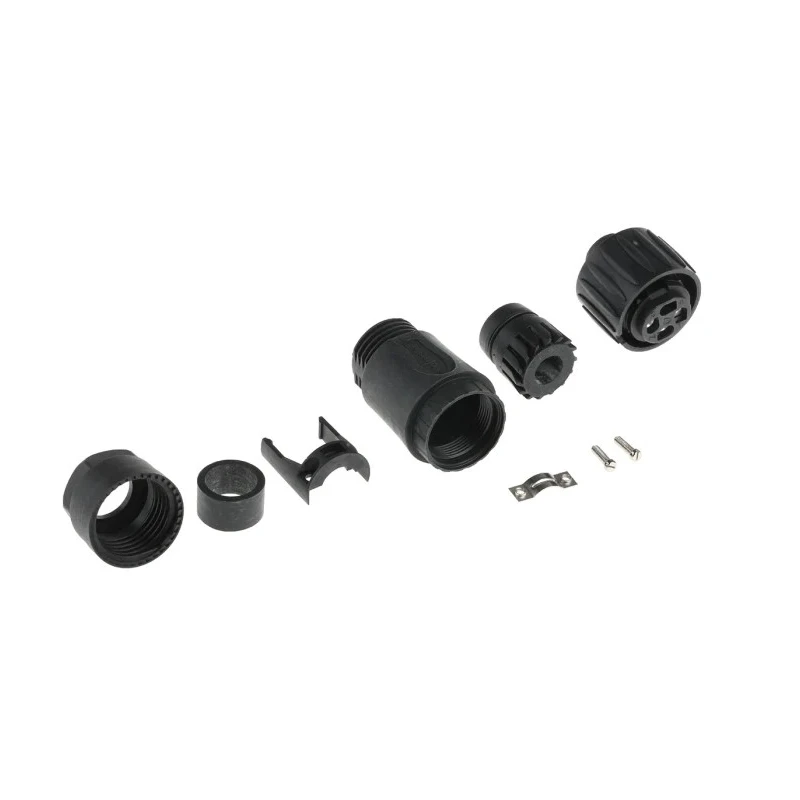

Amphenol Industrial Circular Connector 3 Contacts Cable Socket Female IP67 400V 16A Ecomate M Series C016 20D003 110 12
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 400V |
| Brand | Amphenol Industrial |
| Orientation | Straight |
| Current | 16A |
| Model | C016 20D003 110 12 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Series | Ecomate M |
| Termination Type | Screw |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3+PE |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 30 mm |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| RS PRO Circular Connector, 4 Contacts, Cable, Plug, Female, IP67Brand | RS PRO |
Key Features
- Suitable for industrial and automation applications requiring high environmental protection.
- Supports current rating of 16A and voltage up to 400V.
- Features a durable polymer housing and silver-plated contacts for corrosion resistance.
- Provides a threaded coupling mechanism to ensure secure, vibration-resistant mating.
- Operates reliably in temperatures ranging from -40°C to 100°C.
- Designed with internal strain relief and cable clamping for mechanical robustness.
- IP67 rated for dust-tight and waterproof protection when mated.
- Ergonomic design allows easy handling and rapid assembly on site.
Product Description
Amphenol Industrial C016 20D003 110 12 is a high-performance circular connector from the Ecomate M Series, featuring 3 contacts plus PE designed for cable mounting. This cable socket with female contacts is engineered for heavy-duty industrial usage, offering reliable power and signal connections in harsh environments.
The robust polymer housing combined with silver-plated contacts ensures excellent resistance against shock, vibration, corrosion, and chemical exposure. The connectors utilize a threaded coupling system with an ergonomic locking ring for secure, tamper-resistant connections, mitigating accidental disengagement during operation.
Rated IP67, these connectors provide complete protection against dust ingress and temporary immersion in water up to 1 meter for 30 minutes, making them suitable for demanding industrial installations, process control systems, automation equipment, sensors, and switches.
With operating temperature capability from -40°C to 100°C and current capacity of 16A at 400V, these connectors serve as rugged and versatile components for control valves, transportation systems, and electrical installation projects. Their quick assembly via screw termination supports rapid repair and maintenance, reducing downtime effectively.
The EcoMate C16-1 series is UV resistant and complies with UL94 V-0 flammability standards, enhancing the safety and longevity of the connection in outdoor or chemically aggressive environments.
Provides a circular connector with 3+PE contact configuration and screw termination type. Operates reliably under a wide temperature range from -40°C to 100°C. The robust polymer body resists impact, vibration, and UV exposure.
Ensures secure connection via threaded coupling and locking ring to prevent accidental disengagement. Designed for industrial, automation, process control, and transportation applications requiring IP67 protection. Enables quick assembly and onsite maintenance, minimizing downtime.
Manufactured in Czech Republic to high-quality standards. Discover the full range of Amphenol Industrial Circular Connectors and accessories for your demanding electrical and automation needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 16A and a voltage rating of up to 400V.
It is rated IP67, providing complete protection against dust ingress and temporary immersion in water up to 1 meter for 30 minutes.
It operates reliably in temperatures ranging from -40°C to 100°C.
The housing is made of durable polymer, and the contacts are silver-plated for corrosion resistance.
This model features 3 contacts plus a protective earth (PE) contact.
It utilizes a screw termination type for secure connections.
It features a threaded coupling mechanism for secure, vibration-resistant mating.
It is manufactured in the Czech Republic.
It is designed for industrial and automation applications, including process control systems and transportation systems.
The shell size of this model is 30 mm.
Yes, it is designed with internal strain relief and cable clamping to enhance mechanical robustness.
This connector is part of the Ecomate M Series.
