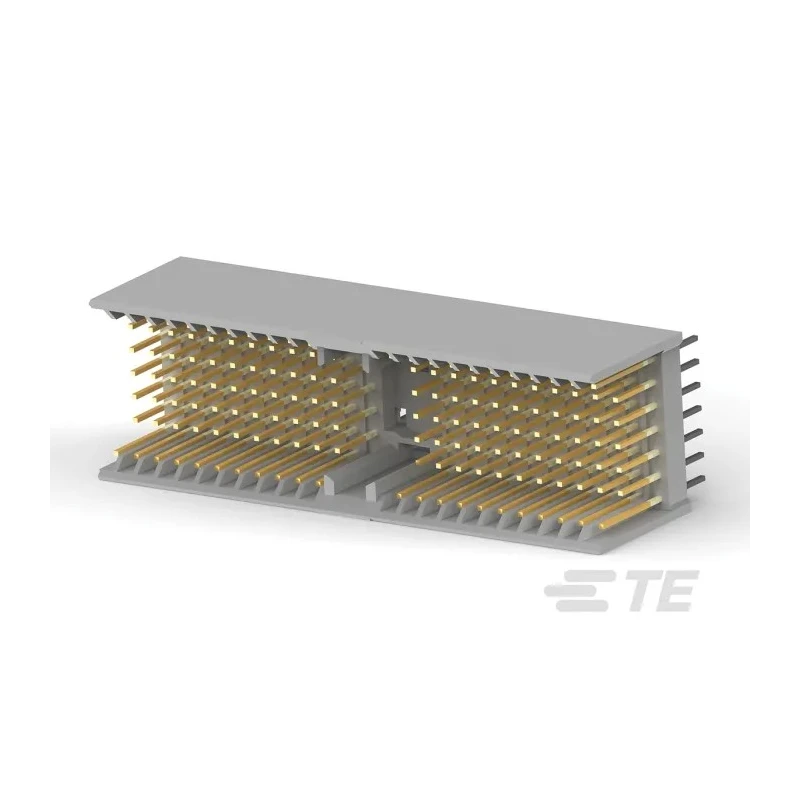

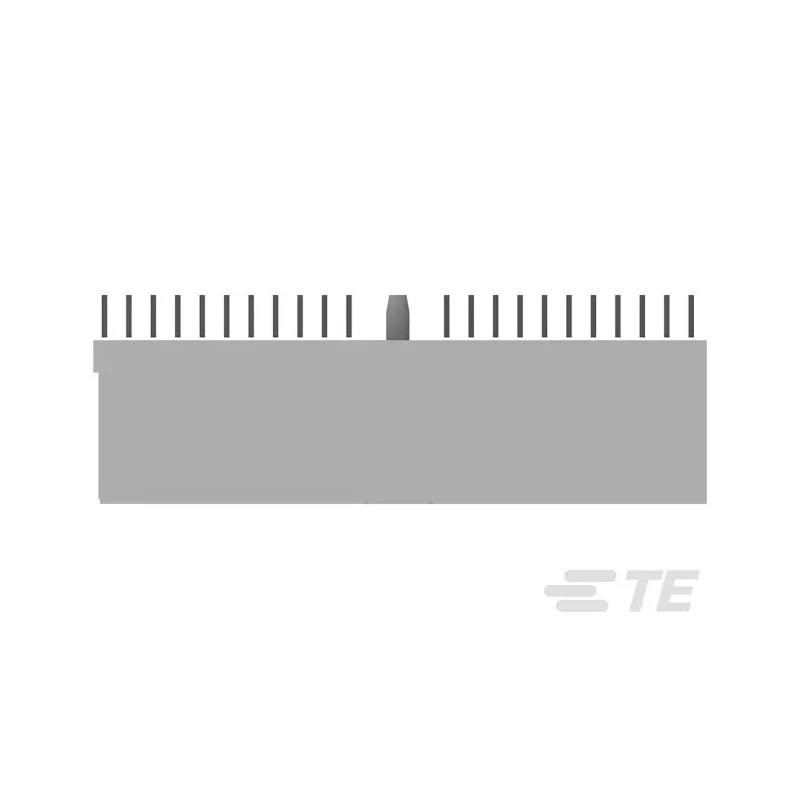

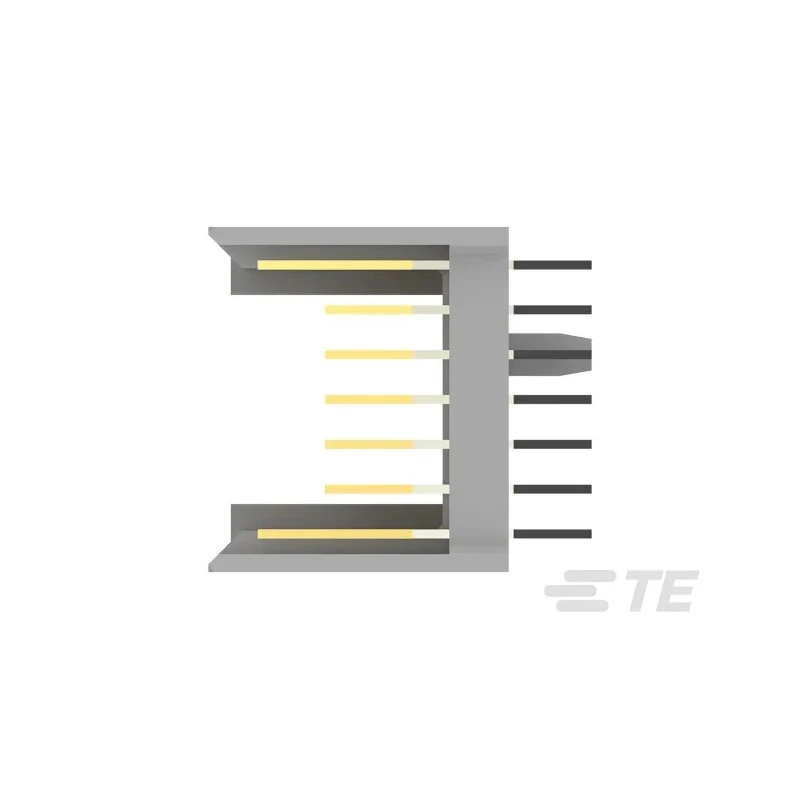

TE Connectivity 2 mm Pitch Hard Metric Type A Vertical Male Backplane Connector, 22 Column, 7 Row, 154 Way 5100668-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Vertical |
| Current | 1.5A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | 5100668 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 7 |
| Number of columns | 22 |
| Pitch | 2mm |
| Contact Plating | Nickel, Tin |
| Number of Contacts | 154 |
| Contact Gender | Male |
| Connector Gender | Male |
| Backplane Connector Type | Hard Metric Type A |
Key Features
- This connector has 154 contact points arranged in 22 columns and 7 rows.
- Constructed with a durable polyester housing for longevity and electrical insulation.
- Contact material of phosphor bronze ensures reliable conductivity and mechanical strength.
- Contact plating includes nickel and tin for corrosion resistance and enhanced signal integrity.
- The connector supports a current rating of 1.5A suitable for moderate power applications.
- Designed for through-hole mounting type providing secure solder termination.
- Operating temperature range spans from -55°C to 125°C to suit harsh industrial environments.
- Termination is by solder ensuring firm mechanical and electrical connections.
Product Description
TE Connectivity 5100668-1 is a high-performance backplane connector designed with a 2 mm pitch Hard Metric Type A configuration. It is a vertical male connector featuring 154 contacts arranged specifically in 22 columns and 7 rows, facilitating complex electronic assembly interconnections.
The housing material is polyester which offers excellent mechanical strength and electrical insulation, suitable for demanding electronic and electrical environments. The contacts are made from phosphor bronze, known for excellent conductivity and durability, with nickel and tin plating providing corrosion resistance and improved signal reliability.
Supporting a current rating of 1.5A, this connector balances power handling and compact contact density effectively. It is designed for through-hole mounting with solder termination, resulting in robust connections within printed circuit boards or backplane interfaces.
Operating across a wide temperature range from -55°C to 125°C, the connector is suitable for various industrial, manufacturing, and electronic applications where reliability under thermal stress is critical.
This backplane connector is ideal for use in industrial electronics, telecommunications equipment, data centers, computing hardware, and related commercial and manufacturing sectors where high-density and high-integrity electrical connections are essential.
This connector has 154 contact points arranged in 22 columns and 7 rows. Constructed with a durable polyester housing for longevity and electrical insulation. Contact material of phosphor bronze ensures reliable conductivity and mechanical strength.
Contact plating includes nickel and tin for corrosion resistance and enhanced signal integrity. The connector supports a current rating of 1.5A suitable for moderate power applications. Designed for through-hole mounting type providing secure solder termination.
Operating temperature range spans from -55°C to 125°C to suit harsh industrial environments. Termination is by solder ensuring firm mechanical and electrical connections. Connector gender is male with vertical orientation enabling backplane connectivity in electronic assemblies.
Package typically includes the backplane connector in a tube packaging quantity of 10 units, ensuring batch handling and supply chain efficiency. Explore EnvMart categories for comprehensive selection of TE Connectivity Backplane Connectors and related electronic components designed for professional industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1.5A, suitable for moderate power applications.
The connector features a 2 mm pitch configuration.
It has a total of 154 contacts arranged in 22 columns and 7 rows.
The housing is made of polyester, while the contacts are constructed from phosphor bronze with nickel and tin plating.
Termination is by solder, ensuring firm mechanical and electrical connections.
The connector has a vertical orientation, enabling effective backplane connectivity.
It is designed for through-hole mounting, providing secure solder termination.
The connector features male contacts, which are suitable for various electronic assemblies.
The connector is manufactured in China.
It is typically packaged in a tube containing a quantity of 10 units, ensuring batch handling efficiency.
