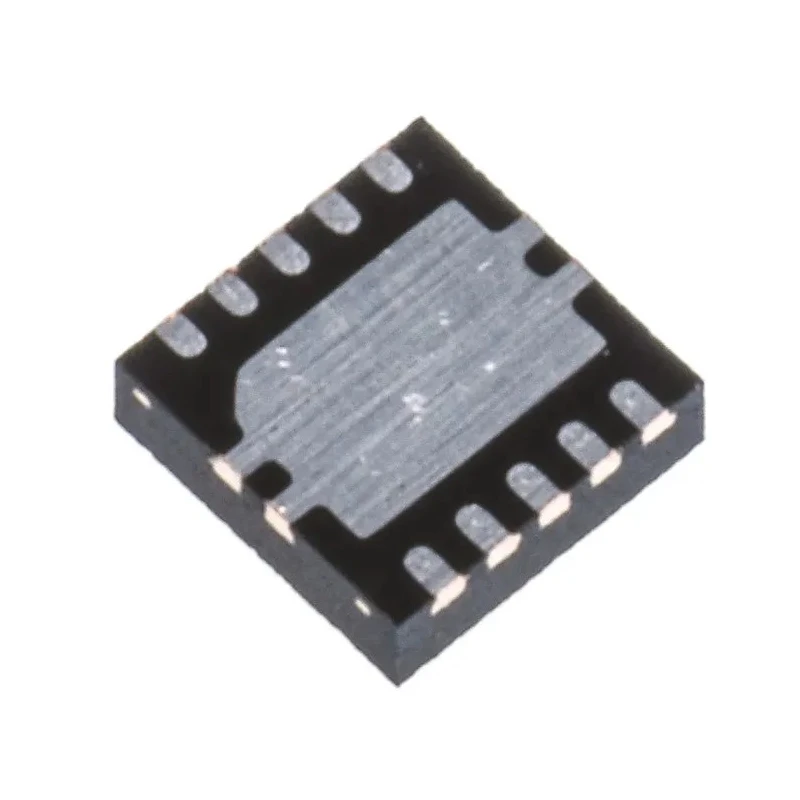

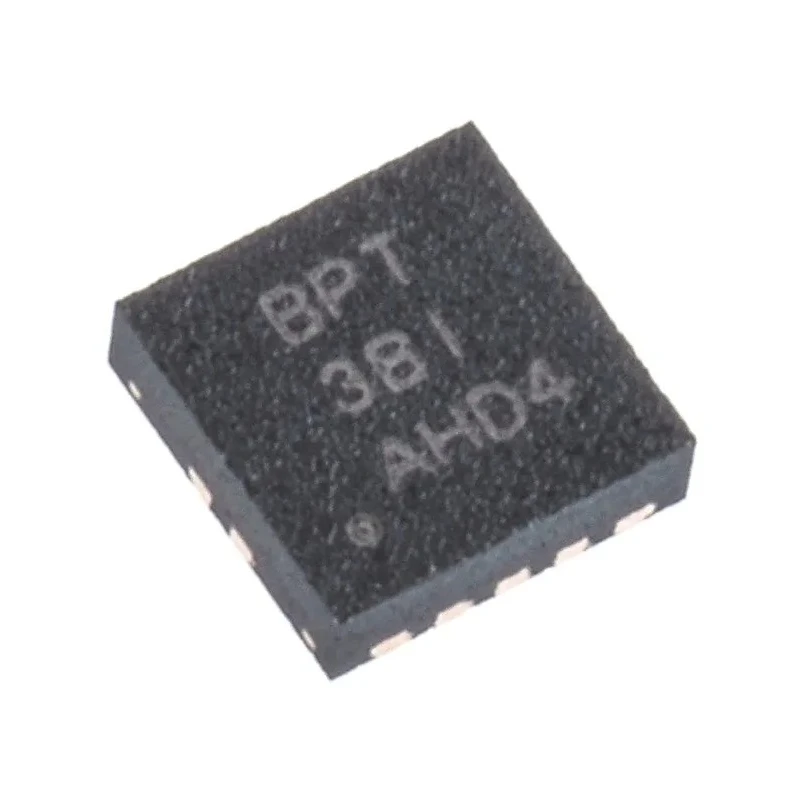

Texas Instruments 5-Channel Buck, Boost, Buck Boost Switching Regulator 1.2A 5.5V 1500 kHz SON 10-Pin TPS63000DRCT

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 5-Channel Buck, Boost, Buck Boost Switching Regulator 1.2A 5.5V 1500 kHz SON 10-Pin TPS63000DRCT

Name: Texas Instruments 5-Channel Buck, Boost, Buck Boost Switching Regulator 1.2A 5.5V 1500 kHz SON 10-Pin TPS63000DRCT
Brand: Texas Instruments
SKU: 159383



Category Voltage Regulators Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	900μm
Length	3mm
Model	TPS63000DRCT
Width	3mm
Mount Type	Surface
Output type	Adjustable
Series	TPS6300x
Output Current	1.2A
Maximum Operating Temperature	85°C
Package Type	SON
Load Regulation	0.5 %
Minimum Operating Temperature	-40°C
Regulator Type	Buck, Boost
Switching Frequency	1500kHz
Number of outputs	5
Maximum Input Voltage	5.5V
Output Voltage	5.5V
Quiescent Current	50μA
Line Regulation	0.5 %
Standards/Approvals	RoHS
Minimum Input Voltage	1.8V
Pin Count	10

Key Features

Supports buck, boost, and buck-boost regulator types for versatile voltage regulation.
Operates at a high switching frequency of 1500 kHz for improved efficiency.
Compact SON 10-pin surface mount package with dimensions 3mm x 3mm x 0.9mm.
Low quiescent current of 50 μA ensures minimal power loss during standby.
Adjustable output voltage and load/line regulation of 0.5% for stable performance.
Wide operating temperature range from -40°C to 85°C for robust industrial use.
Suitable for battery-powered and portable applications due to integrated step-up/down functions.
RoHS compliant and compatible with various power management IC applications.

Product Description

Texas Instruments TPS63000DRCT is a highly efficient 5-Channel buck, boost, and buck-boost switching regulator designed for DC to DC conversion. Featuring an integrated switch and single inductor, it automatically transitions between step-down and step-up modes, making it ideal for battery-powered products such as cellular phones and handheld devices. The device supports up to 1.2A output current with an adjustable output voltage of 5.5V and operates at a switching frequency of 1500 kHz, ensuring high efficiency and fast transient response.

Encased in a compact SON 10-pin surface mount package measuring 3mm by 3mm with a height of 900μm, this regulator fits in space-constrained designs. The TPS63000DRCT offers line and load regulation within 0.5%, a low quiescent current of 50 μA, and functions over a wide temperature range of -40°C to 85°C, making it suitable for demanding industrial and commercial applications.

This switching regulator complies with RoHS standards, ensuring environmental safety. It is a valuable solution for power management in portable electronics, providing reliable voltage regulation for various electronics and power management IC applications.

Supports buck, boost, and buck-boost regulation for versatile voltage control. High switching frequency of 1500 kHz optimizes efficiency and performance. Low quiescent current preserves battery life in portable devices. Compact SON 10-pin package suitable for space-limited PCB layouts.

Wide operating temperature range ensures robust performance in harsh environments. Adjustable output voltage and tight regulation for stable power delivery. RoHS compliant for environmentally conscious designs. Ideal for use in industrial, portable, and consumer electronic devices requiring efficient power management.

Explore more Voltage Regulators and power management solutions in EnvMart’s extensive electronic components catalog.
