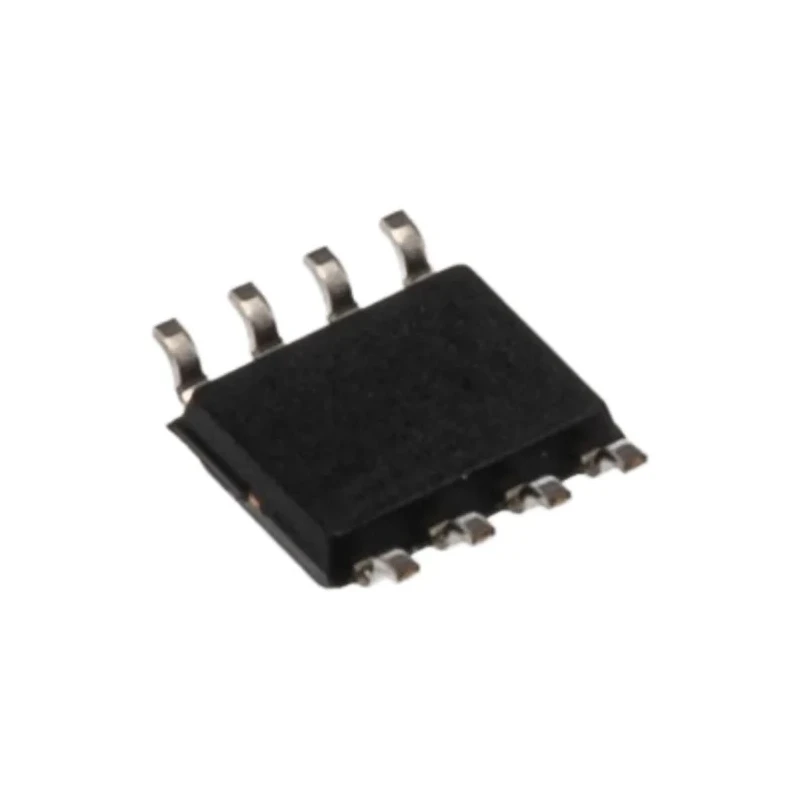

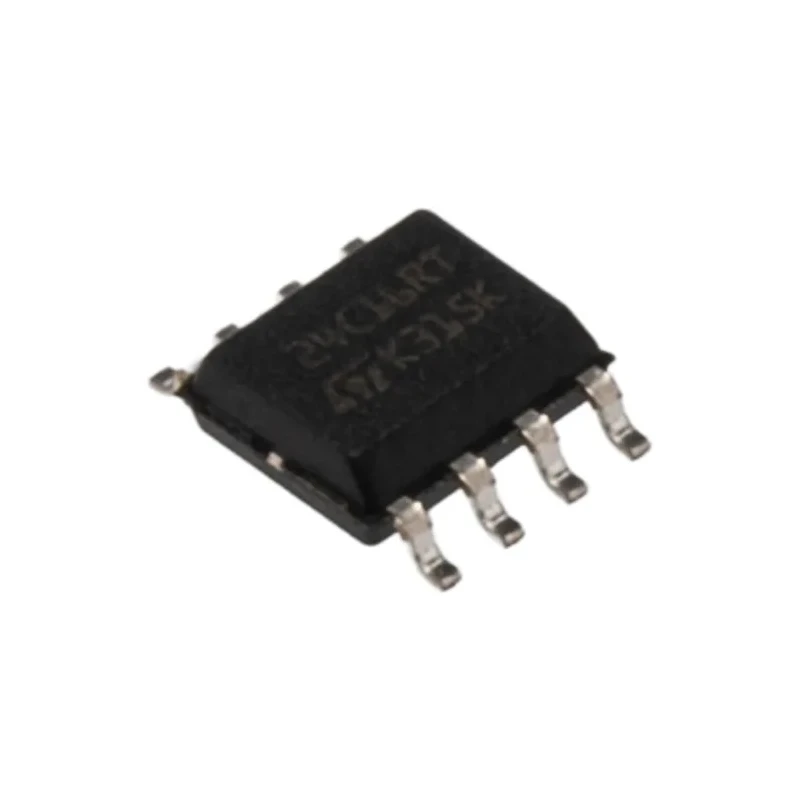

STMicroelectronics 16 kB EEPROM 450 ns 8-Pin SOIC Serial-I2C M24C16-DRMN3TP/K

STMicroelectronics M24C16-DRMN3TP/K is a high reliability 16 kB EEPROM memory chip with a maximum random access time of 450 ns. Enclosed in a compact 8-pin SOIC surface-mount package, this memory chip supports communication via serial I2C interface at up to 1 MHz frequency, making it suitable for a wide range of electronic applications including industrial, automotive, consumer electronics, and embedded systems.

This EEPROM offers a memory organization of 2 K x 8 bits, with a page size of 16 bytes allowing efficient writing cycles. The device operates over an extended voltage range of 1.7 V to 5.5 V and an operating temperature range from -40°C to 125°C, supporting robust performance in harsh environmental conditions. The supply current is low at 2 mA during operation, helping to reduce overall power consumption.

With a data retention guarantee of up to 100 years and a write endurance of 4 million cycles at 25 °C, it ensures long-term reliability for critical data storage. An additional write-lockable identification page provides extra security features. The chip incorporates Schmitt trigger inputs to enhance noise immunity on the data lines, further improving reliability in noisy electrical environments.

Compliant with the automotive qualification standard AEC-Q100, the M24C16-DRMN3TP/K EEPROM is particularly well-suited for automotive and industrial systems requiring high endurance and stability. Its halogen-free packaging aligns with environmental safety requirements.

Memory size of 16 kB suitable for storing data efficiently. Supports I2C interface with maximum clock frequency of 1 MHz. Operates over a voltage range from 1.7 V to 5.5 V. Extended operating temperature from -40°C to 125°C for industrial use.

Low supply current of 2 mA ensures energy-efficient operation. Page write size of 16 bytes for efficient data management. Durable with data retention up to 100 years and write cycle endurance up to 4 million cycles at 25°C.

Designed according to automotive standard AEC-Q100. Surface mount SOIC package with 8 pins facilitates easy PCB mounting. Schmitt trigger inputs for noise filtering improve signal integrity.

This STMicroelectronics EEPROM memory device is ideal for use in industrial tools, automotive electronics, embedded systems, and other semiconductor-dependent applications needing stable and reliable non-volatile memory.
