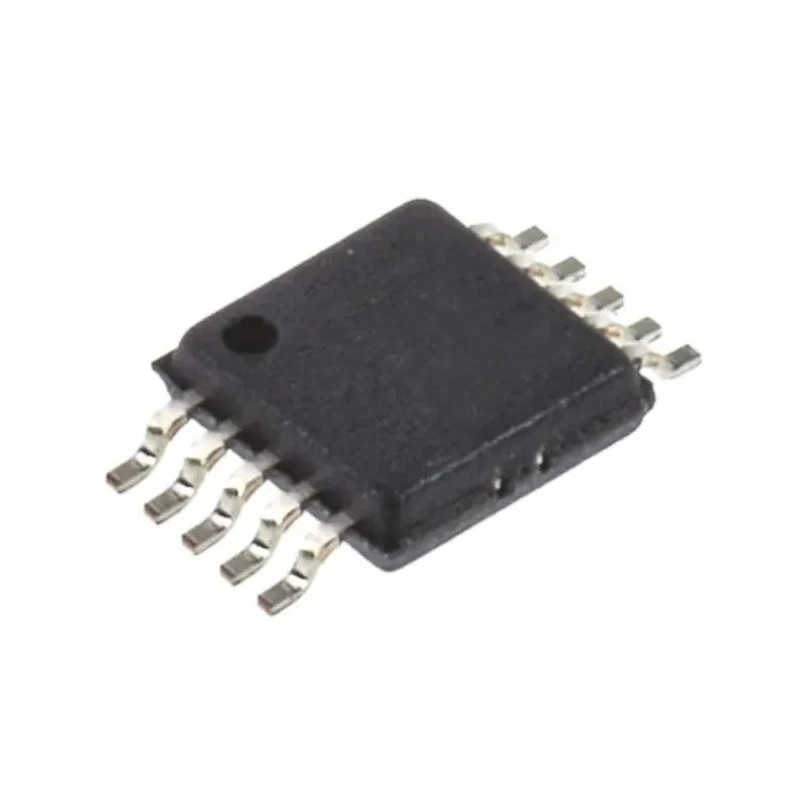

Maxim Integrated Operational Amplifier 1.4 MHz, Surface Mount 10-Pin 5.5V μMAX MAX9924UAUB+T

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated Operational Amplifier 1.4 MHz, Surface Mount 10-Pin 5.5V μMAX MAX9924UAUB+T

Name: Maxim Integrated Operational Amplifier 1.4 MHz, Surface Mount 10-Pin 5.5V μMAX MAX9924UAUB+T
Brand: Maxim Integrated
SKU: 159090



Category Operational Amplifier Brand Maxim Integrated Condition New

Specifications

Country of Origin	Taiwan
Brand	Maxim Integrated
Height	0.95mm
Length	3.16mm
Model	MAX9924UAUB+T
Width	3.12mm
Mount Type	Surface
Series	MAX9924
Maximum Operating Temperature	125°C
Package Type	μMAX
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	10
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
GBP - Gain Bandwidth Product	1.4MHz
Input Bias Current	6 nA
Vos - Input Offset Voltage	3 mV
Slew Rate	2.3V/μs
Input Offset Current	2 nA

Key Features

The device is surface mountable, facilitating easy PCB assembly.
Operates with supply voltages between 4.5V and 5.5V, ideal for low-voltage applications.
Input offset voltage is minimal at 3 mV, providing accurate signal processing.
Slew rate of 2.3 V/μs ensures responsive signal changes.
Can operate over a wide temperature range from -40°C to 125°C for robust industrial usage.
Compact dimensions of 3.16 mm length, 3.12 mm width, and 0.95 mm height enable space-saving designs.
Features single channel operation with 10 pins in μMAX package.
Constructed with a differential input stage providing enhanced noise immunity.

Product Description

Maxim Integrated MAX9924UAUB+T is a high-performance operational amplifier with a gain bandwidth product of 1.4 MHz, designed for applications requiring precise amplification and signal integrity. The device is housed in a compact 10-pin μMAX surface mount package, making it suitable for modern electronic circuit boards with limited space.

This amplifier operates reliably over a wide supply voltage range of 4.5V to 5.5V, supporting low-voltage designs and maintaining stable operation across a wide temperature range from -40°C to 125°C, suitable for demanding industrial and automotive environments.

The input offset voltage is low at 3 mV, and the device offers an input bias current of 6 nA, ensuring minimal signal distortion. The slew rate of 2.3 V/μs enables the amplifier to follow rapid changes in input signals efficiently.

Its differential input stage enhances noise immunity, which is critical in applications such as camshaft VRS interfaces, crankshaft VRS interfaces, and vehicle speed VRS interfaces where signal accuracy is paramount. The internal adaptive peak threshold feature allows user-enabled flexible threshold adjustment, boosting detection capability alongside zero-crossing detection that provides accurate phase information.

Compact physical dimensions of 3.16 mm length, 3.12 mm width, and 0.95 mm height enable integration into dense PCB layouts. Although it does not carry automotive standard certification, its rugged operating temperature range permits use in automotive and industrial sensor interfaces.

The device's surface mount design facilitates automated assembly and efficient manufacturing processes. A precision amplifier and comparator combination supports small-signal detection in various sensor and measurement applications.

User-enabled internal adaptive peak threshold or flexible external threshold adjustment increases versatility. Zero-crossing detection provides reliable, accurate phase information for dynamic signal analysis. Ideal for automotive and industrial equipment involving rotational speed sensing interfaces.

This Operational Amplifier is widely applicable in industrial, automotive sensor interfacing, laboratory testing, and embedded electronics, providing a compact solution for amplification and signal processing tasks. Browse more Amplifiers & Comparators and Op Amps at EnvMart for complementary electronic components.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The gain bandwidth product of this operational amplifier is 1.4 MHz, making it suitable for applications requiring precise amplification and signal integrity.

It operates with supply voltages between 4.5V and 5.5V, which is ideal for low-voltage applications.

The input offset voltage is minimal at 3 mV, providing accurate signal processing.

It can operate over a wide temperature range from -40°C to 125°C, making it suitable for robust industrial usage.

The dimensions are 3.16 mm in length, 3.12 mm in width, and 0.95 mm in height, enabling space-saving designs.

This model features single channel operation with a total of 10 pins in a μMAX package.

The slew rate is 2.3 V/μs, allowing it to efficiently follow rapid changes in input signals.

The input bias current is 6 nA, which helps ensure minimal signal distortion.

It utilizes a surface mount design, facilitating easy PCB assembly and automated manufacturing processes.

It is widely applicable in industrial, automotive sensor interfacing, laboratory testing, and embedded electronics.

Its differential input stage provides enhanced noise immunity, which is critical in applications requiring signal accuracy.

The country of origin for this operational amplifier is Taiwan.
