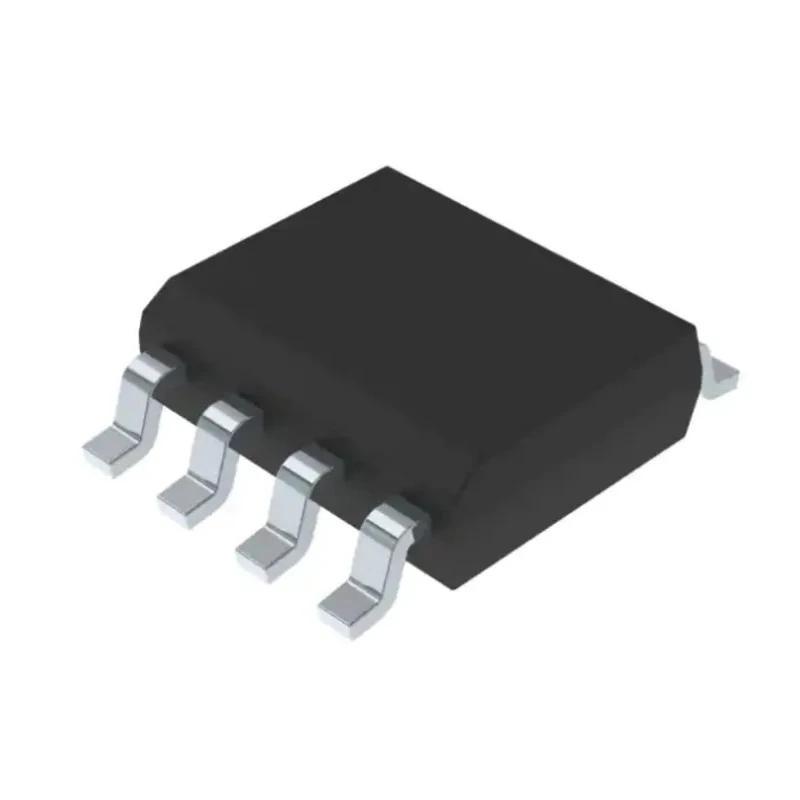

STMicroelectronics MOSFET Gate Driver 12 A 8-Pin SO-8 Package 28V VN7140ASTR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics MOSFET Gate Driver 12 A 8-Pin SO-8 Package 28V VN7140ASTR

Name: STMicroelectronics MOSFET Gate Driver 12 A 8-Pin SO-8 Package 28V VN7140ASTR
Brand: STMicroelectronics
SKU: 159061
Price: 1.31 USD
Availability: InStock



Category MOSFET Gate Driver Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.25mm
Length	5mm
Model	VN7140ASTR
Width	4mm
Mount Type	Surface
Output Current	12A
Maximum Operating Temperature	150°C
Package Type	SO-8
Minimum Operating Temperature	-40°C
Number of outputs	5
Rise Time	70μs
Pin Count	8
Automotive Standard	AEC-Q100
Minimum Supply Voltage	28V
Number of Drivers	1
Fall Time	40μs
Driver Type	MOSFET

Key Features

Operates at a supply voltage of 28 V for reliable gate driving performance.
Compatible with 3 V and 5 V CMOS logic inputs for flexible interfacing.
Provides advanced protective features including load current limitation and thermal shutdown.
Features fast rise time of 70 microseconds and fall time of 40 microseconds for efficient switching.
Package dimensions of 5 mm length, 4 mm width, and 1.25 mm height ensure compact footprint.
Automotive grade AEC-Q100 certified for high reliability under harsh conditions.
Supports operation in extreme temperature ranges from -40°C to 150°C.
Surface-mount (SO-8) form factor for easy PCB assembly.

Product Description

STMicroelectronics VN7140ASTR is a high-performance MOSFET gate driver designed to deliver 12 A output current in a compact 8-pin SO-8 package. It is engineered for automotive and industrial applications requiring robust and efficient power switching.

This gate driver operates at a supply voltage of 28 V and supports 3 V and 5 V CMOS-compatible interfaces, enabling seamless integration with various digital control circuits. It offers advanced protective functionalities such as load current limitation, active overload management, configurable latch-off thermal shutdown, and reverse battery protection when coupled with external components.

The VN7140ASTR features fast switching with rise and fall times of 70 µs and 40 µs respectively, ensuring minimal power loss during transitions. The compact surface-mount SO-8 package (5 mm × 4 mm × 1.25 mm) facilitates space-saving PCB designs essential for modern automotive electronics.

Certified to the AEC-Q100 automotive standard, this device meets stringent quality and reliability requirements for use in challenging environmental conditions. It operates over a wide temperature range of -40°C to 150°C, further supporting its application in harsh industrial environments.

Operates at 28 V supply voltage with 12 A output current capability. Fast rise and fall times enable efficient power switching. Integrates five outputs with electrostatic discharge protection. Incorporates thermal shutdown and load current limitation for enhanced device protection.

Meets automotive AEC-Q100 reliability standards. Compact SO-8 surface-mount package reduces PCB space requirements. Wide operating temperature range from -40°C to 150°C. Compatible with 3 V and 5 V CMOS interfaces for flexible control.

This MOSFET Gate Driver is ideal for automotive power control modules, industrial motor drives, and other high-power switching applications demanding reliability and advanced protection features.
