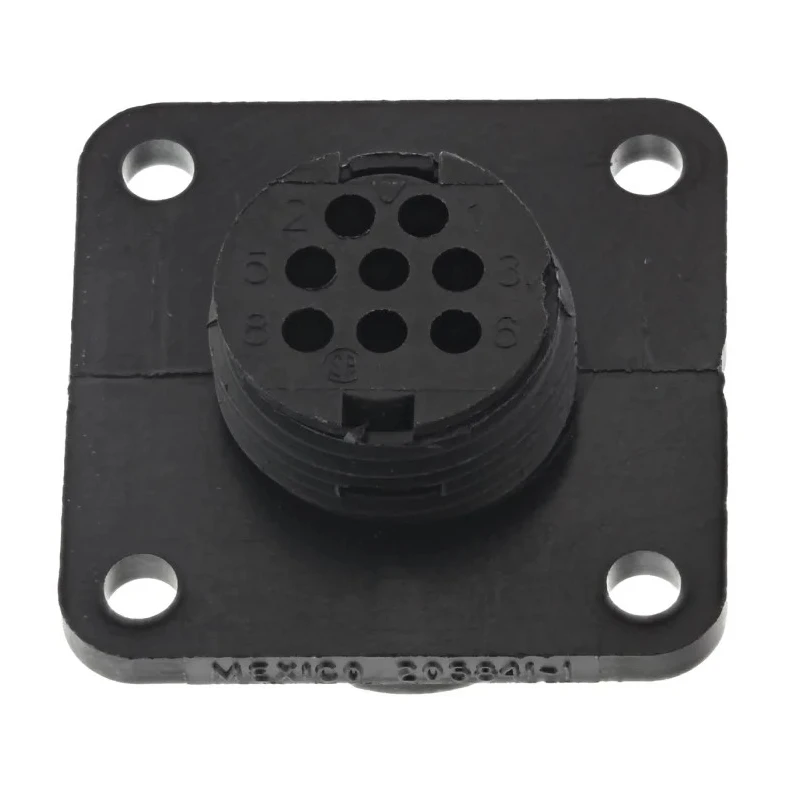

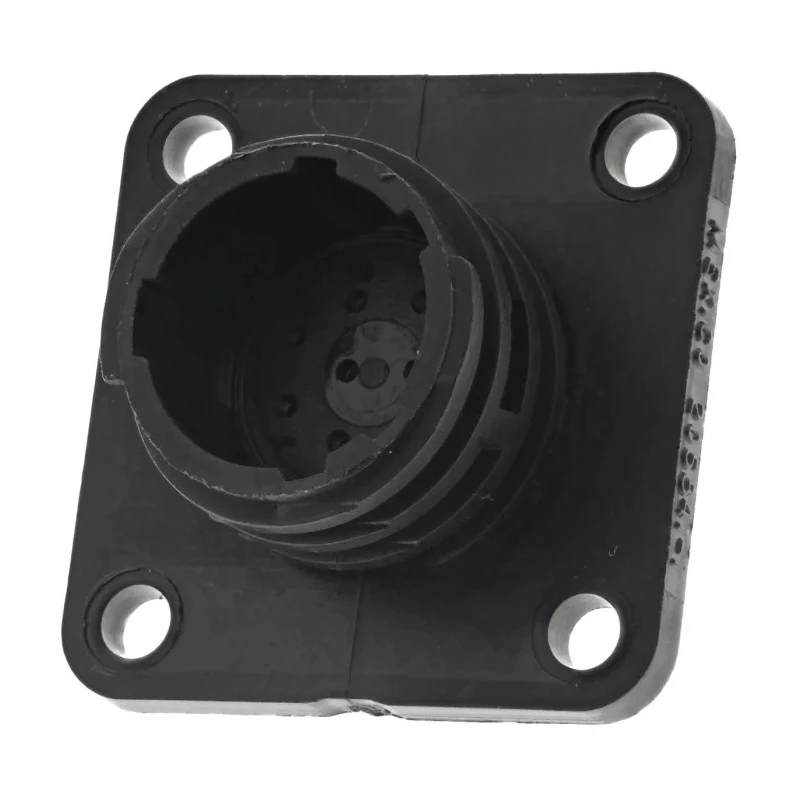

TE Connectivity Circular Connector, 8 Contacts, Panel Mount, Standard Size, Socket, Male, Bayonet Mating, 250V 205841-1

TE Connectivity 205841-1 Circular Connector is an industrial-grade, 8-contact circular socket connector designed for panel mounting. This connector model features male contacts built into a standard-size thermoplastic housing, suitable for demanding electronic and industrial applications that require reliable connector solutions.

Rated for 7.5A current and 250V voltage, the connector supports bayonet-type mating, providing secure and efficient locking for connections that need quick and dependable assembly and disassembly. The straight orientation facilitates easy installation on panels in various equipment.

Constructed with a durable thermoplastic housing and nickel-plated contacts, this connector offers excellent corrosion resistance and long-term robustness to withstand harsh environments. It operates reliably over a wide temperature range from -55°C minimum to 105°C maximum, allowing use in extreme temperature conditions common to industrial settings.

The connector uses crimp termination type contacts for strong mechanical and electrical connections in wiring. This product is part of the CPC series and complies with industry-recognized certifications including CSA, RoHS, and UL 94V-0, ensuring safety and environmental compliance.

Features a standard size shell with bayonet mating for reliable and quick connection. Designed for a current rating of 7.5A and an operating voltage of 250V. Thermoplastic housing ensures durability and resistance to environmental factors.

Suitable for a temperature range from -55°C to 105°C for versatile use. Contact plating with nickel provides corrosion resistance and reliable conductivity. Male contacts and crimp termination type for secure and stable wiring connections.

CPC series connector with straight orientation for panel mounting. Approved to CSA, RoHS, and UL 94V-0 standards, ensuring compliance with safety and environmental regulations.

This circular connector is ideal for use in electronics, industrial automation, power distribution systems, control panels, and other applications requiring reliable panel-mount connection with environmental resistance.
