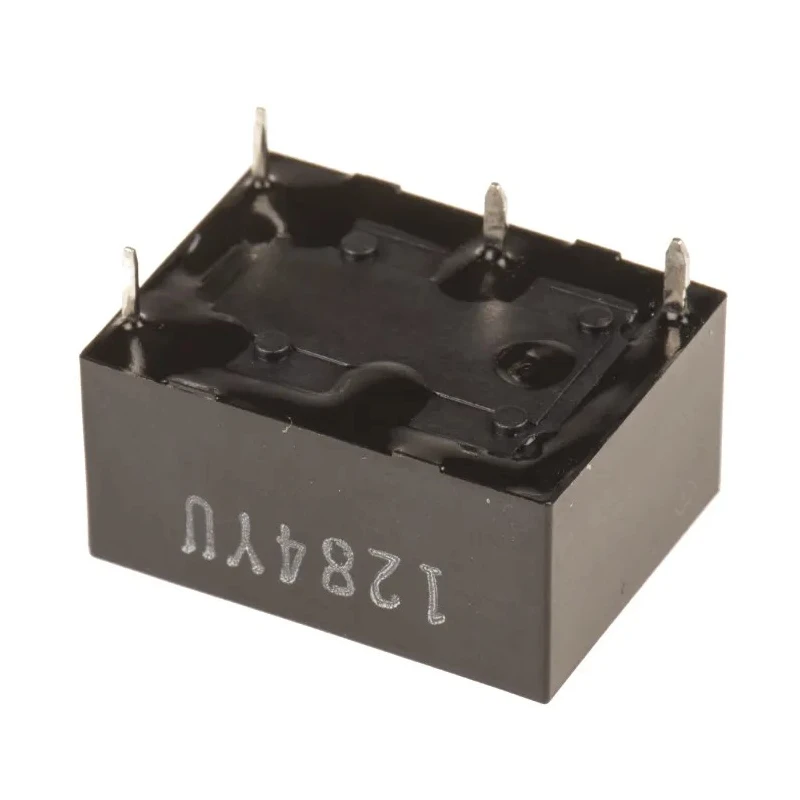

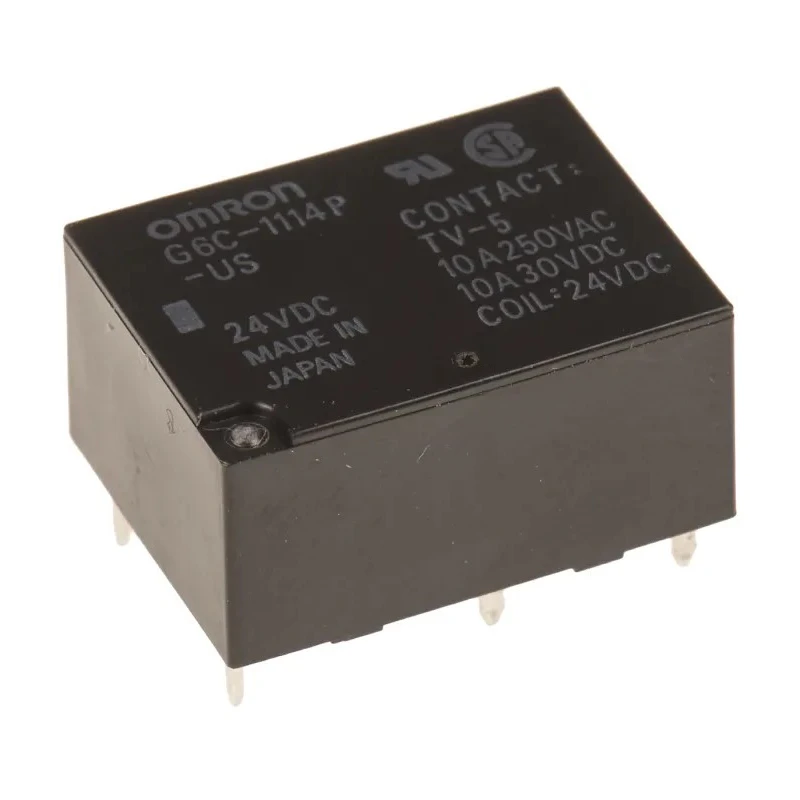

Omron PCB Power Relay 24V DC Coil 10A Switching Current SPST G6C-1114P-US DC24

Omron G6C-1114P-US DC24 PCB Power Relay is a highly reliable switching device designed for industrial and electronic assembly applications requiring efficient control with low power consumption. Featuring a 24V DC coil voltage and a robust 10A switching current, this single pole single throw (SPST) relay ensures dependable contact switching performance, ideal for PCB mounting with solder terminals.

This relay incorporates compact dimensions (20mm length x 15mm width x 10mm height), making it suitable for space-constrained circuit designs. Its coil resistance of 2.9kΩ and low coil power of 200mW enhance its efficiency. The contact material is silver alloy, providing excellent electrical conductivity and long component life. The contact resistance is minimal at 30mΩ, ensuring reduced power losses.

Suitable for industrial, automation, electrical, and signal conditioning applications, it supports AC switching voltages up to 380V and DC switching voltages up to 125V with a switching power capacity of 2.5kVA. Operating temperature ranges from -25°C to 70°C, allowing use in diverse environmental conditions.

Omron's G6C Series includes features such as RoHS compliance and options for sealed or flux protection models. These relays are widely used in manufacturing, HVAC systems, process control, and laboratory equipment for reliable electrical switching.

Operates at coil voltage of 24V DC with 10A switching current rating. Single Pole Single Throw contact type provides straightforward on/off switching. Compact size facilitates integration into PCBs and electronic assemblies.

Low coil power consumption of 200mW promotes energy savings. Silver alloy contacts ensure high conductivity and longevity. Wide operating temperature range supports various industrial environments. Solder terminal mount allows secure PCB installation.

Compliant with RoHS environmental standards. Contact resistance as low as 30mΩ improves efficiency.

This Omron power relay is an ideal solution for precise switching control in electrical and industrial automation sectors. Its design and specifications align with common industry requirements for performance, durability, and compliance. Explore more products in the Power Relays category at EnvMart for comprehensive industrial electrical components.
