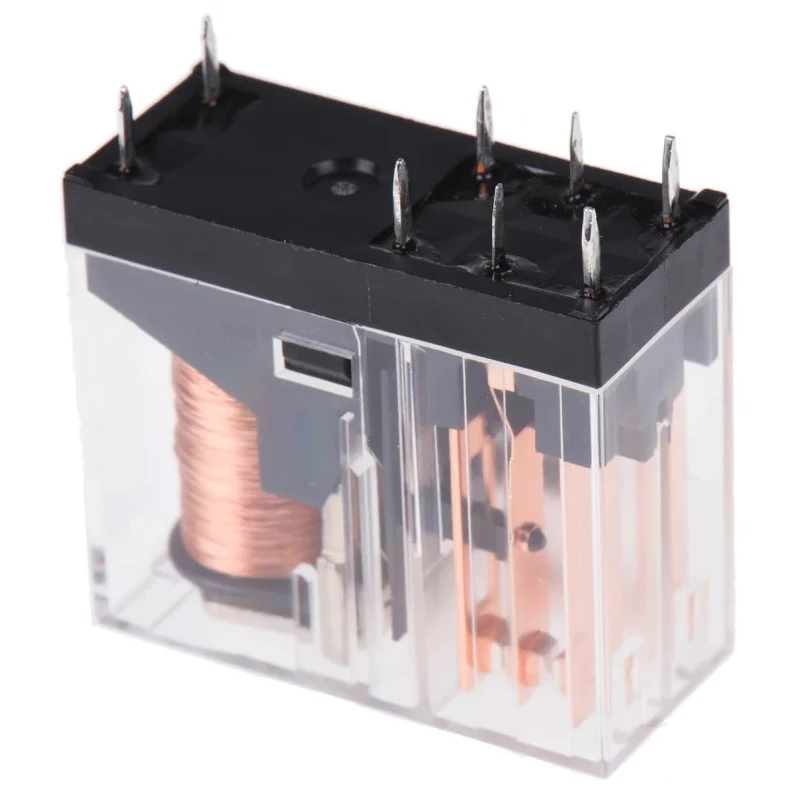

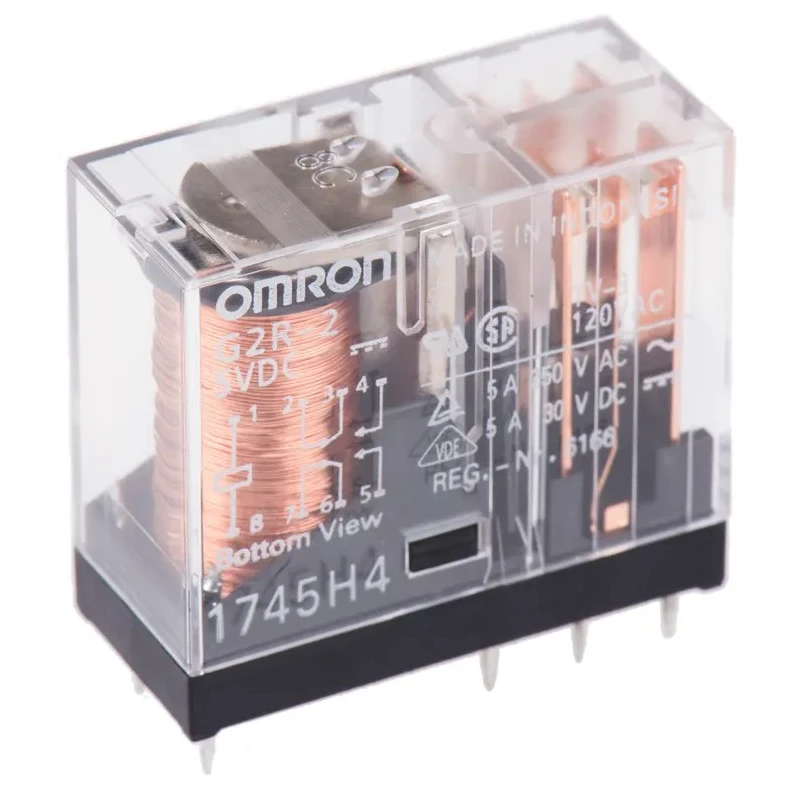

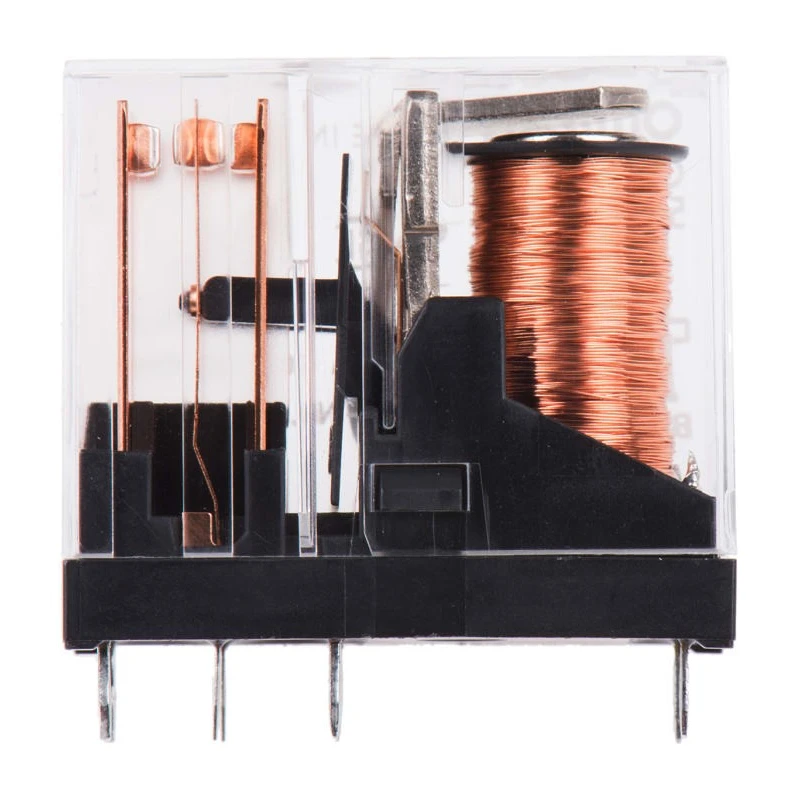

Omron PCB Power Relay 5V DC Coil 5A Switching Current DPDT G2R-2 DC5

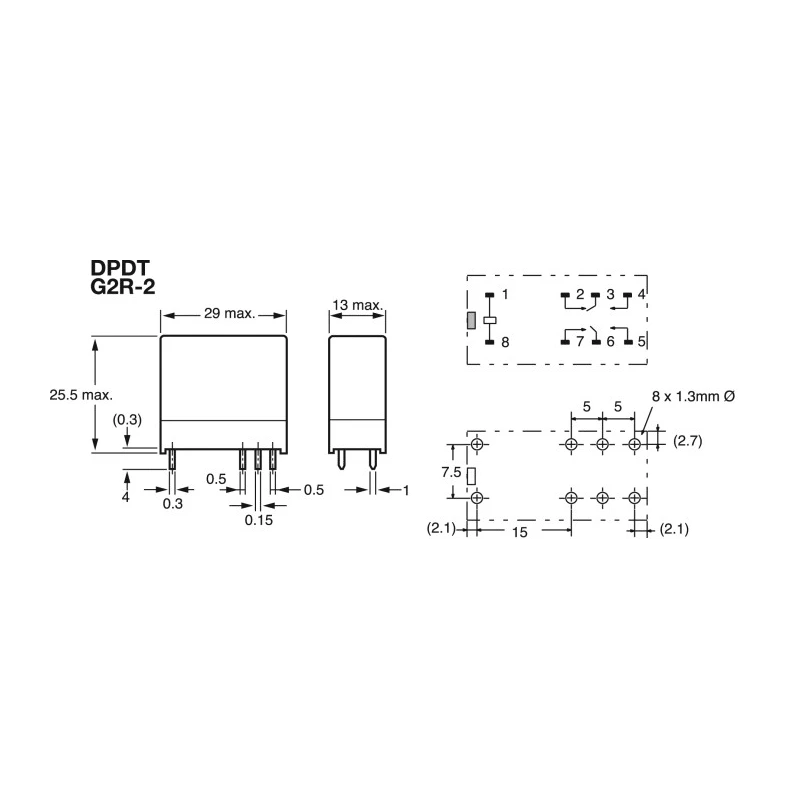

Omron G2R-2 DC5 PCB Power Relay is a high-quality general-purpose power relay designed for various industrial, domestic, and commercial automation applications. It operates with a 5V DC coil voltage and features a DPDT (Double Pole Double Throw) contact configuration, supporting switching currents of up to 5 amperes. The relay’s compact dimensions of 25.5mm in height, 13mm in width, and 29mm in length make it suitable for PCB mounting in tight spaces.

Equipped with silver alloy contact material, this relay ensures low contact resistance of 30 milli-ohms, contributing to reliable electrical performance and durability. The coil resistance measures 47 ohms with a coil power consumption of approximately 0.53 VA, enabling efficient electromagnetic operation. The relay supports switching DC voltages up to 125V and AC voltages up to 440V for versatile control circuit requirements.

Designed to withstand diverse environments, this relay operates within a temperature range of -40°C to 70°C. It complies with RoHS environmental standards, ensuring it meets international safety and quality regulations. The relay series G2R-2 is widely recognized for robustness and high switching performance in signal conditioning and power relay applications.

This relay features a DPDT contact configuration suitable for various control circuits. Operates with a 5V DC coil voltage ensuring efficient electromagnetic switching. Capable of switching currents up to 5A for both AC and DC applications.

Compact PCB mountable relay measuring 25.5mm height x 13mm width x 29mm length. Coil resistance of 47 ohms for stable coil performance and power consumption. Contact material made of silver alloy providing low contact resistance and durability.

Wide operating temperature range from -40°C to 70°C for diverse environments. Certified compliant with RoHS standards for environmental safety. Designed for general-purpose domestic and commercial electronic applications.

Manufactured in Indonesia with proven quality and reliability.

This Omron PCB Power Relay is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and any application requiring durable, efficient electromagnetic switching. Its robust construction and performance standards make it a dependable choice for engineers and technicians in electronics and electrical industries.
