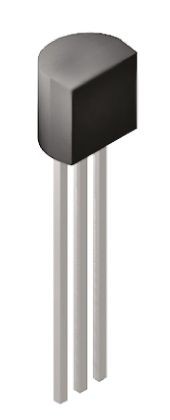

STMicroelectronics Voltage Regulator 30V TO-92 3-Pin L78L08ACZ

STMicroelectronics L78L08ACZ is a three-terminal positive linear voltage regulator designed to provide a stable output voltage from a higher input voltage. Packaged in the compact TO-92 form factor with three pins, it is optimized for through-hole mounting and easy integration into electronic circuits.

Featuring built-in internal current limiting and thermal shutdown, this voltage regulator can safely deliver up to 100mA output current, protecting components from damage under fault conditions.

The device has a low quiescent current of 6mA, contributing to efficient power usage and is capable of withstanding a maximum input voltage of 30V. Its operating temperature range reaches up to 150°C, making it suitable for demanding industrial and commercial applications.

With precise positive polarity output control, the L78L08ACZ is ideal for power management tasks requiring a regulated 8V voltage output. The package dimensions are 4.95mm in length and height, and 3.94mm in width, facilitating compact PCB design.

The regulator delivers up to 100mA output current with internal current limiting and thermal shutdown protection. It features a TO-92 plastic package for through-hole mounting. Quiescent current is maintained at a low 6mA for efficient operation.

Maximum input voltage rating is 30V, ensuring compatibility with various power sources. Can operate reliably up to 150°C maximum temperature. Designed to ensure stable and precise voltage regulation for electronic applications.

Compact size enables integration into space-constrained designs.

This voltage regulator is widely used in various industrial, laboratory, and consumer electronics equipment for power supply stabilization and regulation. It is a critical component for projects needing a regulated positive voltage supply.
