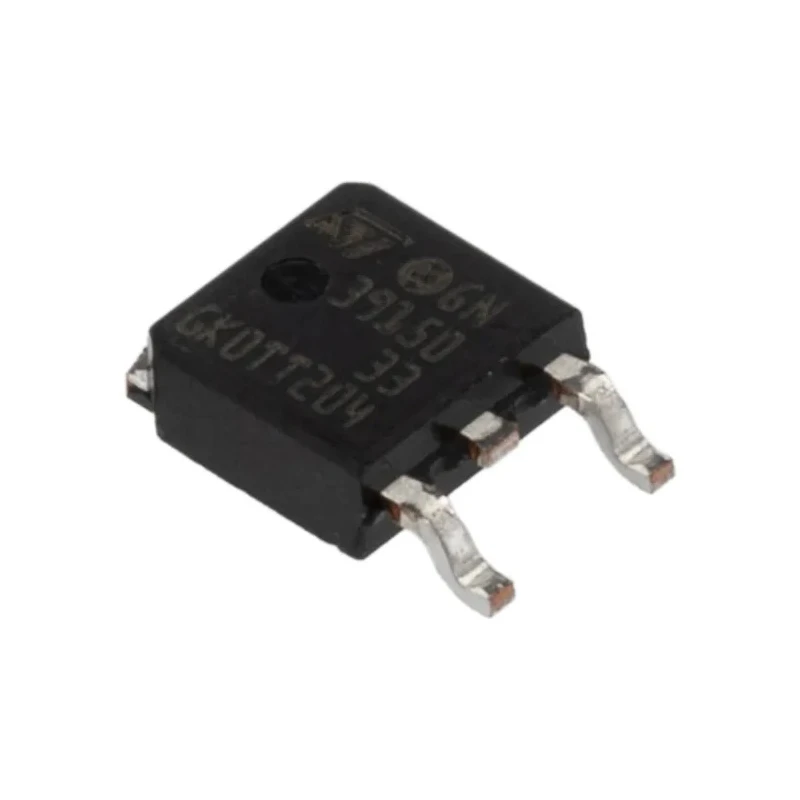

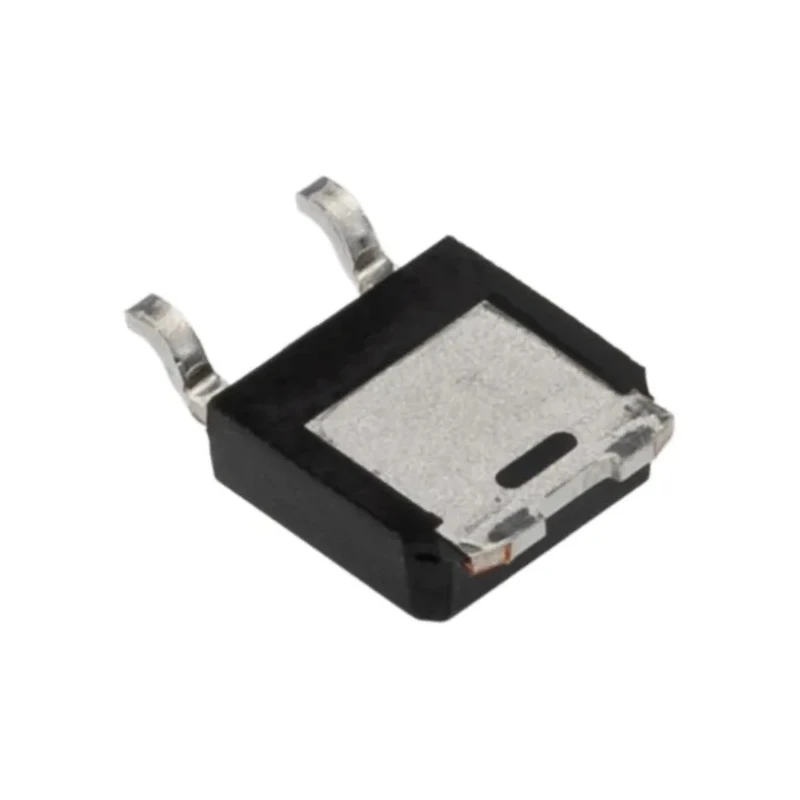

STMicroelectronics Voltage Regulator 6V Surface Mount 3-Pin Low Dropout LD39150DT33-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 6V 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Temperature range | -40 to 125 °C |
| Length | 6.6mm |
| Model | LD39150DT33-R |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LD39150 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 2.5mA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 3 |
| Fixed and ADJ output voltages | 1.8 V, 2.5 V, 3.3 V, ADJ |
Key Features
- Operates from 2.5 V to 6 V input voltage range with low dropout voltage.
- Ultra low quiescent current ensures energy efficiency in low voltage applications.
- Provides a stable output current up to 1.5 A with ±1.5% output voltage tolerance at 25°C.
- Includes logic-controlled electronic shutdown for power saving.
- Thermal and current internal protection limits enhance reliability.
- Available in compact surface mount packages including PPAK, DPAK, and DFN6 (3x3 mm).
- Designed for applications such as DSP and microprocessor power supply, post regulation for switching supplies.
Product Description
STMicroelectronics LD39150DT33-R is a high-performance 6V voltage regulator featuring an ultra low dropout linear design optimized for microprocessor and memory applications. It operates over an input voltage range of 2.5 V to 6 V and delivers a guaranteed 1.5 A output current while maintaining a low dropout voltage (200 mV typical @ 1.5 A load).
This device is fabricated using BiCMOS technology, enabling ultra low quiescent current operation independent of load current, making it ideal for battery-operated and low power systems. The regulator provides precise output regulation with ±1.5% output voltage tolerance at room temperature (25°C).
Additional features include logic-controlled electronic shutdown mode that allows the device to be turned off to save power, as well as internal current and thermal protection circuits for enhanced device safety and longevity. The regulator is stable with ceramic capacitors, facilitating compact and efficient PCB design.
The LD39150DT33-R is available in surface mount packages such as PPAK, DPAK, and DFN6 measuring 3x3 mm, with pin count of 3 pins for easy integration in compact electronic products.
Operates from 2.5 V to 6 V input voltage. Ultra low dropout voltage as low as 40 mV at 300 mA load. Quiescent current as low as 1 μA in off mode, 2.5 mA typical during operation. Fixed and adjustable output voltages: 1.8 V, 2.5 V, 3.3 V and adjustable output voltage options.
Logic-controlled shutdown for power saving. Internal current and thermal limit protections. Suitable for microprocessor and DSP power supply applications. Stable operation with ceramic capacitors.
Applications for this regulator include microprocessor power supply, digital signal processors (DSPs) power supply, post regulation of switching supplies, and use in high efficiency linear regulator circuits. The device supports operating temperatures from -40°C to 125°C, making it suitable for industrial environments requiring high reliability.
The compact package sizes enable use in dense electronic boards where space conservation is critical.
EnvMart offers this high-quality STMicroelectronics Voltage Regulator for use in electronics and electrical power management designs, combining performance, reliability, and efficiency in a small footprint.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within an input voltage range of 2.5 V to 6 V.
This regulator can deliver a guaranteed output current of up to 1.5 A.
The typical dropout voltage is 200 mV at a 1.5 A load, and as low as 40 mV at a 300 mA load.
The typical quiescent current during operation is 2.5 mA, and it can be as low as 1 μA in off mode.
This model provides fixed output voltages of 1.8 V, 2.5 V, and 3.3 V, along with adjustable output voltage options.
It supports operating temperatures from -40°C to 125°C.
It is available in surface mount packages including PPAK, DPAK, and DFN6 measuring 3x3 mm.
This model features a pin count of 3 pins.
It includes internal current and thermal limit protections for enhanced safety and reliability.
Yes, it is optimized for low power systems and battery-operated applications due to its ultra low quiescent current.
It is designed for microprocessor power supply, digital signal processors (DSPs), and post regulation of switching supplies.
The height of this model is 2.4 mm.
