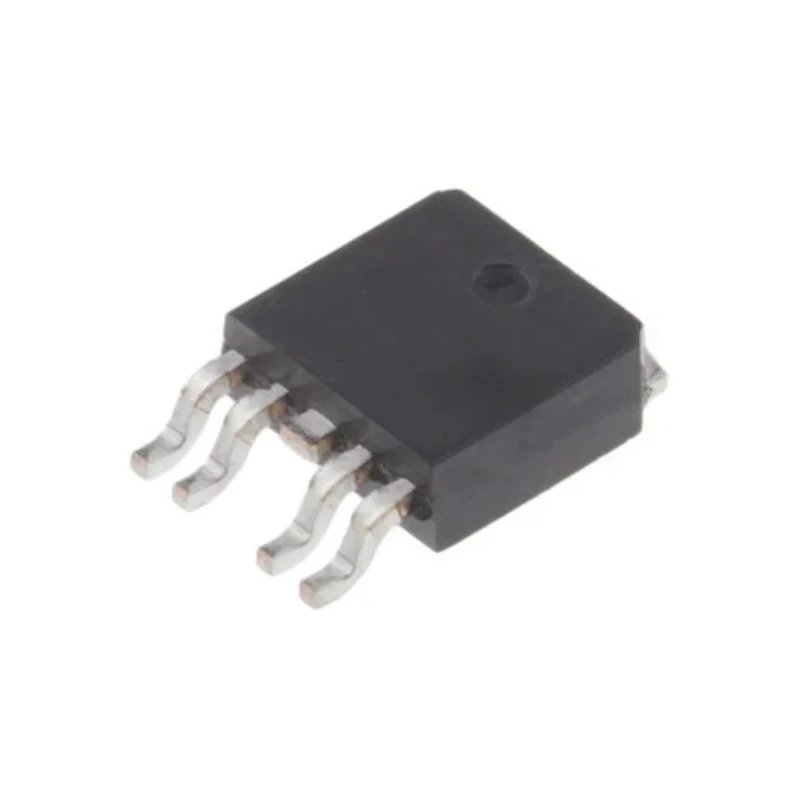

STMicroelectronics Voltage Regulator 13V PPAK 5-Pin LD29080PTR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 13V PPAK 5-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LD29080PTR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LD29080 |
| Maximum Operating Temperature | 125°C |
| Package Type | PPAK |
| Polarity | Positive |
| Maximum Input Voltage | 13V |
| Quiescent Current | 35mA |
| Minimum Input Voltage | 2.5V |
| Pin Count | 5 |
Key Features
- Features very low dropout voltage of typically 0.4V at 800 mA output current.
- Provides stable output voltage with ±1% accuracy at 25 °C.
- Supports guaranteed output current up to 800 mA for various medium load applications.
- Includes internal current and thermal limit protection for safe operation.
- Logic controlled electronic shutdown allows low power consumption when disabled.
- Operates over wide input voltage range of 2.5V to 13V with positive polarity.
- Surface mount package with compact dimensions 6.6mm length, 6.2mm width, and 2.4mm height.
- Suitable for post regulation of switching power supplies and battery powered systems.
Product Description
STMicroelectronics LD29080PTR is a precision 13V voltage regulator designed for medium current and low-dropout applications. Encased in a compact PPAK 5-pin surface mount package, this device ensures efficient voltage regulation with a typical dropout voltage of 0.4 V at 800 mA output current.
Its guaranteed output current capability of up to 800 mA makes it suitable for various industrial, laboratory, and consumer electronics applications including power supply switching post regulation, series power supplies for monitors, VCRs, TVs, computer systems, and portable battery-operated devices.
The device features an internal current and thermal limit protection circuit to prevent damages due to overload and overheating. Logic controlled electronic shutdown functionality facilitates power saving in standby modes.
With a voltage input range from 2.5 V minimum up to 13 V maximum, and polarity set to positive, this regulator supports robust operation in diverse electronic circuits. Its dimensions of 6.6 mm (length) by 6.2 mm (width) by 2.4 mm (height) allow for compact PCB design and surface mounting efficiency.
The LD29080PTR has a maximum operating temperature rating of 125°C, allowing reliable performance in harsh environments. Very low dropout voltage of 0.4 V at 800 mA output. Guaranteed 800 mA output current. Accuracy of ±1% at 25°C.
Internal current and thermal limit protections. Logic controlled electronic shutdown feature. Compact PPAK 5-pin surface mount package. Wide input voltage range from 2.5 V to 13 V. Maximum operating temperature 125°C. Ideal for industrial, commercial, and consumer electronic equipment.
This product is engineered to meet demanding power management requirements and is well-suited for applications in industrial automation, consumer electronics, embedded systems, communication devices, and portable instrumentation.
Explore more Voltage Regulators and power management components to enhance your industrial and commercial electronic designs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LD29080PTR can provide a guaranteed output current of up to 800 mA.
It operates over a wide input voltage range from 2.5 V to 13 V.
The typical dropout voltage is 0.4 V at an output current of 800 mA.
This model has dimensions of 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
It comes in a compact PPAK 5-pin surface mount package.
The maximum operating temperature rating is 125°C.
Yes, it includes internal current and thermal limit protection for safe operation.
The output voltage accuracy is ±1% at 25 °C.
The quiescent current is 35 mA.
This feature allows for low power consumption when the device is disabled.
It is suitable for post regulation of switching power supplies and various medium load applications.
The polarity is set to positive.
