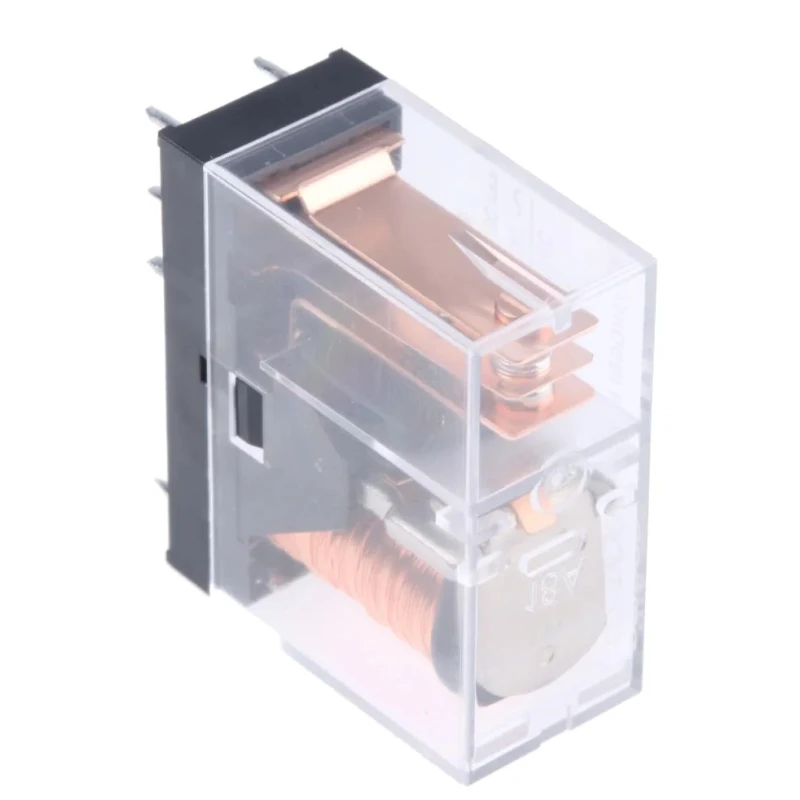

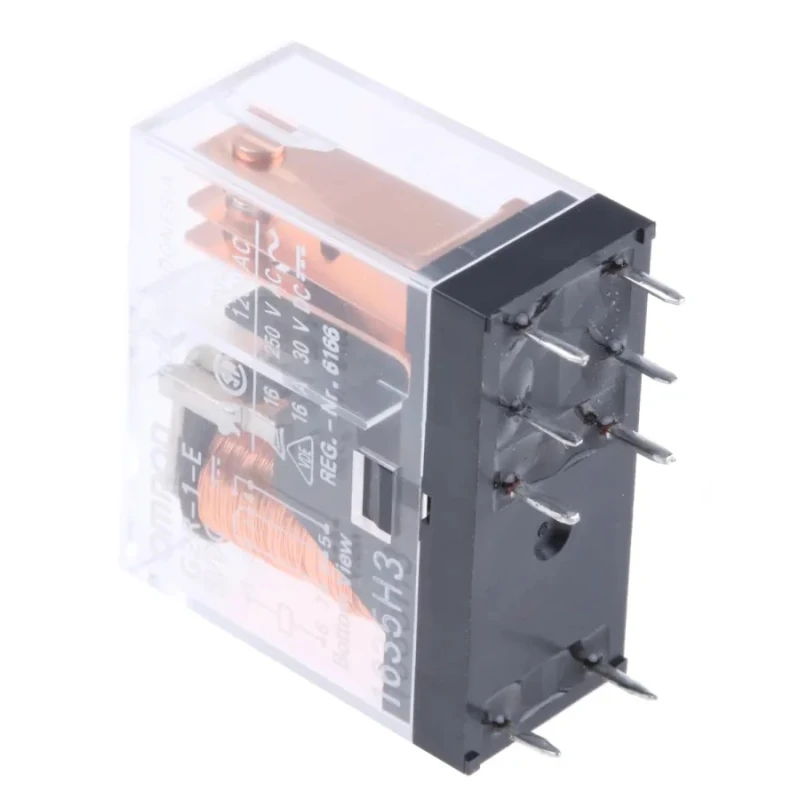

Omron PCB Power Relay, 5V DC Coil Voltage, 16A Switching Current, SPDT Contact Configuration G2R-1-E DC5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-1-E DC5 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 47Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 440V ac |
Key Features
- Designed for PCB mounting with solder terminal type.
- Operates within temperature range of -40°C to 70°C.
- Silver alloy contact material ensures low contact resistance of 30mΩ.
- Switching power rating up to 4kVA; suitable for AC voltage up to 440V and DC voltage up to 125V.

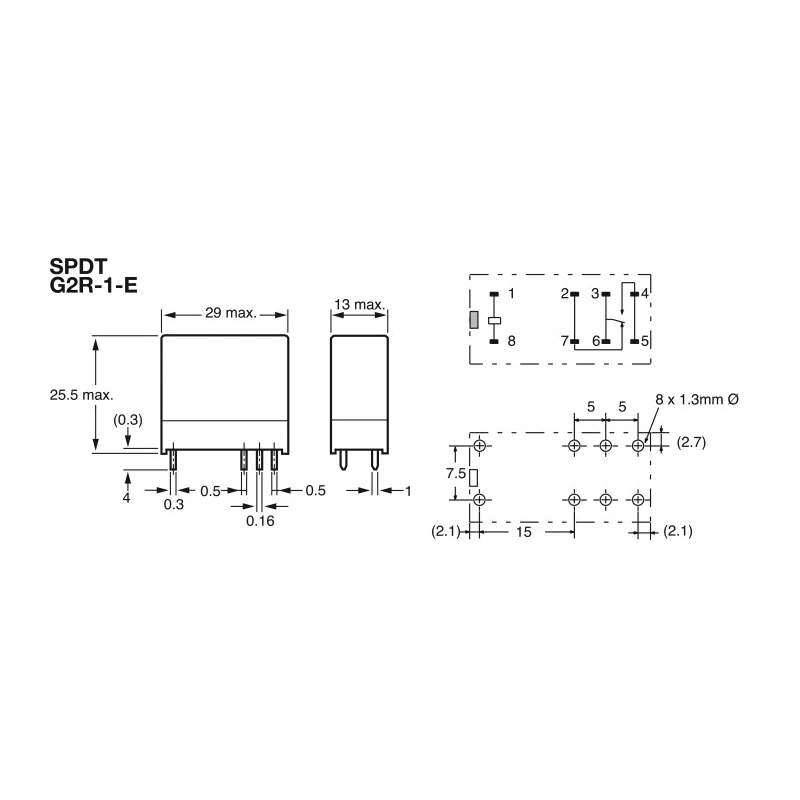

- Compact size with dimensions 29mm length, 25.5mm height, and 13mm width.
- Coil resistance of 47Ω with coil power consumption 0.53VA.
Product Description
Omron G2R-1-E DC5 PCB Power Relay is a general-purpose power relay designed for various industrial and commercial applications. It features a 5V DC coil voltage and supports a switching current of 16A with SPDT (Single Pole Double Throw) contact configuration, making it ideal for reliable circuit switching on printed circuit boards.
The relay is designed to be mounted on PCBs using solder-type terminals. It operates efficiently within a wide temperature range from -40°C minimum to 70°C maximum, ensuring robustness under varying environmental conditions.
Constructed with silver alloy contacts, this relay offers low contact resistance of 30mΩ, which helps maintain stable circuit performance. It handles switching power up to 4kVA and supports AC voltages up to 440V and DC voltages up to 125V, suitable for a variety of control and power switching tasks.
The physical dimensions of this relay are compact, measuring 29mm in length, 25.5mm in height, and 13mm in width, enabling easy integration into diverse electronic assemblies. The coil resistance of 47Ω and coil power consumption of 0.53VA ensure efficient coil operation.
Complying with RoHS standards, the G2R-1 series relays are UL508, CSA22.2, EN 61810-1, SEV, and SEMKO approved, endorsing quality and safety. Applications include industrial automation, electrical control systems, HVAC controls, manufacturing machinery, and instrumentation.
Designed for PCB mounting using solder terminals. Operates reliably from -40°C to 70°C ambient temperature. Silver alloy contacts deliver low resistance and high conductivity. Supports switching power ratings up to 4kVA with AC/DC voltage capabilities.
Compact dimensions for versatile integration in electronic systems. Low coil power consumption of 0.53VA ensures energy efficiency.
Choose Omron relays for dependable performance in industrial, laboratory, and commercial electrical applications. Explore more Power Relay options at EnvMart for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of 16A.
This model operates with a coil voltage of 5V DC.
The relay measures 29mm in length, 25.5mm in height, and 13mm in width.
It operates efficiently within a temperature range of -40°C to 70°C.
The relay features a Single Pole Double Throw (SPDT) contact configuration.
It can handle switching power ratings up to 4kVA.
The contacts are made of silver alloy, ensuring low contact resistance.
The coil resistance is 47Ω.
It complies with RoHS standards and is UL508, CSA22.2, EN 61810-1, SEV, and SEMKO approved.
This relay is designed for PCB mounting using solder terminals.
The relay has a low contact resistance of 30mΩ.
It is suitable for industrial automation, electrical control systems, HVAC controls, manufacturing machinery, and instrumentation.
