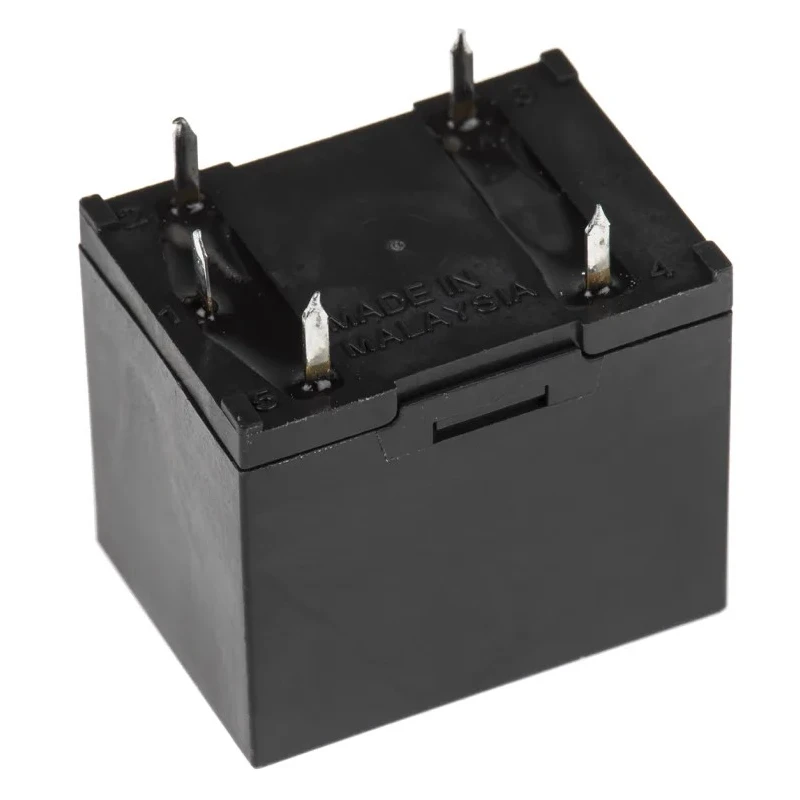

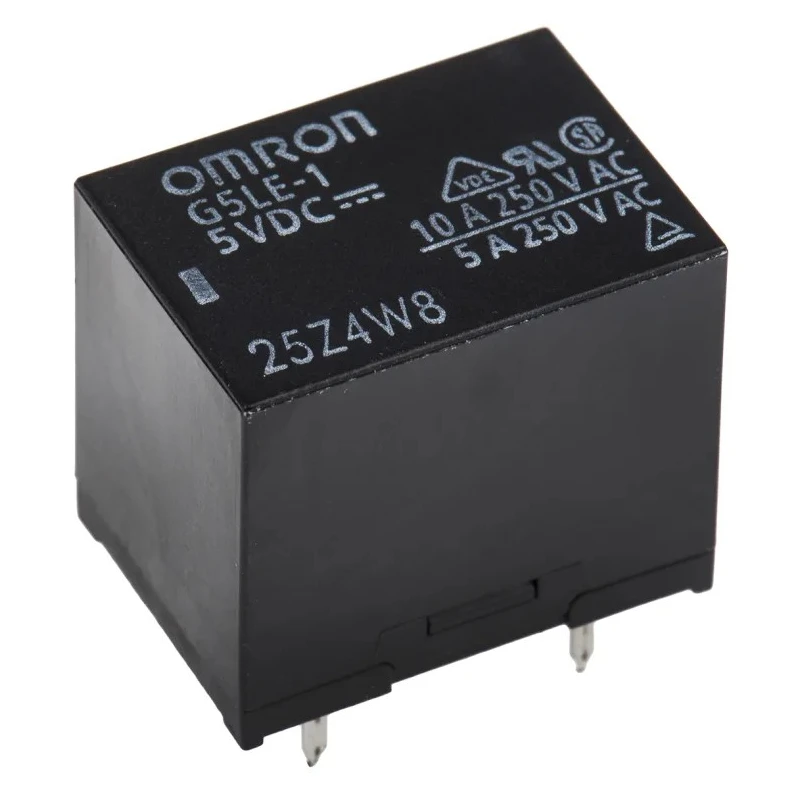

Omron PCB Power Relay 5V DC Coil 10A Switching Current SPDT G5LE-1 DC5

Omron G5LE-1 DC5 PCB Power Relay is a high-quality, non-latching relay designed for use in home equipment, vending machines, and office automation equipment. It features a compact cubic ice cube form factor with universal PCB pin terminals and flux protection, ensuring reliable performance in control circuits and various industrial applications.

The relay operates with a 5 V DC coil voltage, drawing 79.4 mA current with a coil resistance of 63 Ω and a power consumption of approximately 400 mW. Its contact configuration is Single Pole Double Throw (SPDT), supporting high current switching capacity up to 10 A at 120 V AC and 8 A at 30 V DC. The maximum switching voltages are 250 V AC and 125 V DC.

The device is built with silver alloy contacts to provide low contact resistance of 100 mΩ, enhancing conductivity and longevity. It withstands dielectric strength of up to 2000 V AC between coil and contacts and offers robust vibration and shock resistance suitable for industrial environments.

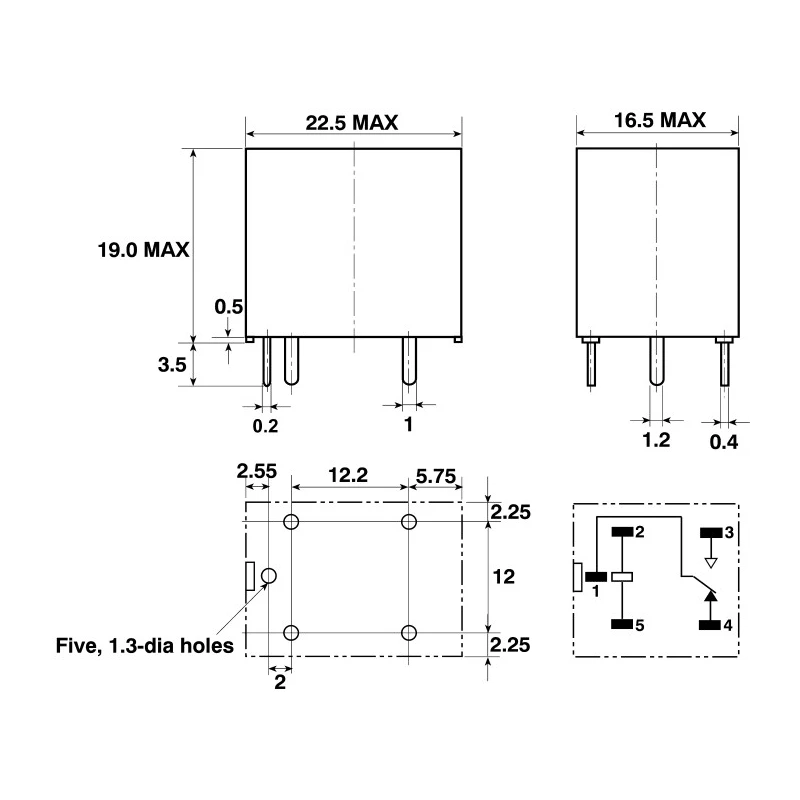

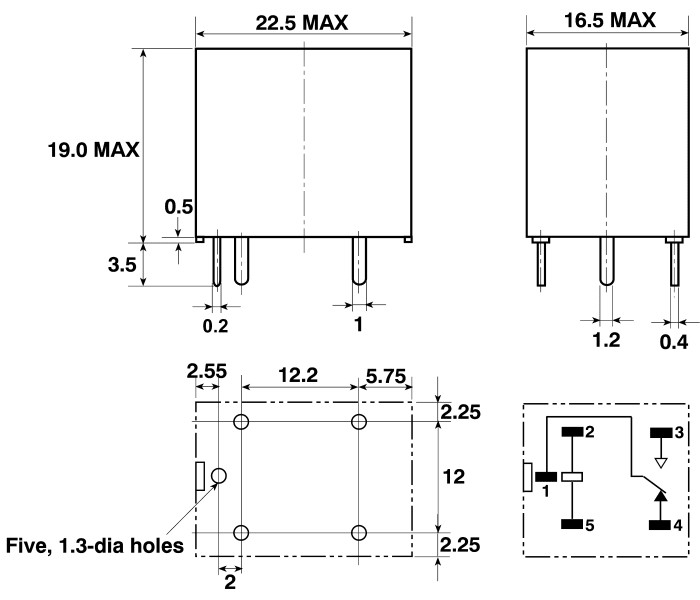

Its operating temperature range spans from -25°C to +85°C, making it suitable for various climate conditions. The relay's compact dimensions measure 22.5 mm in length, 16.5 mm in width, and 19 mm in height, with an approximate weight of 12 grams, allowing easy integration onto PCBs with a standard terminal footprint.

This model complies with RoHS standards ensuring environmental safety. It is ideal for industrial automation, manufacturing, control systems, and other electrical applications requiring reliable Power Relay switching.

Cubic ice cube relay with a compact size for PCB mounting. High switching capacity with SPDT contacts. Robust coil and contact electrical ratings to suit diverse applications. Durable silver alloy contacts for enhanced performance and reliability.
