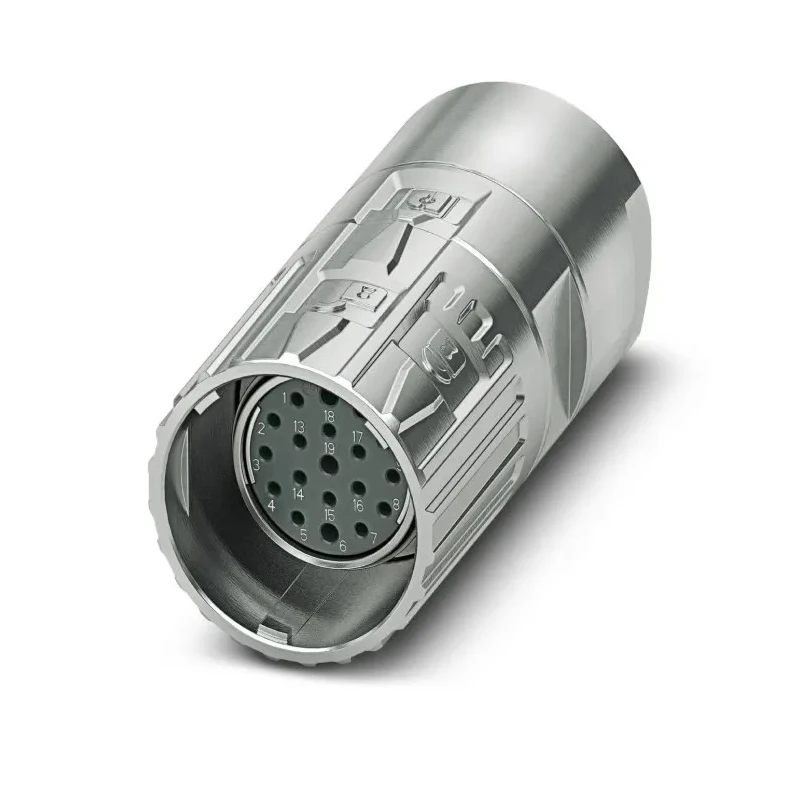

Phoenix Contact Circular Connector, 19 Contacts, Cable Mount, M23 Size, Socket Female Contact, 10A, 150V, IP66/IP68 1629148
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 150V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 10A |
| Model | 1629148 |
| IP Rating | IP66, IP68 |
| Mount Type | Cable |
| Housing Material | Zinc |
| Series | M23 PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 16+2+PE |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 27 mm |
| Mating Type | Lock |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
| Cable connector, straight, shielded | yes, ONECLICK fast locking system, M23, No. of pos.: 16+2+PE, type of contact: Socket, Crimp connection, cable diameter range: 3 mm ... 15 mm |
Key Features
- 19 female socket contacts designed for cable mounting applications.
- Connector size M23 with shell size 27 mm and straight orientation.
- Rated for 10 amperes current and 150 volts operating voltage.
- Robust zinc housing provides durability and corrosion resistance.
- IP66 and IP68 ratings ensure dust and water ingress protection.
- Operates across a temperature range from -40°C to 105°C.
- ONECLICK fast locking system enables quick and secure connections.
- Crimp termination supports cable diameters ranging from 3 mm to 15 mm.
Product Description
Phoenix Contact 1629148 Circular Connector M23 PRO Series is a high-quality industrial circular connector featuring 19 female socket contacts. This cable-mounted connector supports robust electrical performance with a current rating of 10A and a voltage rating of 150V, making it ideal for demanding electronic and power distribution applications.
Constructed with a durable zinc housing, this connector offers excellent mechanical protection and corrosion resistance. The connector shell size of 27 mm and straight orientation ensures easy installation and compatibility with M23 series equipment. It is equipped with the proprietary ONECLICK fast locking system, enhancing connection reliability and ease of use.
This connector is rated IP66 and IP68, guaranteeing strong protection against dust ingress and water immersion, suitable for outdoor and harsh environmental conditions. It operates efficiently across a temperature range from -40°C to 105°C, accommodating extreme operational environments found in industrial, manufacturing, and automation settings.
The termination method is crimp, allowing secure contact attachment to cables with diameters between 3 mm and 15 mm. The pole format is organized as 16+2+PE, supporting multiple power and signal contacts plus protective earth.
19 female socket contacts designed for cable mounting applications. Connector size M23, shell size 27 mm, and straight orientation. Current rating 10A and voltage rating 150V for dependable electrical performance. Robust zinc housing with corrosion resistance.
IP66 and IP68 ingress protection ratings for harsh environments. Operating temperature range from -40°C to 105°C. ONECLICK fast locking system for quick and secure connections. Crimp termination supporting cable diameters 3 mm to 15 mm.
This product is manufactured in Germany and is new in condition, making it suitable for industrial, electronic components manufacturing, power supply setups, machinery automation, and harsh environment deployment.
Explore more in our Electronics & Electricals category, specifically under Circular Connectors and Industrial Circular Connectors for other quality products from Phoenix Contact.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A and a voltage rating of 150V, making it suitable for various electronic and power distribution applications.
It is rated IP66 and IP68, providing strong protection against dust ingress and water immersion, suitable for harsh environmental conditions.
The connector operates efficiently across a temperature range from -40°C to 105°C, accommodating extreme conditions in industrial settings.
This connector uses a crimp termination method, allowing secure attachment to cables with diameters ranging from 3 mm to 15 mm.
The shell size is 27 mm with a straight orientation, facilitating easy installation and compatibility with M23 series equipment.
It features 19 female socket contacts designed for cable mounting applications, organized in a pole format of 16+2+PE.
The housing is made of zinc, providing durability and corrosion resistance for industrial applications.
The ONECLICK fast locking system enhances connection reliability and allows for quick and secure connections during installation.
This product is manufactured in Germany, ensuring adherence to high manufacturing standards.
Yes, with its IP66 and IP68 ratings, this connector is suitable for outdoor and harsh environmental conditions.
It is suitable for industrial, electronic components manufacturing, power supply setups, and machinery automation.
The connector has a coding type of 'N', ensuring compatibility with specific mating connectors.
