Carlo Gavazzi Solid State Relay RGC3P Series, 37 A Load, DIN Rail Mount, 660 V ac Load, 10 V dc Control

Free Delivery in India | Lowest Global Shipping Charges

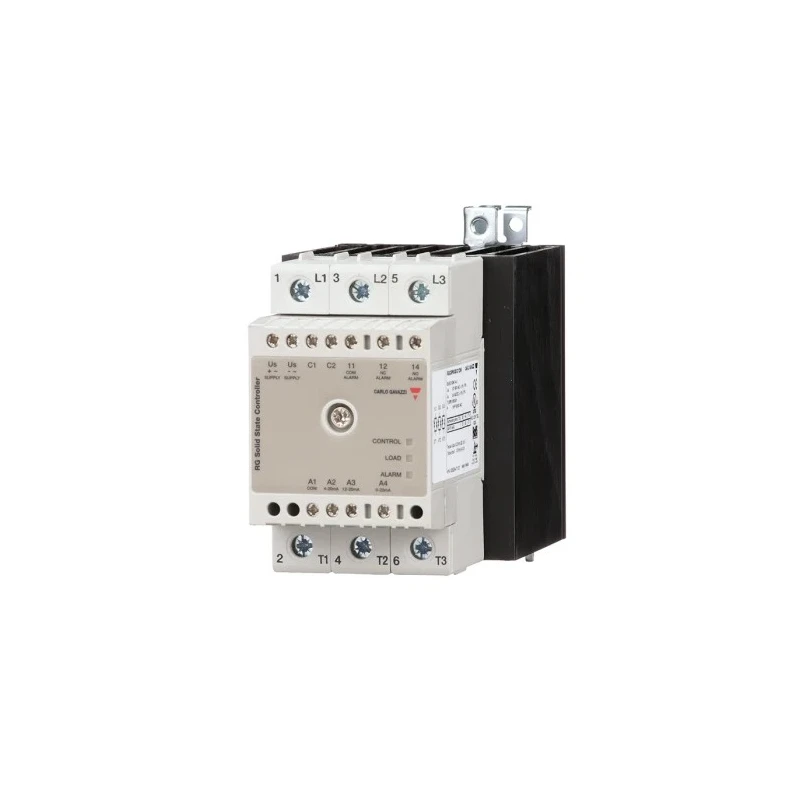

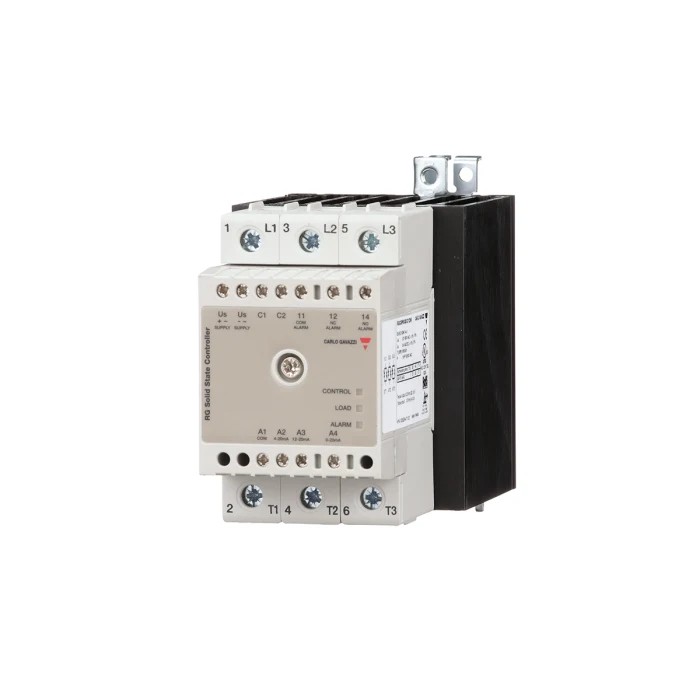

Carlo Gavazzi Solid State Relay RGC3P Series, 37 A Load, DIN Rail Mount, 660 V ac Load, 10 V dc Control

Name: Carlo Gavazzi Solid State Relay RGC3P Series, 37 A Load, DIN Rail Mount, 660 V ac Load, 10 V dc Control
Brand: Carlo Gavazzi
SKU: 158451
Price: 614.19 USD
Availability: InStock



Category Solid State Relay Brand Carlo Gavazzi Condition New

Specifications

Country of Origin	Malta
Brand	Carlo Gavazzi
Height	110mm
Length	72mm
Model	RGC3P
Mount Type	DIN Rail
Output type	Varistor
Series	RGC3P
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Switching Function	Propotional
Maximum Load Current	37A
Standards/Approvals	RoHS
Maximum Load Voltage	660V ac
Minimum Load Voltage	180V ac
Minimum Control Voltage	0V dc
Maximum Control Voltage	10V dc
Off State Leakage Current	5mA
Rated operational current	up to 75AAC
Switching modes	phase angle or distributed full cycles (1, 4 or 16 full cycles)

Key Features

Designed for loads up to 37 A and operational voltages up to 660 V AC.
Operates with control voltages ranging from 0 V to 10 V DC for precise switching.
Features screw terminal connections for secure and easy installation.
Supports proportional switching with phase angle or distributed full cycle modes.
Equipped with integrated varistor protection to safeguard against voltage spikes.
Construction supports operating temperatures from -40°C to 70°C for versatile environments.
Includes soft start with selectable ramp time up to 5 seconds to reduce inrush currents.
DIN rail mountable design allows seamless integration into electrical panels.

Product Description

Carlo Gavazzi RGC3P60V30C1DM Solid State Relay from the RGC3P Series is engineered for industrial and automation control applications requiring reliable and efficient switching.

This device supports a maximum load current of 37 A and can handle up to 660 V AC load voltage, with a minimum load voltage of 180 V AC. It accepts control voltages between 0 V and 10 V DC, allowing for versatile signal inputs.

The relay uses screw terminals for robust electrical connections and features a proportional switching function suitable for phase angle or distributed full cycles (1, 4, or 16 full cycles). It includes a soft start feature enabling a selectable ramp time up to 5 seconds, which helps minimize electrical stress and prolong component life.

Temperature tolerance ranges from -40°C to 70°C making it suitable for a variety of industrial environments. Integrated varistor output protection is included to guard against transient voltages and spikes. Safety monitoring includes an EMR output for alarm indication, which helps detect SSR and load malfunctions promptly.

The compact relay measures 72 mm in length and 110 mm in height and is designed for DIN rail mounting, facilitating easy installation within control panels and electrical enclosures.

This relay series is ideal for use in industrial automation, process control systems, HVAC controls, and manufacturing instrumentation. Designed for up to 660 VAC rated operational voltage and up to 75 AAC rated operational current.

Control inputs support a wide range of signals including 0-20 mA, 4-20 mA, 12-20 mA, 0-5 V, 1-5 V, and 0-10 V. Soft start reduces inrush current and electrical stress. Integrated varistor protection for output circuit. Monitoring functionality for SSR and load integrity.

EMR output for alarm signaling. DIN rail mountable for panel integration. RoHS compliant, ensuring environmental safety standards. Explore similar Carlo Gavazzi Solid State Relays and other reliable automation control devices in the EnvMart catalog to suit various industrial and laboratory applications.
