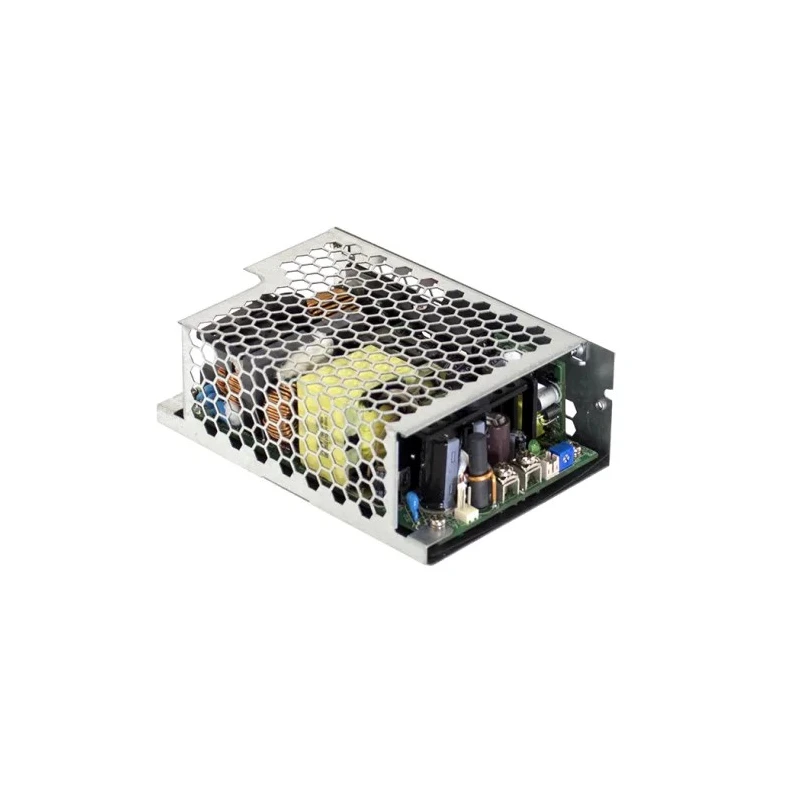

MEAN WELL RPS-500-18-C Switching Power Supply 18V DC 500.4W PCB Mount 27.8A Output Efficiency 92.5% RPS-500-18-C

MEAN WELL RPS-500-18-C is a high-performance switching power supply designed for industrial and electronic applications requiring stable 18V DC output with up to 500.4W power and a maximum output current of 27.8A. This compact PCB mount unit measures 130mm in length, 43mm in width, and 43mm in depth, fitting standard 5" by 3" footprints.

Operating over a wide input voltage range from 80V to 264V AC and up to 370V DC, it supports various power sources worldwide. The device works efficiently in temperature extremes from -30°C to 70°C, making it suitable for harsh and demanding environmental conditions.

With an efficiency of 92.5%, the RPS-500-18-C reduces energy waste and minimizes heat generation, enhancing reliability and longevity. It integrates comprehensive protection features including short circuit, overload, over voltage, and over temperature protection, ensuring operational safety and system integrity.

The power supply complies with multiple global safety standards such as UL 62368-1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, and CSA C22.2 No. 62368-1, among others. Its extremely low leakage current below 220μA allows its use in both Class I (with FG) and Class II (no FG) system designs.

The RPS-500 series includes enclosed style variants (-C/TF/SF), with the RPS-500-18-C model offering enhanced safety protection. This product originates from China, carries a new condition designation, and includes a 3-year warranty for dependable use.

Typical industrial, laboratory, and manufacturing applications benefit from its reliable output and protective features, suitable for power supply needs in electronics manufacturing, automation, and control systems.

Supports wide input voltage range from 80V to 264V AC and 370V DC. High efficiency of 92.5% for reduced energy consumption. Comprehensive protections safeguard system stability and safety. Compact PCB mount design enables space-saving installations.

Certified to multiple international safety standards ensures global compliance. Extensive operating temperature range for diverse environmental conditions. Class I and Class II system compatible with low leakage current.
