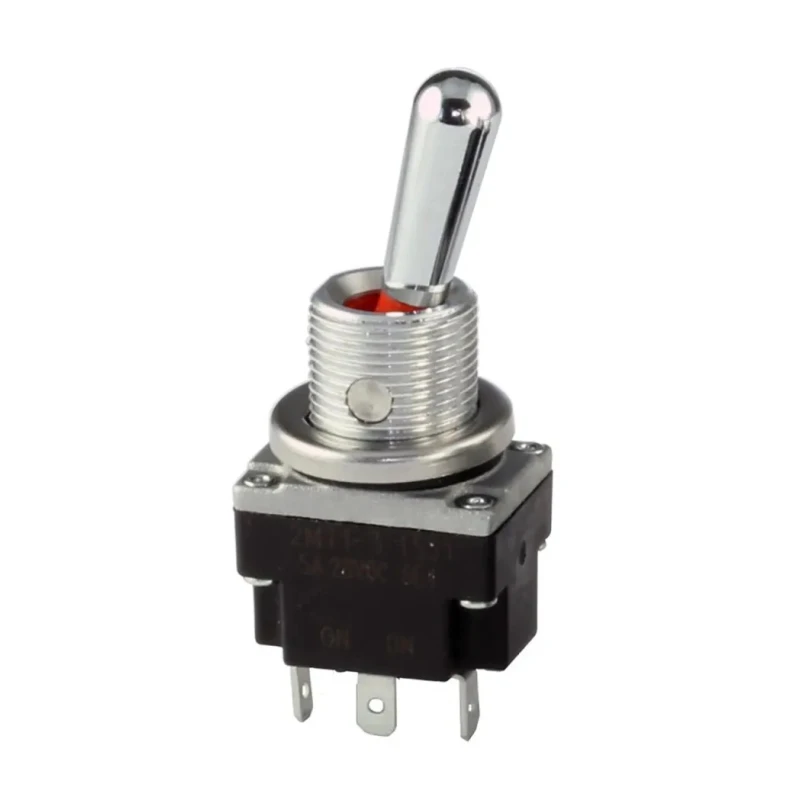

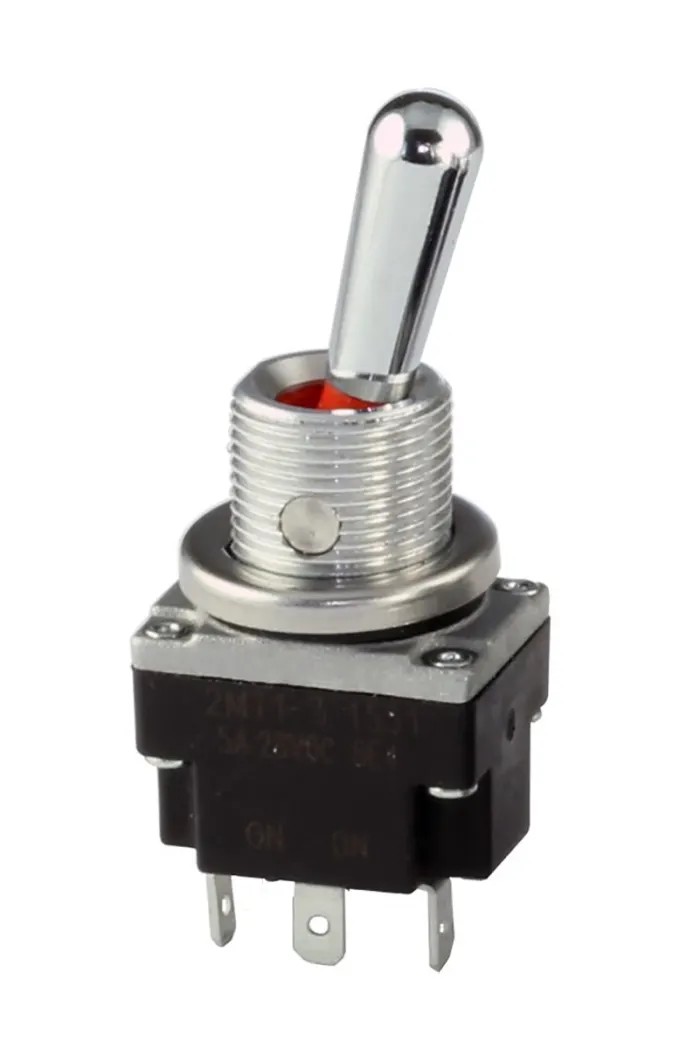

Honeywell Technologies Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc, 28 V ac 1MT1-8

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc, 28 V ac 1MT1-8

Name: Honeywell Technologies Toggle Switch Panel Mount On-On SPDT Solder Terminal 28 V dc, 28 V ac 1MT1-8
Brand: Honeywell Technologies
SKU: 157766
Price: 52.09 USD
Availability: InStock



Category Toggle Switch Brand Honeywell Technologies Condition New

Specifications

Country of Origin	China
Brand	Honeywell Technologies
Height	26mm
Length	15mm
Model	1MT1-8
IP Rating	IP67, IP68
Width	2mm
Mount Type	Panel
Series	MT
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Panel Cutout Size	12.45 (Dia.) x 11.43 mm
Terminal type	Solder
Standards/Approvals	UL, CSA, CE
Switch Operation	On-On
Actuator Length	16.87mm
Contact DC Voltage	28V dc
Switch Contact Current	5A
Mechanical Life	100000Cycles
Contact AC Voltage	28V ac

Key Features

Designed for rugged, cost-effective switch applications with high mechanical life.
Features IP67 and IP68 rating for protection against dust and water ingress.
Compact panel cutout size of 12.45 mm diameter by 11.43 mm.
Operates reliably from -40°C to 85°C temperature range.
Supports 5A switch contact current with UL, CSA, and CE certifications.
Miniature size enables use in control boxes or tight panel spaces.
Silver contacts provide stable electrical switching performance.
Well suited for harsh outdoor and industrial environments.

Product Description

Honeywell Technologies 1MT1-8 Toggle Switch is a miniature, panel mount switch featuring On-On SPDT operation with solder terminals and silver contacts. It is rated for both 28 V dc and 28 V ac, making it versatile for various electrical applications. This toggle switch is designed to withstand demanding industrial environments with IP67 and IP68 ingress protection, ensuring reliable operation under exposure to dust, water spray, and vibration.

The switch comes in a compact form factor with panel cutout dimensions of 12.45 mm diameter by 11.43 mm, actuator length of 16.87 mm, and overall dimensions of 26 mm height, 15 mm length, and 2 mm width. It features a mechanical life expectancy of 100,000 cycles, providing long service life. Operating temperature range from -40°C up to 85°C allows usage in extreme conditions.

This MT Series toggle switch is well suited for industrial automation, electrical control panels, and outdoor equipment applications including cranes, boom trucks, and concrete pumping machinery. The sealing between toggle lever and bushing, and cover and case, protects internal contacts from environmental damage and contamination. Switches with metal or plastic levers are designed for ease of use even when wearing gloves.

Rugged miniature toggle switch with On-On SPDT operation. Panel mount with precise cutout dimensions for easy installation. Rated contact current of 5 A at 28 V dc/ac voltages. IP67 and IP68 ratings for harsh environment durability.

Mechanical life of 100,000 cycles ensures reliability. Wide operating temperature range for extreme conditions. Sealed design to prevent ingress of dust and moisture. Suitable for material handling, concrete pumping, and crane controls.

Designed for gloved-hand operation with lever customization.

Country of origin: China. Honeywell Technologies MT Series toggle switches deliver reliable performance in challenging industrial and automation settings. This product integrates well into panels requiring durable toggle control switches with solder terminals and compact size design.
