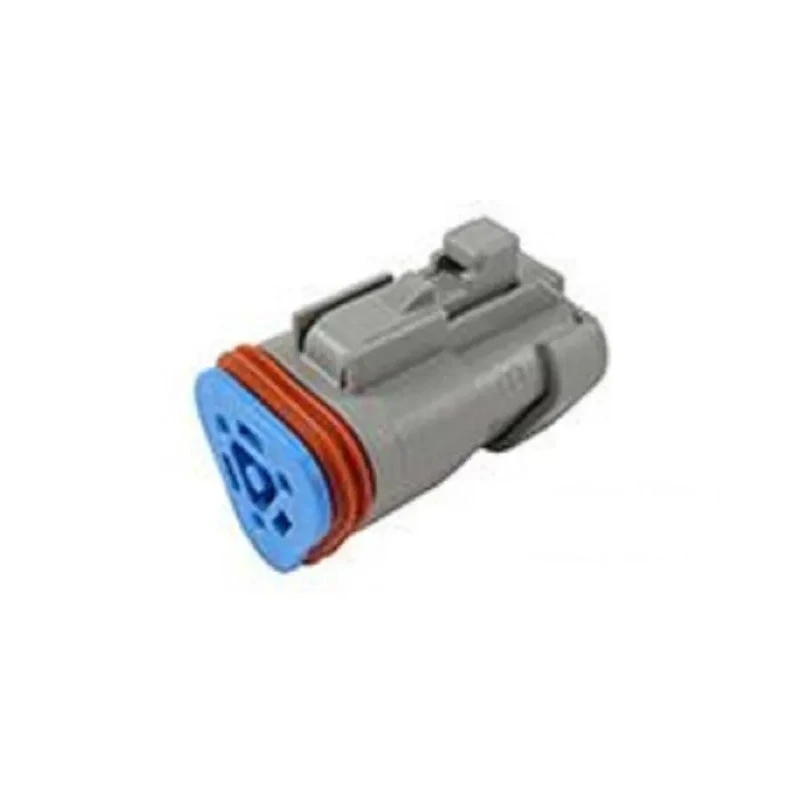

Deutsch DT Automotive Connector Male Grey Flange 3 Way Crimp Termination DT06-3S-P006

Free Delivery in India | Lowest Global Shipping Charges

Deutsch DT Automotive Connector Male Grey Flange 3 Way Crimp Termination DT06-3S-P006

Name: Deutsch DT Automotive Connector Male Grey Flange 3 Way Crimp Termination DT06-3S-P006
Brand: Deutsch
SKU: 156338
Price: 8.27 USD
Availability: InStock



Category Automotive Connector Brand Deutsch Condition New

Specifications

Country of Origin	Mexico
Brand	Deutsch
Colour	Grey
Current	13A
Height	24.71mm
Model	DT06-3S-P006
Depth	44.65mm
IP Rating	IP68
Width	21.15mm
Gender	Male
Mount Type	Flange
Housing Material	Polyamide
Series	DT
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Plug Housing
Minimum Operating Temperature	-55°C
Number of Rows	3
Standards/Approvals	EU RoHS, EU ELV
Contact Plating	Steel with Zinc
Number of Contacts	3

Key Features

Designed for use with size 16 DEUTSCH contacts electronics.
Rated for continuous current of 13 amps.
Constructed with a grey polyamide housing for durability.
Features a flange mount type and integrated latch for secure mating.
Meets IP68 rating for protection against dust and water ingress.
Operates reliably between -55°C and 125°C temperature range.
Contact plating is steel with zinc for corrosion resistance.
Compliant with EU RoHS and EU ELV environmental standards.

Product Description

The Deutsch DT06-3S-P006 is a high-quality male Automotive Connector with a grey flange housing designed for 3 contacts, suitable for crimp termination. Deutsch DT connectors are widely recognized for their reliability in automotive electrical systems, providing secure and weatherproof connections that withstand harsh environmental conditions.

This connector features a durable polyamide housing combined with steel with zinc contact plating to ensure long-lasting corrosion resistance and electrical integrity. Its flange mount and integrated latch simplify secure assembly in various industrial and automotive applications.

The connector supports a continuous current rating of 13 amps and is engineered for a broad operating temperature range from -55°C to 125°C, making it ideal for diverse environments, including automotive, agricultural machinery, and industrial equipment wiring.

It meets high IP68 ingress protection standards, offering resistance against dust and water intrusion, ensuring dependable performance under challenging field conditions. The product complies with strict EU RoHS and EU ELV directives, aligning with modern environmental and safety standards.

The DT series housings, including this 3 contact variant, are compatible with size 16 DEUTSCH contacts, available in multiple pin counts ranging from 2 to 12 contacts for various application needs.

Designed for use with size 16 DEUTSCH contacts electronics. Rated for continuous current of 13 amps. Constructed with a grey polyamide housing for durability. Features a flange mount type and integrated latch for secure mating.

Meets IP68 rating for protection against dust and water ingress. Operates reliably between -55°C and 125°C temperature range. Contact plating is steel with zinc for corrosion resistance. Compliant with EU RoHS and EU ELV environmental standards.

Manufactured in Mexico ensuring quality and manufacturing standards.

This connector is ideal for industrial, automotive, agricultural, construction, and other commercial electrical applications requiring robust and secure electrical wiring solutions.
