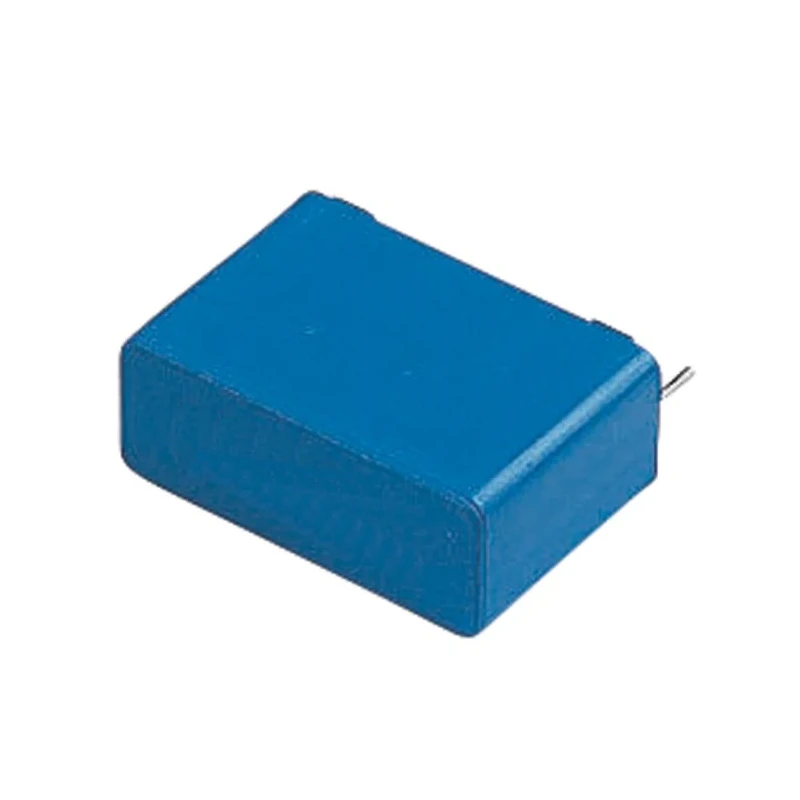

TDK Film Capacitor Through Hole Mount 100 nF Capacitance 160V AC 250V DC Rated Voltage B32521C3104J000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole Mount 100 nF Capacitance 160V AC 250V DC Rated Voltage B32521C3104J000



Category Film Capacitors Brand TDK Condition New

Specifications

Country of Origin	Brazil
Brand	TDK
Height	7mm
Length	13mm
Model	B32521C3104J000
Width	4mm
Mount Type	Through Hole
Series	B32521
Maximum Operating Temperature	125°C
Capacitance	100nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	10mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Constructed with stacked-film and wound technology for high pulse strength.
Plastic case sealed with epoxy resin meeting UL 94 V-0 flammability standard.
Complies with AEC-Q200 Rev D automotive standard for high contact reliability.
Operates at a maximum temperature of 125°C, suitable for demanding environments.
Lead diameter is 0.6mm for secure through hole connection.
Certified with UL and RoHS standards to ensure safety and environmental compliance.
Typical uses include blocking, coupling, decoupling, bypassing, and RFI suppression in automotive circuits.

Product Description

TDK B32521C3104J000 is a high-quality film capacitor with a capacitance of 100 nF, designed for through hole mounting in electronic circuits. It supports a rated AC voltage of 160V and rated DC voltage of 250V, making it suitable for a wide range of automotive and industrial applications.

The capacitor is manufactured using stacked-film and wound technology, providing excellent pulse strength and contact reliability. Its plastic casing is sealed with epoxy resin that complies with UL 94 V-0 for flame retardancy, ensuring safety in harsh operating conditions.

It meets the AEC-Q200 Rev D automotive standard, confirming its robustness and reliability within automotive electronic environments. The device dimensions are a compact length of 13mm, width of 4mm, and height of 7mm with a lead pitch of 10mm and lead diameter of 0.6mm, enabling easy installation on through hole PCBs.

This film capacitor performs reliably up to a maximum operating temperature of 125°C, making it applicable for many demanding industrial, automotive, and telecommunications applications. It is certified under UL and RoHS directives, ensuring compliance with essential safety and environmental regulations.

Typical applications include general purchase blocking, coupling, decoupling, bypassing functions, and radio frequency interference (RFI) suppression within automotive circuits. High pulse strength due to stacked-film and wound technology.

Plastic case with epoxy resin sealing rated UL 94 V-0. Certified to automotive AEC-Q200 Rev D standard. Ultracompact dimensions with 10 mm lead pitch for through hole mounting. Rated for 160V AC and 250V DC operation. Maximum operating temperature of 125°C.

UL and RoHS certifications ensure safety and environmental compliance. Excellent for automotive and industrial electronics use.

This TDK film capacitor is sourced from Brazil and supplied in packaging ready for insertion into machinery, facilitating improved production efficiency. Explore more related Film Capacitors and electronic components at EnvMart for your electronics manufacturing or design needs.
