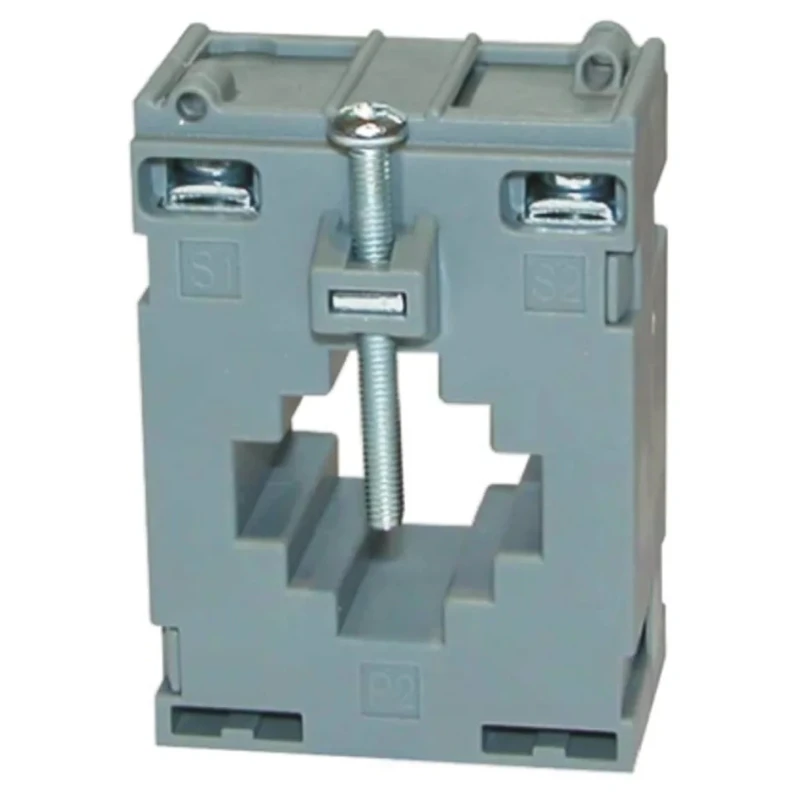

HOBUT CT143 Series Current Transformer 120 A 24mm Bore

HOBUT CT143M120/5-2.5/1-00 Current Transformer is a compact, precision instrument designed for electrical current measurement and conversion in industrial and process control applications. It is engineered to handle a primary current rating of 120 A with a 5 A standard secondary current output, making it suitable for various automation and monitoring systems.

This model features a 24 mm bore diameter compatible with busbars or cables, ensuring easy integration into existing electrical infrastructures. The device complies with key international standards including BS EN 60044-1, IEC 185, IEC 60044-1, and BS 7626, which guarantee high reliability and safety in operation.

The construction includes a DIN rail mounting clip and built-in sealable terminal covers, providing secure and protected electrical connections. Mounting feet and busbar screws are supplied with the product for ease of installation. Its compact dimensions (70 mm length, 49 mm width, 45 mm depth) allow use in restricted spaces.

Designed for challenging environments, it operates efficiently within an ambient temperature range from -30 to 85 degrees Celsius and is rated for continuous current at 1.2 times its nominal rating, thus ensuring durability and stability during extended use.

Manufactured in the United Kingdom, this current transformer represents a robust solution for industrial automation, electrical panel control, process control, power distribution, and monitoring tasks. Its design facilitates safe and accurate current measurement essential for maintaining system performance and preventing overloads.

Suitable for primary currents up to 120 A with a 5 A secondary output. Compact design with dimensions 70 mm length, 49 mm width, and 45 mm depth. Equipped with DIN rail mounting and built-in sealable terminal covers. Conforms to industrial standards BS EN 60044-1, IEC 185, IEC 60044-1, and BS 7626.

Operational temperature range from -30°C to 85°C for versatile environmental use. Rated system voltage of 0.72/3 kV ensuring safe performance under rated electrical conditions. Designed for continuous current operation at 1.2 times the rated primary current.

Manufactured in the United Kingdom ensuring quality and reliability. Includes mounting feet and busbar screws for straightforward installation.
