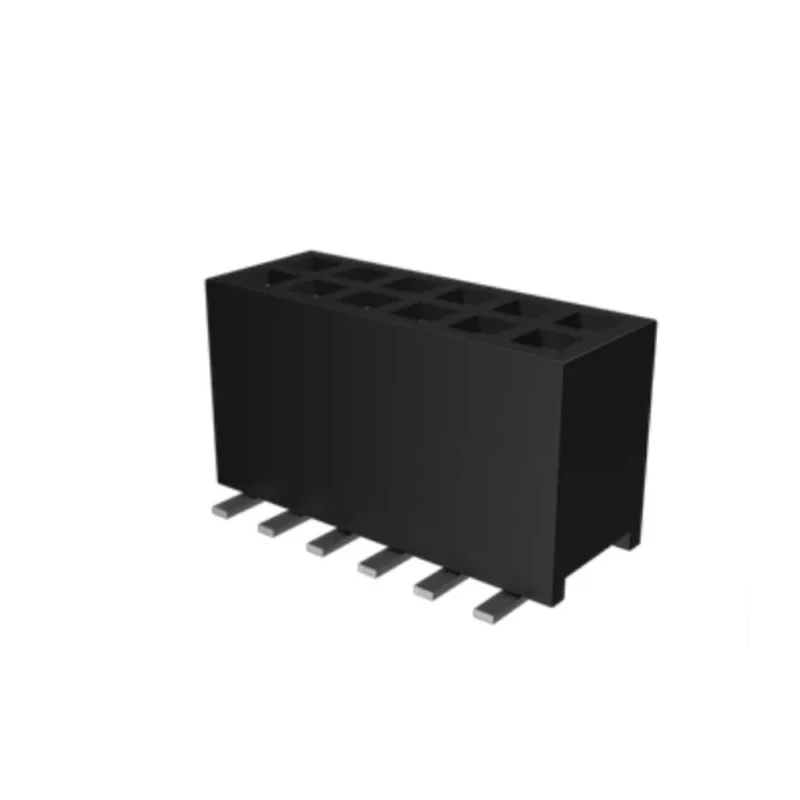

Amphenol Communications Solutions Minitek Series Straight Surface PCB Socket 14-Contact 2 Row 1.27 mm 20021321-00014C1LF

Amphenol Communications Solutions 20021321-00014C1LF is a Minitek Series straight surface PCB socket designed with 14 contacts arranged in 2 rows, offering a compact 1.27 mm pitch suitable for board-to-board connection systems in electronic assemblies.

Engineered for performance, this PCB socket supports a current rating of 12 A and a voltage rating of 125 V, making it suitable for various industrial and commercial electronic applications. Its bronze contacts plated with gold ensure excellent conductivity and corrosion resistance, while the surface mount solder termination facilitates reliable and efficient PCB assembly processes.

The socket complies with the Minitek127® standard, which is known for its modular and space-saving design compared to larger pitch systems like 2.54 mm and 2.00 mm. Its operating temperature range of -55°C to 125°C allows reliable function in harsh environments and diverse operational conditions.

This model features a straight orientation and is halogen free, supporting environmentally conscious manufacturing. With no explicit certifications listed, it is designed primarily for board-to-board connector systems requiring compact, economical, and durable connector solutions.

The socket features a 1.27 mm pitch following the Minitek127® standard for modular board-to-board connectors. It supports up to 12 A current and a voltage of 125 V. Constructed with bronze contact material plated in gold for reliable connectivity.

The socket orientation is straight and it is a surface mount type optimized for soldering applications. Designed to operate in temperature ranges from -55°C to 125°C, ensuring durability under various conditions. It has 14 contacts arranged in 2 rows for compact and reliable board interfacing.

The component is halogen free and does not carry specific standards or certifications. Suitable for industrial electronics applications requiring efficient board-to-board connection solutions. Manufactured in China, ensuring consistent quality control and production standards.

EnvMart offers a broad range of electronic components including reliable PCB Sockets like this Minitek series model, ideal for engineering and manufacturing industries focused on quality and performance.
