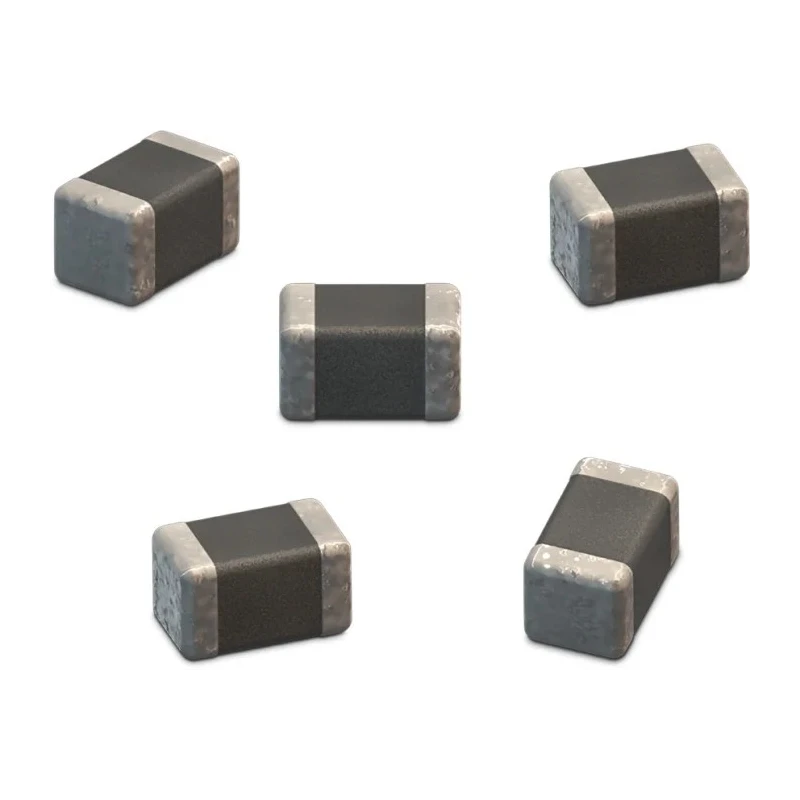

Wurth Elektronik 22 pF Multilayer Ceramic Capacitor 16V DC ±5 % Tolerance Surface Mount 0603 WCAP-CSGP 885012006019

Wurth Elektronik model 885012006019 is a high-performance 22 pF Multilayer Ceramic Capacitor with a 16V DC voltage rating and ±5 % tolerance, designed for surface mount technology (SMT) applications in electronic circuits. It uses a C0G dielectric which offers excellent capacitance stability, low loss, and minimal aging making it suitable for precision filtering and timing applications.

The capacitor is housed in a 0603 package size with compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, compatible with standard SMT assembly including reflow and wave soldering processes. Its termination consists of copper/nickel/tin (Cu/Ni/Sn) plating, ensuring robust solderability and reliable electrical connection.

This component has a wide operating temperature range from -55°C to 125°C, making it ideal for use in automotive, industrial, and general electronic applications where temperature stability is critical. It complies with RoHS environmental standards, supporting sustainable manufacturing.

Capacitor characteristics include a Class I suppression class with NP0 ceramic characteristics, ensuring high capacitance stability and minimal temperature coefficient. Though it does not meet automotive standards, it is suitable for various electronics manufacturing and design needs.

Manufactured in Taiwan, Province Of China, this capacitor is part of the WCAP-CSGP series from Wurth Elektronik, renowned for quality and performance in multilayer ceramic capacitors.

Capacitance of 22 pF ensuring precise signal filtering. High stability C0G dielectric providing excellent temperature characteristics. Surface mount type with 0603 case size compatible with reflow and wave soldering. Wide operating temperature range from -55°C to 125°C for demanding environments.

Termination material Cu/Ni/Sn ensures reliable solder joints. Complies with RoHS standards for environmental safety. Class I suppression class delivering minimal aging and high capacitance stability. Compact dimensions for PCB space saving.

This Wurth Elektronik Multilayer Ceramic Capacitor is ideally suited for professional electronics manufacturing, laboratory instrumentation, automotive electronics (non-automotive grade), telecommunications, and general industrial use. Explore more electronic components and passive parts on EnvMart for reliable product sourcing.
